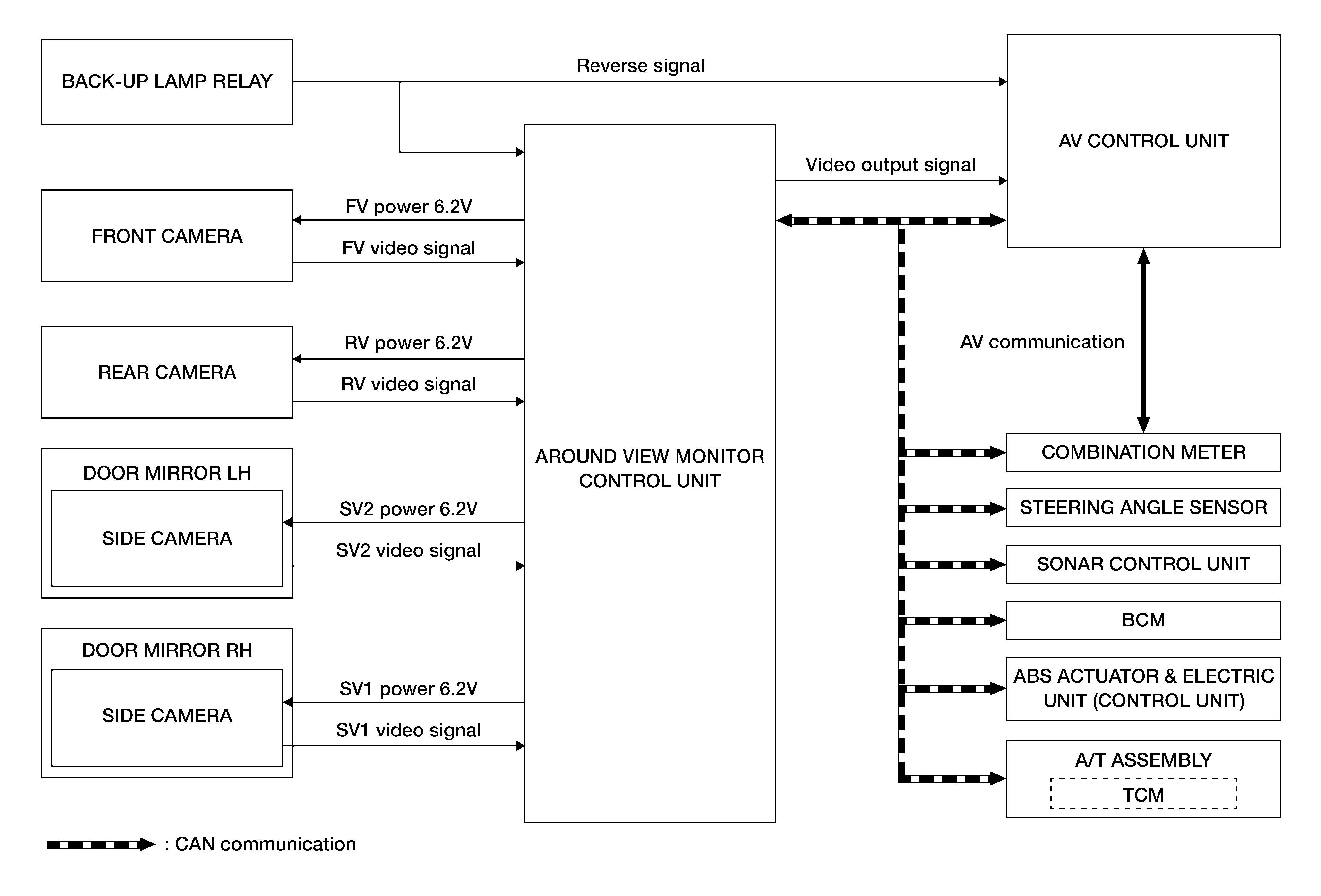

System Diagram

WARNING: This page is about a different car, the 2022 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
GNSAWNIA0789GB-789Courtesy of NISSAN NORTH AMERICA, INC.

Around View Monitor Control Unit Input Signal (CAN Communication)

Transmit unit

Signal name

ABS actuator and electric unit (Control unit)

Wheel speed signals

A/T assembly (TCM)
  • Transmission range indication signal
  • Tow mode indicator request signal

AV control unit
  • Camera switch press signal
  • Camera OFF request signal
  • MOD switch press signal

BCM
  • Door switches state signal
  • Trailer presence signal

Combination meter
  • Setting change request signal
  • Hand brake switch signal

Sonar control unit
  • Sonar system mode status signal
  • Sonar display request status signal

Steering angle sensor

Steering angle signal
