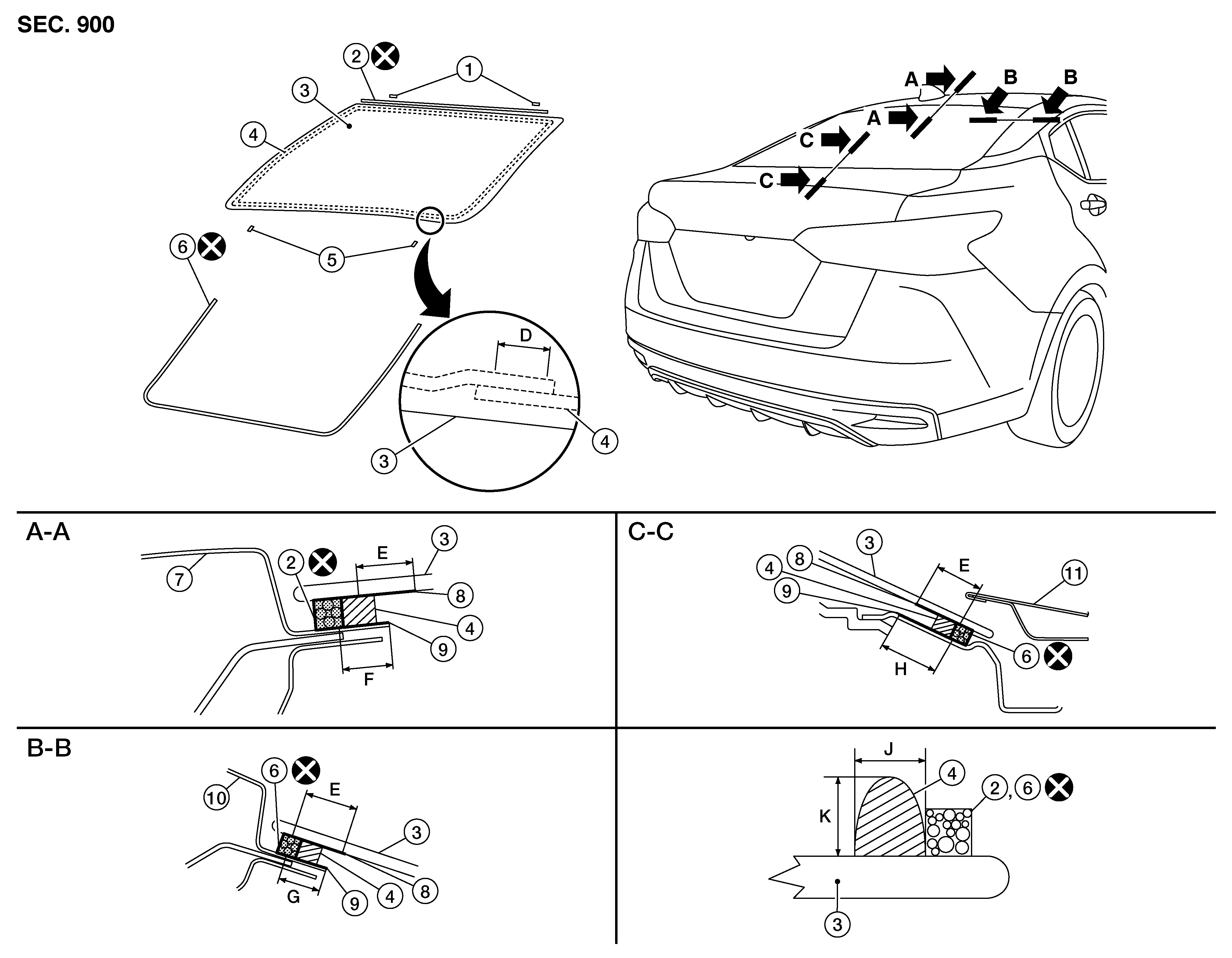

Exploded View
Unit: mm (in)
|
1. |
Spacer |
2. |
Dam sealant rubber (upper) |
3. |
Rear window glass |
|
4. |
Adhesive |
5. |
Spacer (lower) |
6. |
Dam sealant rubber (lower) |
|
7. |
Roof panel |
8. |
Glass primer |
9. |
Body primer |
|
D. |
30 mm (1.2 in) |
E. |
15.0 mm (0.6 in) |
F. |
13.0 mm (0.5 in) |
|
G. |
13.0 - 15.0 mm (0.5 - 0.6 in) |
H. |
27.3 mm (1.0 in) |
J. |
7 + 2.0 mm (0.2 + 0.07 in) |
|
K. |
12 + 2.0 mm (0.4 + 0.07 in) |
