Exploded View

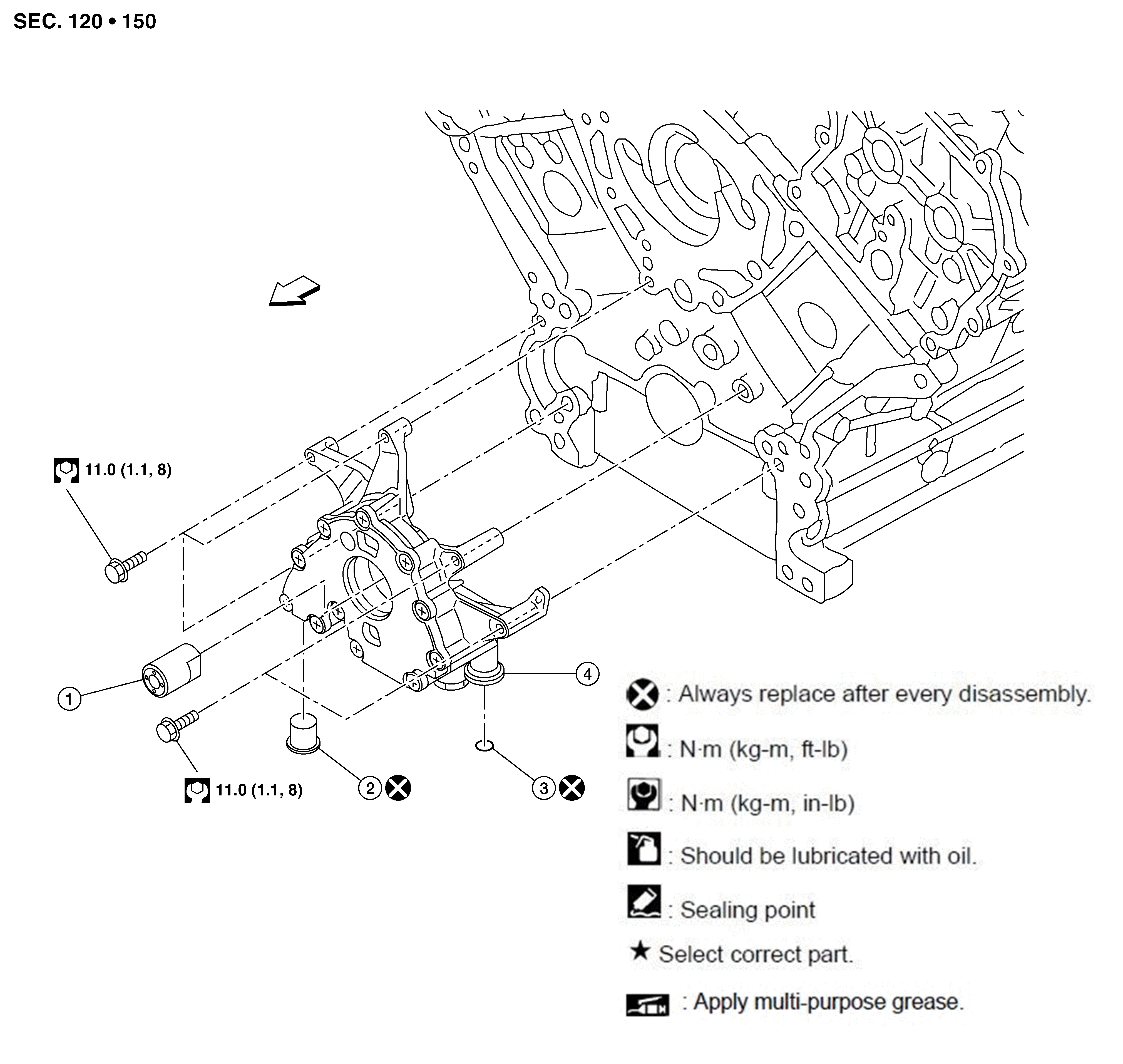

Fig 1: Oil Pump Components With Torque Specifications
GNSAWBIA3217Z-217Courtesy of NISSAN NORTH AMERICA, INC.

1.

Oil pump drive spacer

2.

O-ring

3.

O-ring

4.

Oil pump assembly

SYMBOL

Front
