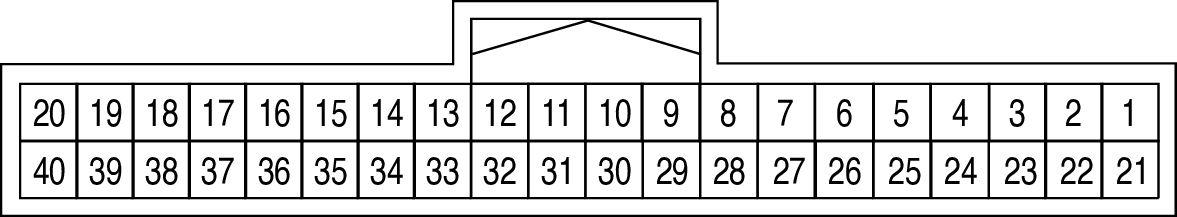

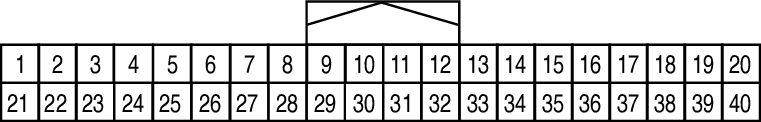

Intelligent Key Unit Connector End View (M155)
Connector Types: TH40FB-NH
Connector Color: BLACK
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | GR | PWR |
| 2 | - | - |
| 3 | BR | BUZZER |
| 4 | LG | IKEY FL SW |
| 5 | - | - |
| 6 | LA/L | CAN-H |
| 7 | LA/P | CAN-L |
| 8 | - | - |
| 9 | BG | START SW |
| 10 | L | START BACKLIGHT |
| 11 | P | IKEY FR SW |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | R | IMMO LF1 ANT A |
| 20 | G | IMMO LF1 ANT B |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | - | - |
| 28 | - | - |
| 29 | LA/B | GROUND |
| 30 | - | - |
| 31 | LA/R | RIGHT ANT B |
| 32 | LA/SB | RIGHT ANT A |
| 33 | LA/P | LF2 ANT B |
| 34 | LA/L | LF2 ANT A |
| 35 | LA/V | LEFT ANT B |
| 36 | LA/P | LEFT ANT A |
| 37 | LA/Y | REAR ANT B |
| 38 | LA/W | REAR ANT A |
| 39 | - | - |
| 40 | - | - |
