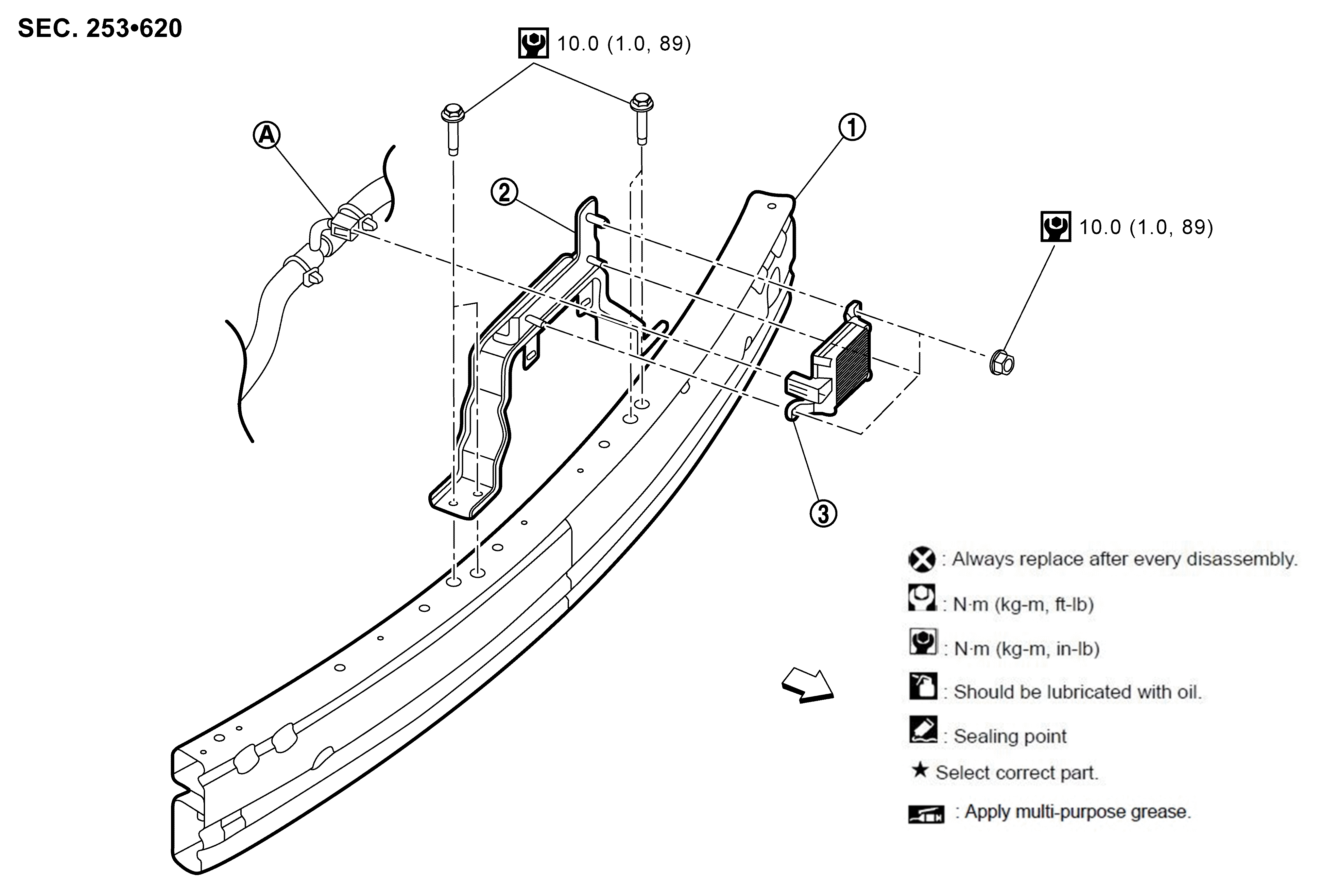

DISTANCE SENSOR : Exploded View

GNSJSOIA3046GB-046Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front bumper reinforcement

SYMBOL

Distance sensor bracket

SYMBOL

Distance sensor

SYMBOL

Distance sensor harness connector

SYMBOL

Vehicle front

SYMBOL : N.m (kg-m, in-lb)
