Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing ADAS control unit, perform "Before Replace ECU" of "Read / Write Configuration" to save or print current vehicle specification. Refer to Description .
  1. Disconnect battery or batteries. Refer to Battery Disconnect .
  2. Remove cluster lid C lower. Refer to Removal and Installation .
  3. Remove cluster lid C. Refer to Removal and Installation .

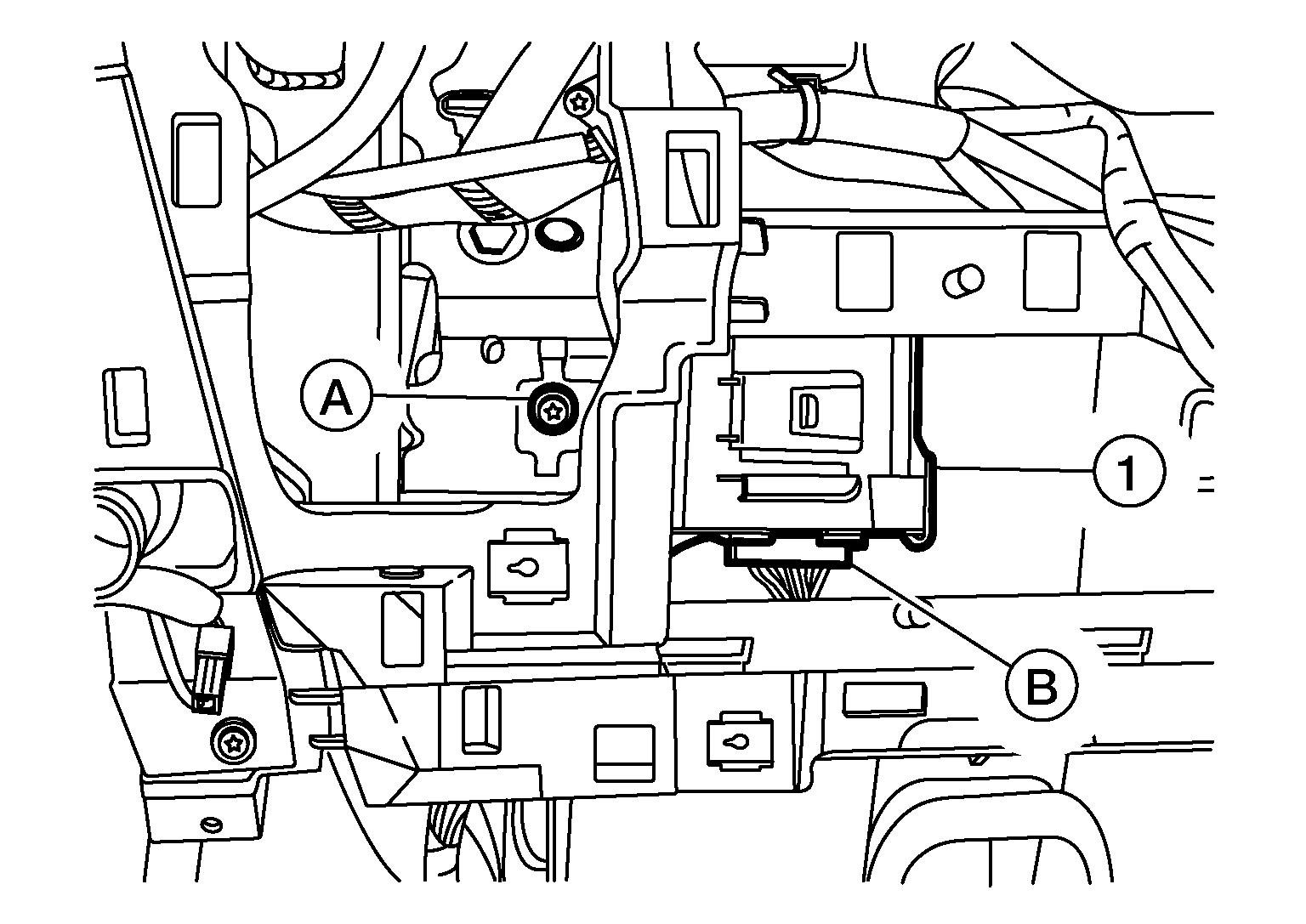

  4. Remove ADAS control unit screw (A).
    GNSALOIA0452Z-452Courtesy of NISSAN NORTH AMERICA, INC.
  5. Disconnect harness connector (B) from ADAS control unit (1).
  6. Remove ADAS control unit.
