Removal and Installation: Removal

  1. Remove instrument lower panel LH. Refer to Removal and Installation .
  2. Disconnect harness connector from mirror switch (if necessary).
  3. Disconnect harness connector from cargo lamp switch (if necessary).
  4. Disconnect the harness connector from hill descent control switch.
  5. Remove the screws from the lower switch carrier.
  6. Remove the lower switch carrier from the instrument lower panel LH.

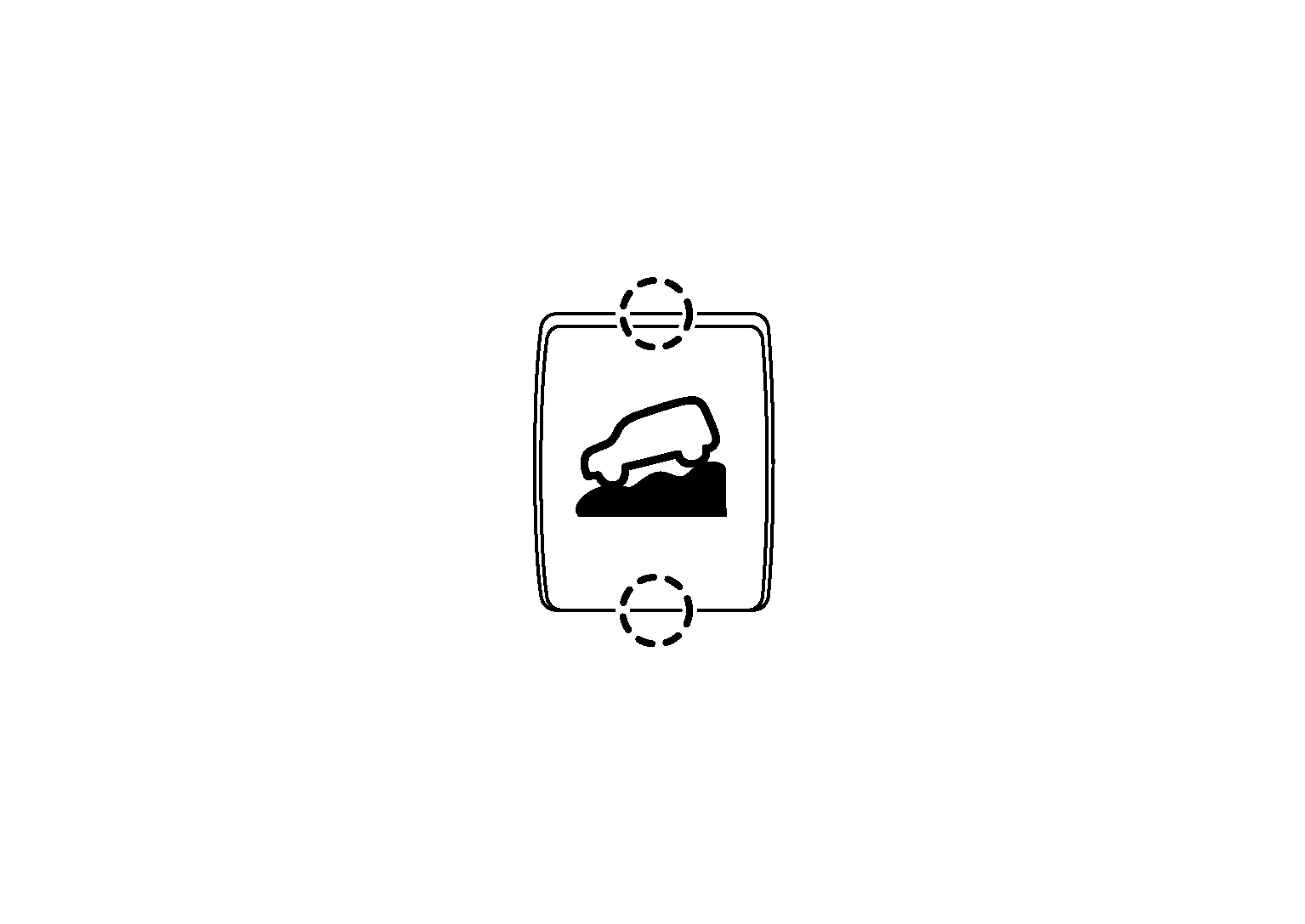

  7. Release pawls using suitable tool and remove the hill descent control switch from the lower switch carrier.
    GNSAWFIA1223Z-223Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
