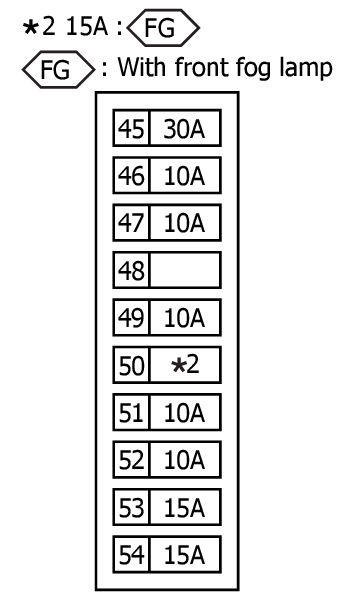

IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (Fuse 45)
Connector Types:
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 45 |
BR |
- |
