Home >> Nissan-Datsun >> 2021 >> Altima SV, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> Body Control System >> System Description >> System >> Combination Switch Reading System >> System Description >> System Diagram

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

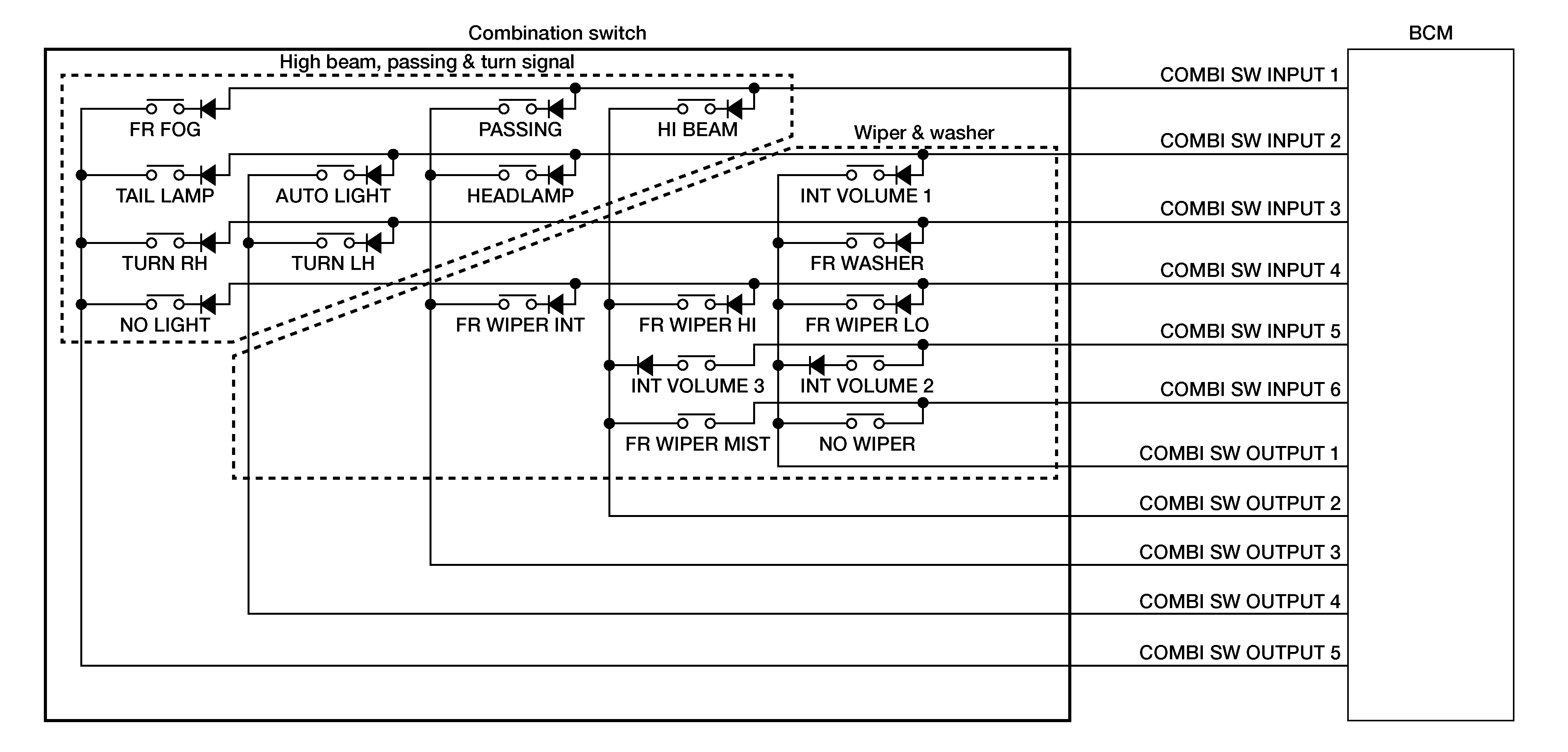

System Diagram

GNSAWMIA0186GB-186

Courtesy of NISSAN NORTH AMERICA, INC.
