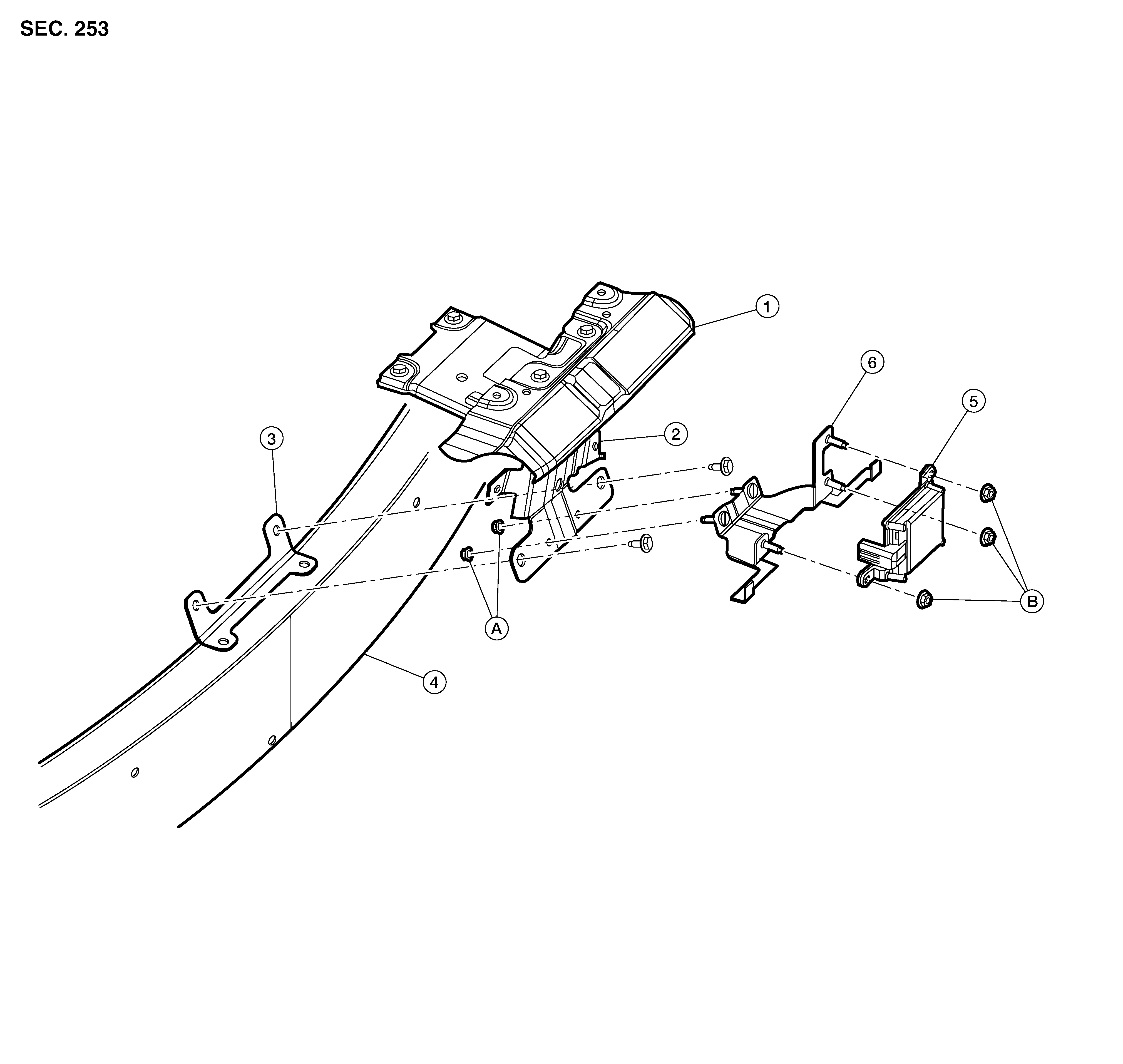

DISTANCE SENSOR : Exploded View
WARNING: This page is about a different car, the 2020 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Upper radiator core support cover |
2. |
Front bumper reinforcement bracket |
3. |
Front bumper lower retainer bracket |
|
4. |
Front bumper reinforcement |
5. |
Distance sensor |
6. |
Distance sensor bracket |
|
A. |
Refer to DISTANCE SENSOR : Removal & Installation . |
B. |
Refer to DISTANCE SENSOR : Removal & Installation . |
||
