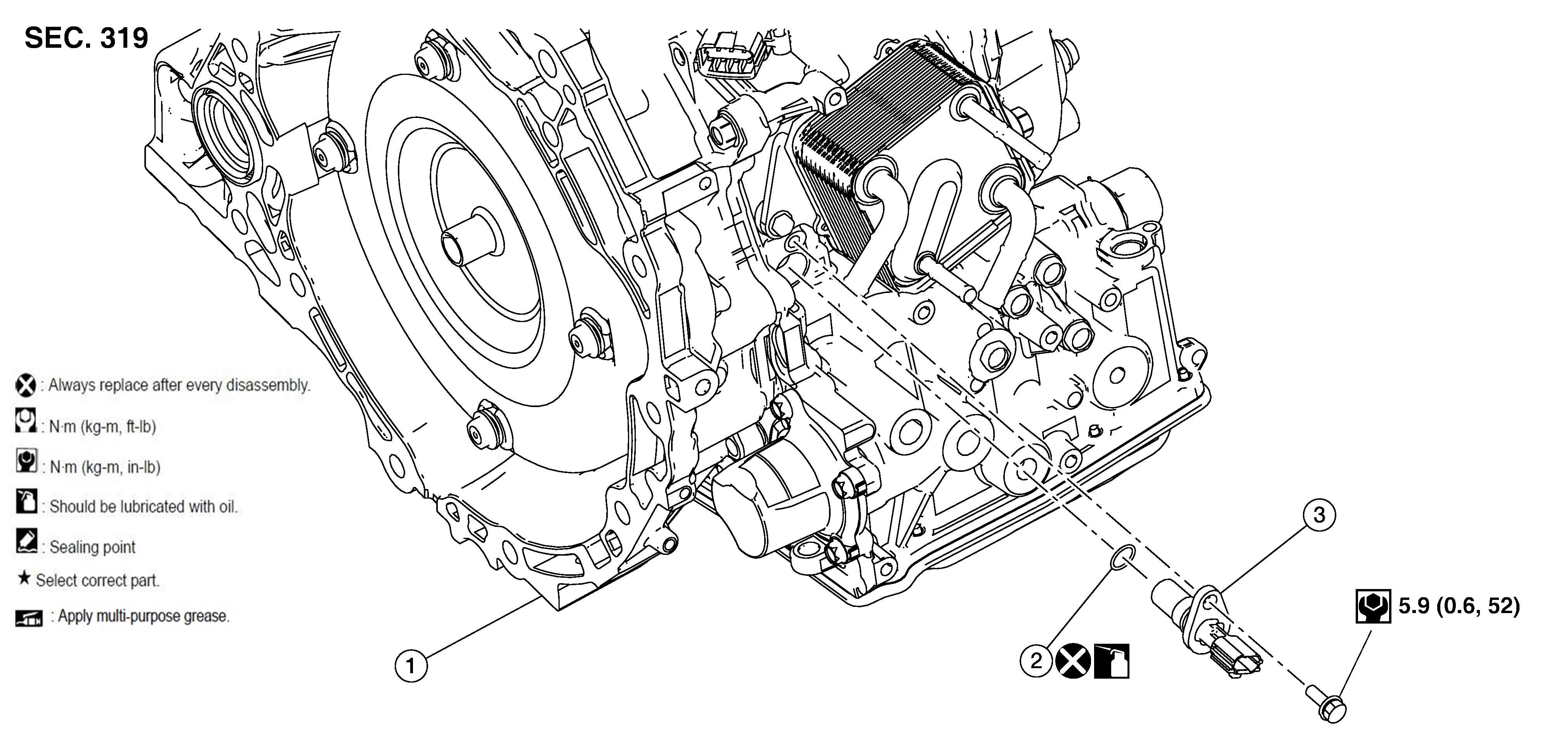

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Transaxle assembly
2.
O-ring
3.
Input speed sensor
