Exploded View

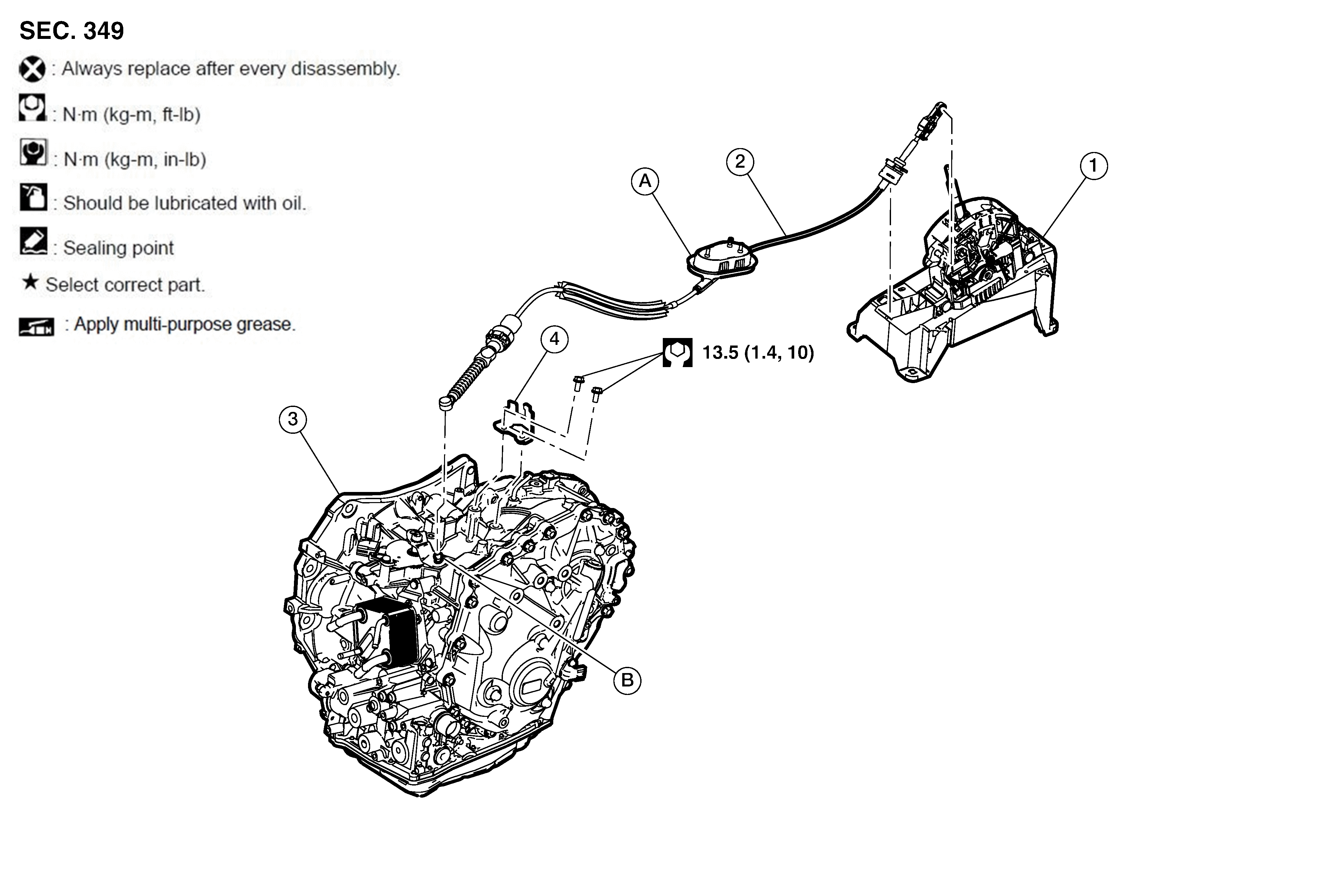

Fig 1: Control Cable Components With Torque Specification
GNSALDIA0862Z-862Courtesy of NISSAN NORTH AMERICA, INC.

1.

CVT shift selector assembly

2.

Control cable

3.

Transaxle assembly

4.

Bracket

A.

Grommet

B.

Manual lever
