Nissan-Datsun
>>
2020
>>
Rogue SV, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
System Description
>>
System
>>
Engine Control System
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

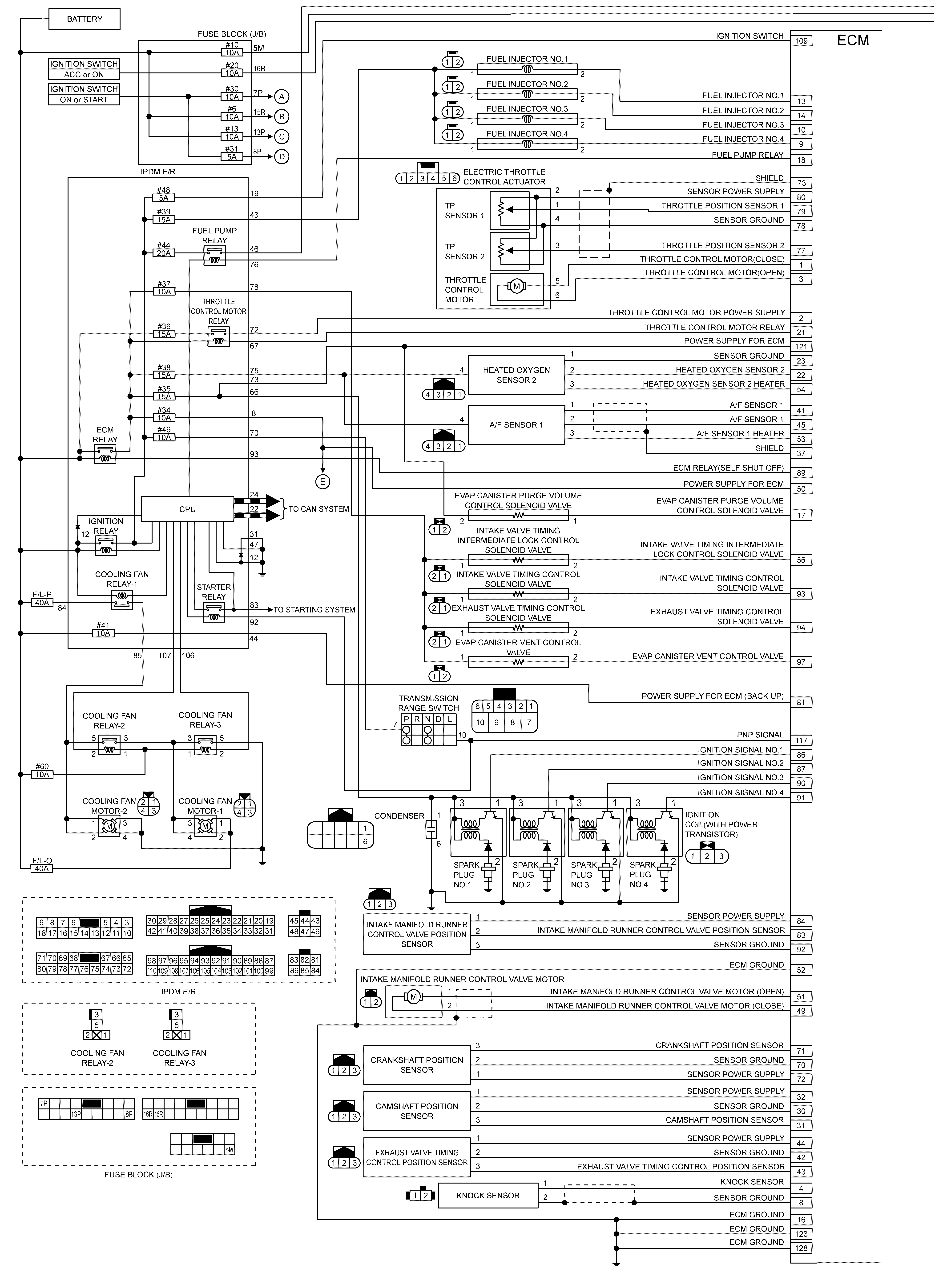

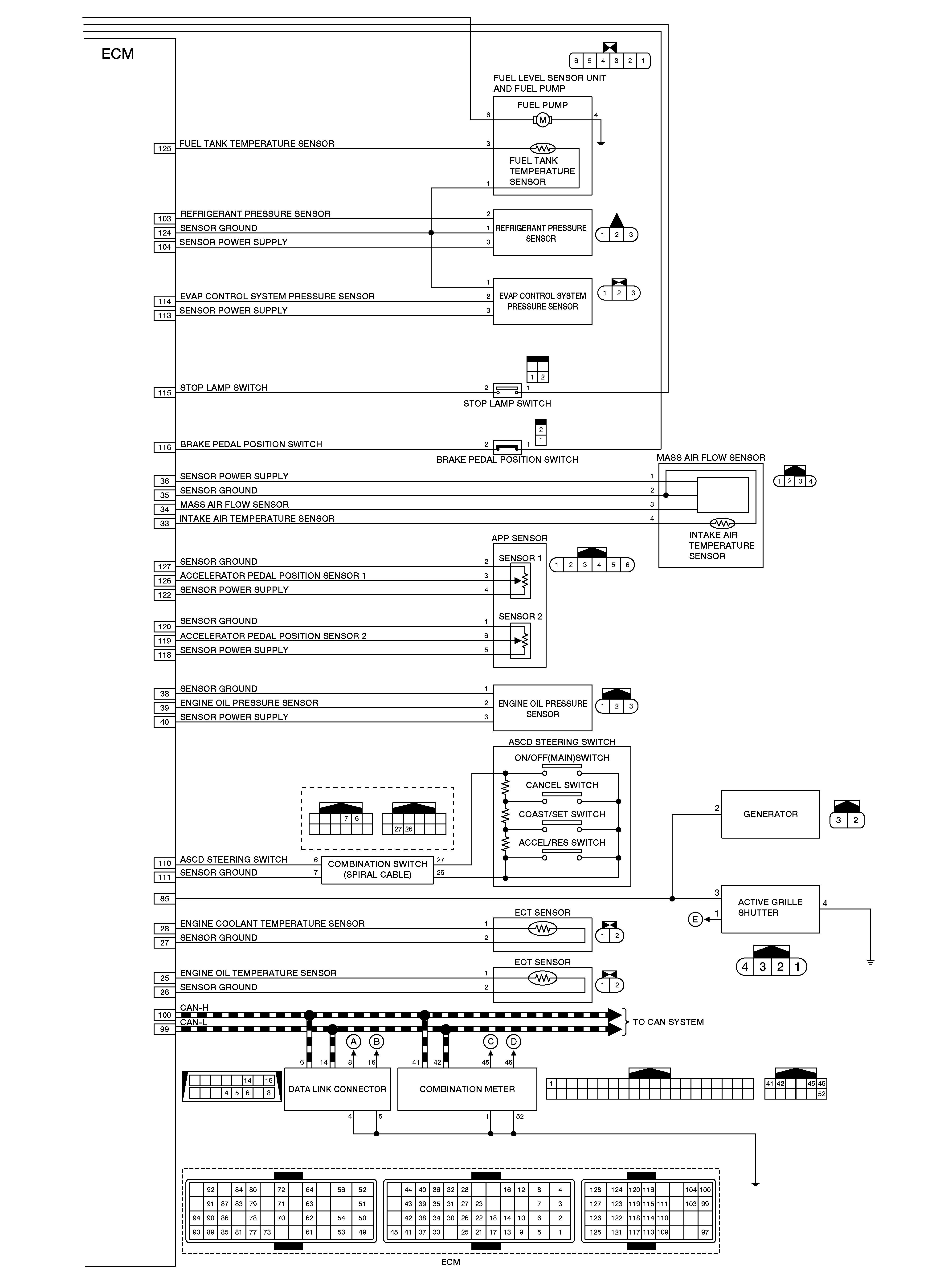

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
