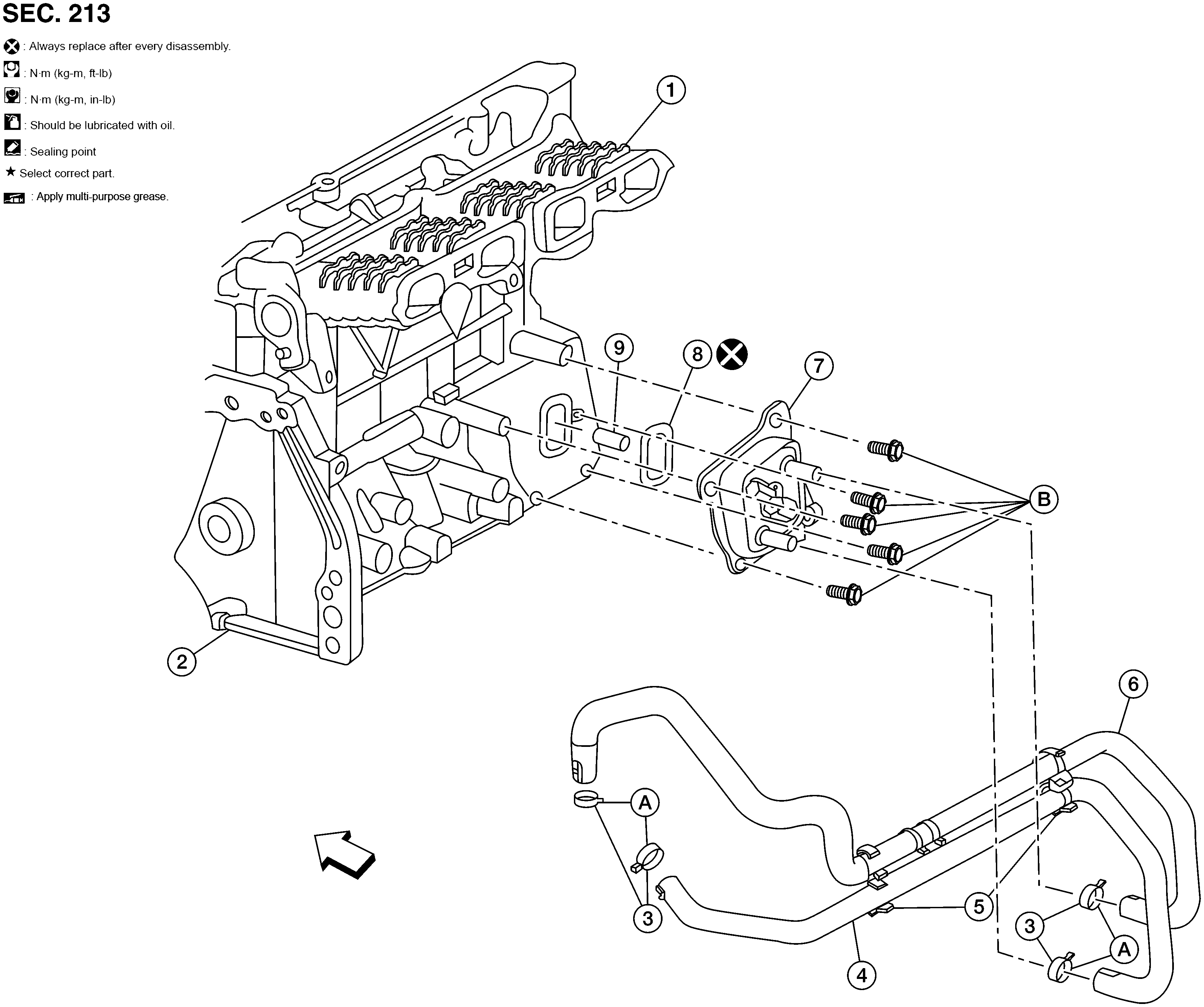

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Intake manifold	2.	Cylinder block	3.	Clamp
4.	Water hose (A)	5.	Water hose clip	6.	Water hose (B)
7.	Oil cooler	8.	Gasket	9.	Oil cooler relief valve
A.	Refer to Removal and Installation .	B.	Refer to Removal and Installation .		Front
