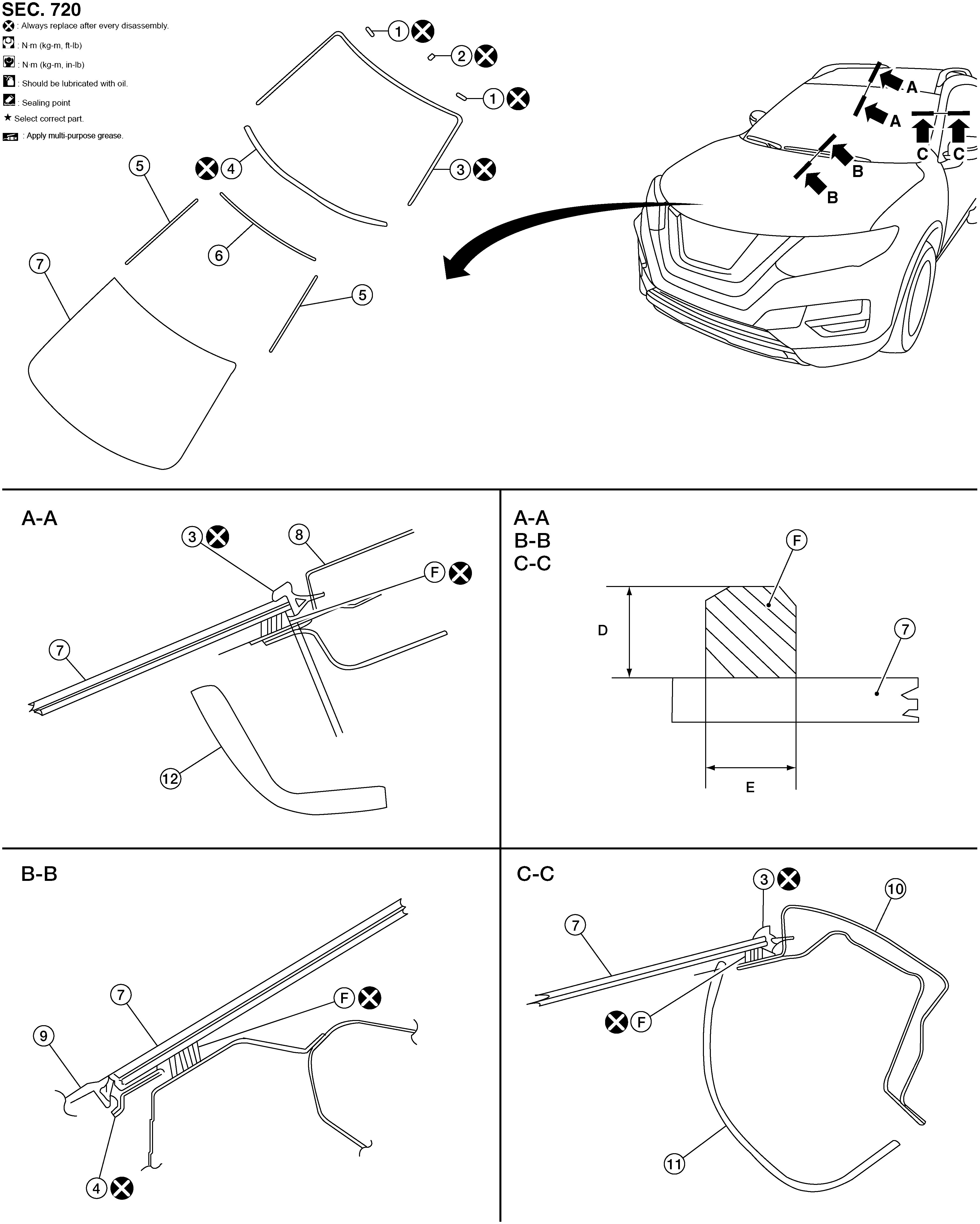

1.
Spacer
2.
Mirror base
3.
Windshield glass molding
4.
Windshield glass lower molding
5.
Dam sealant side
6.
Dam sealant upper
7.
Windshield glass
8.
Roof
9.
Cowl top cover
10.
Body side outer
11.
Front pillar finisher
12.
Headlining
D.
12 mm (0.47 in)
E.
7 mm (0.28 in)
F.
Adhesive
