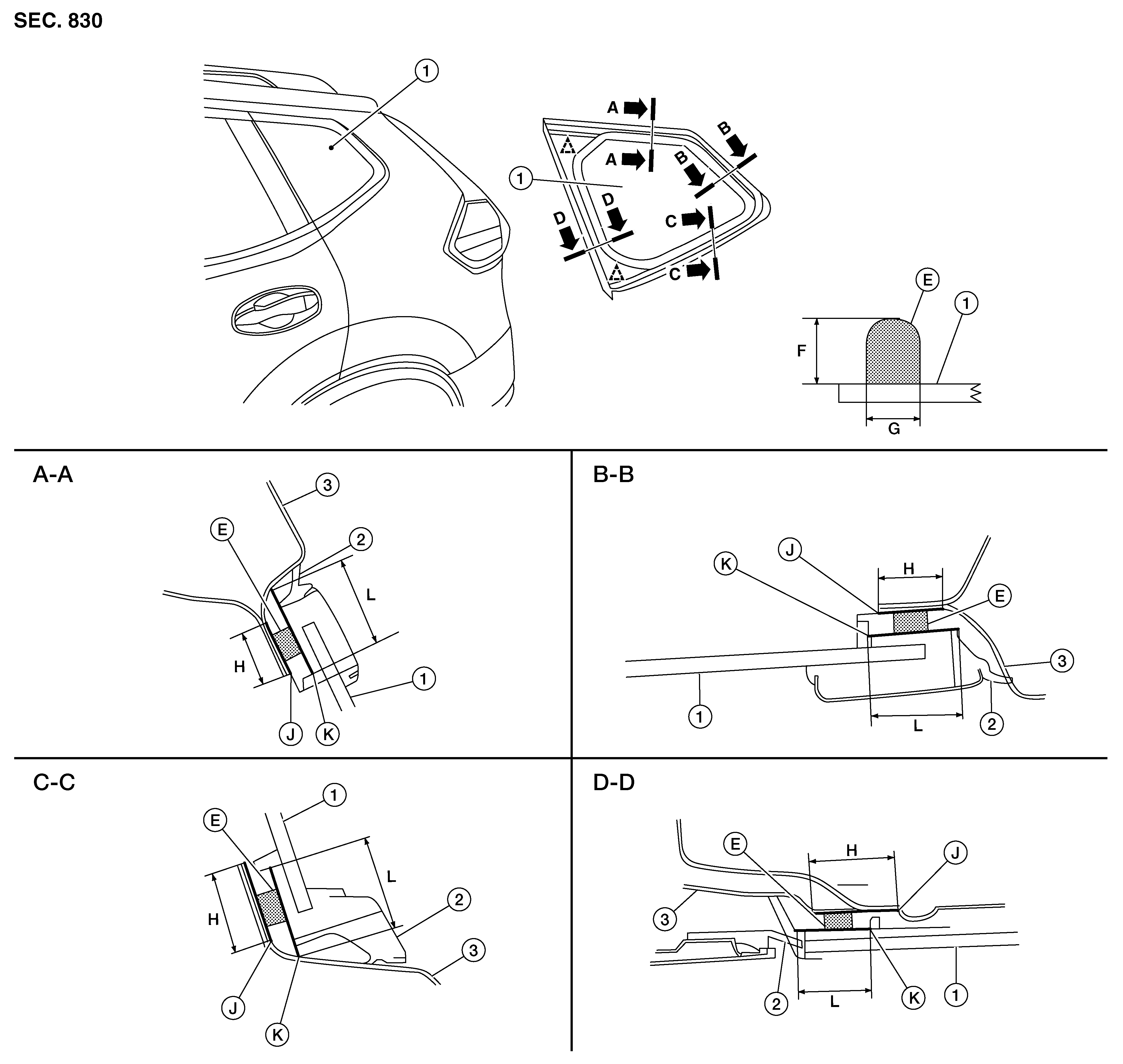

1.
Quarter window glass
2.
Quarter window glass molding
3.
Body side outer
E.
Adhesive
F.
12.0 (0.47 in)
G.
7.0 mm (0.28 in)
H.
Mating surface
J.
Body side primer
K.
Glass primer
L.
17 mm (0.67 in)
Clip
