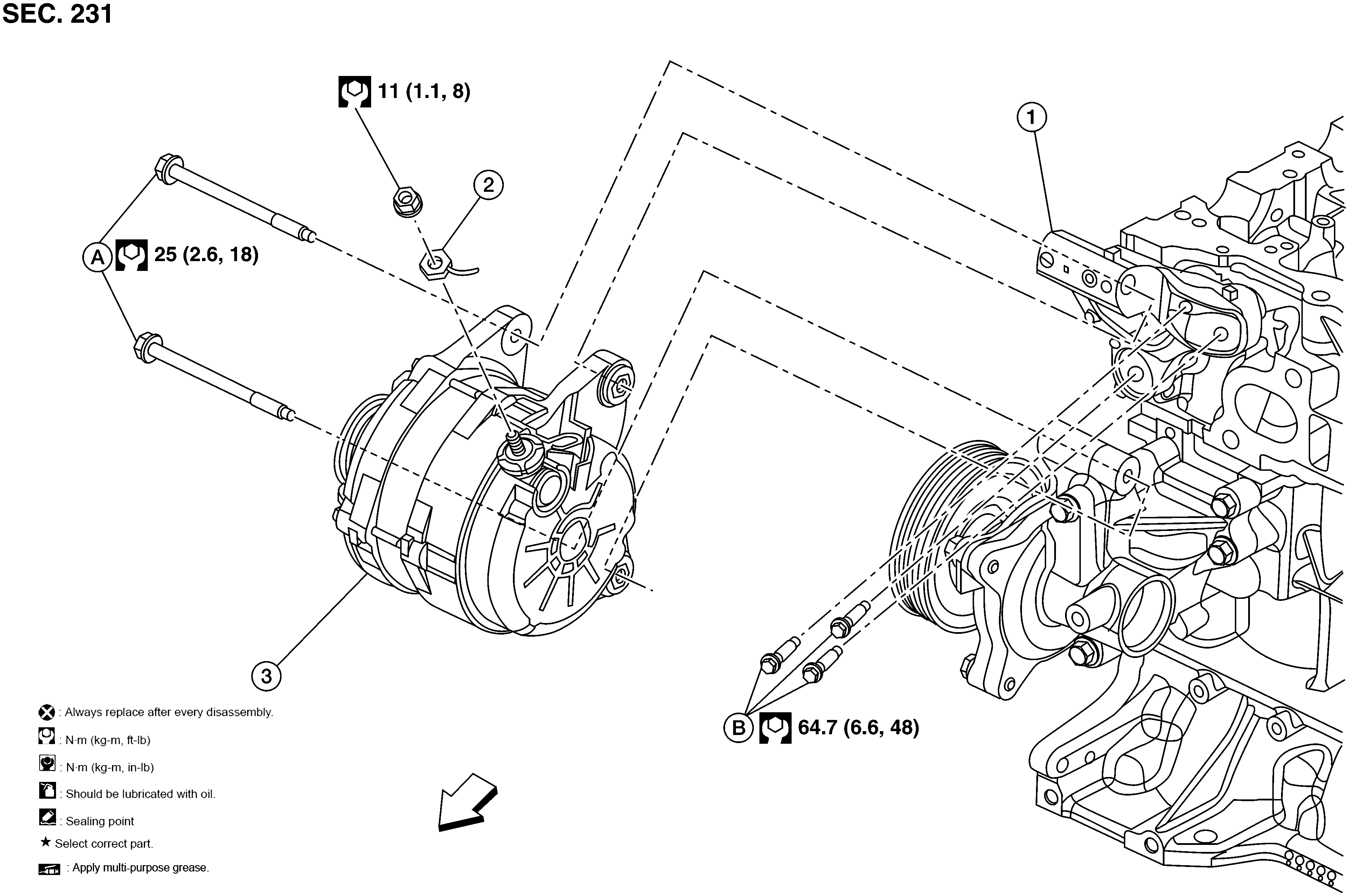

Exploded View: Removal

Fig 1: Generator Components With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Generator bracket	2.	"B" terminal harness	3.	Generator
A.	Refer to Installation .	B.	Refer to Installation .		Front
