Nissan-Datsun
>>
2020
>>
Qashqai SL
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Diagnostics) (1 Of 4)
>>
Description
>>
System
>>
Engine Control System
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

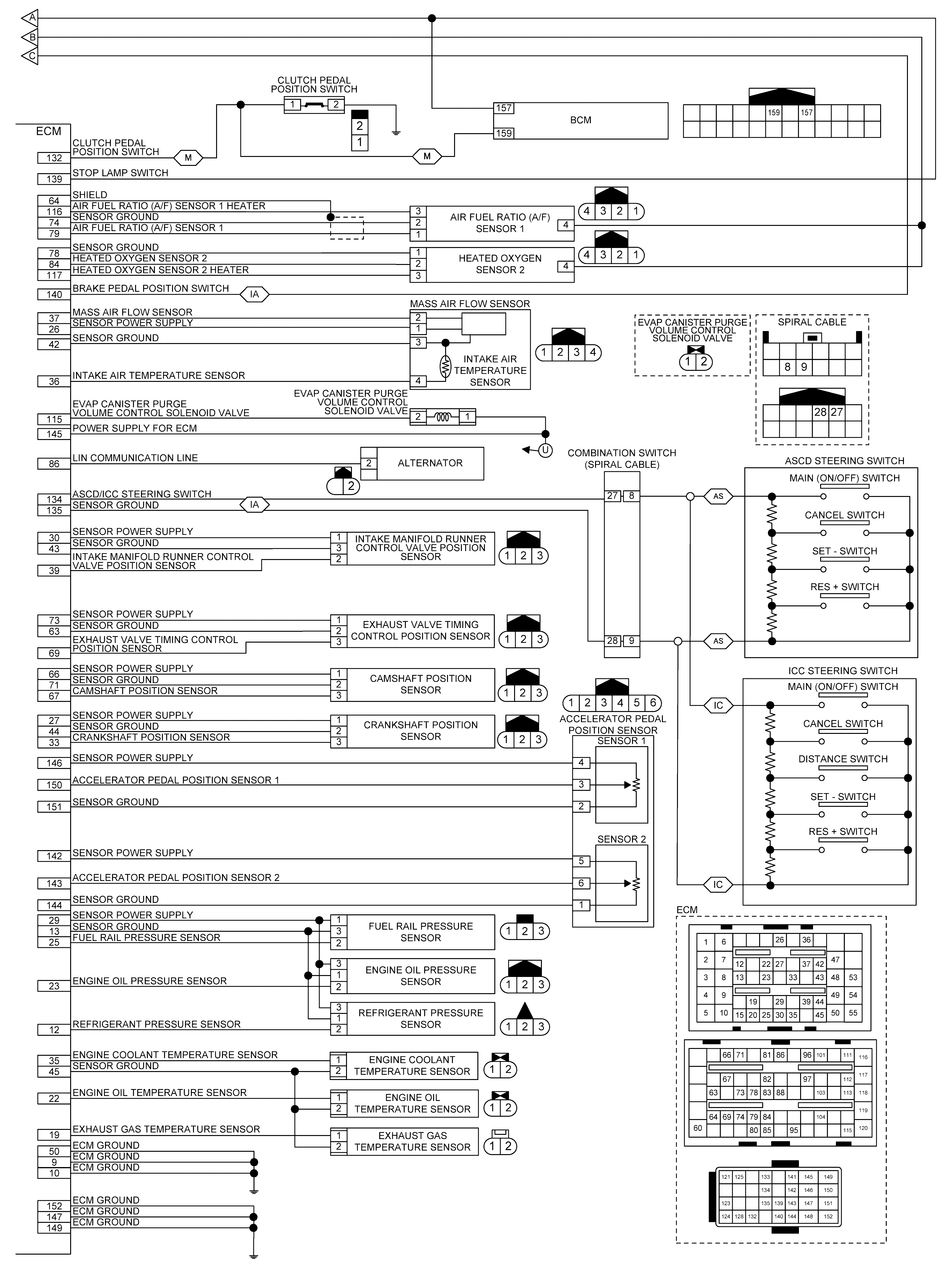

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.

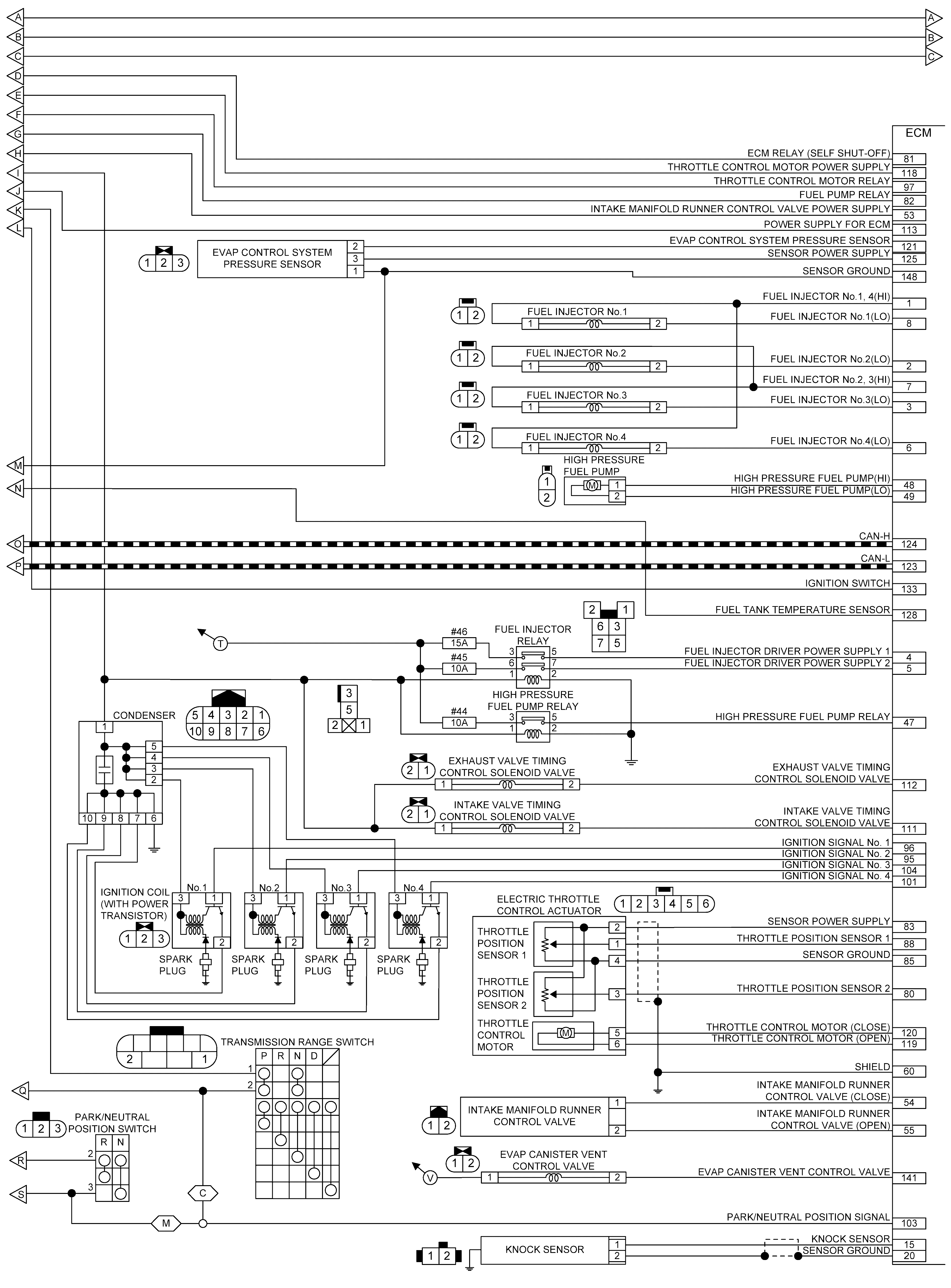

Courtesy of NISSAN NORTH AMERICA, INC.

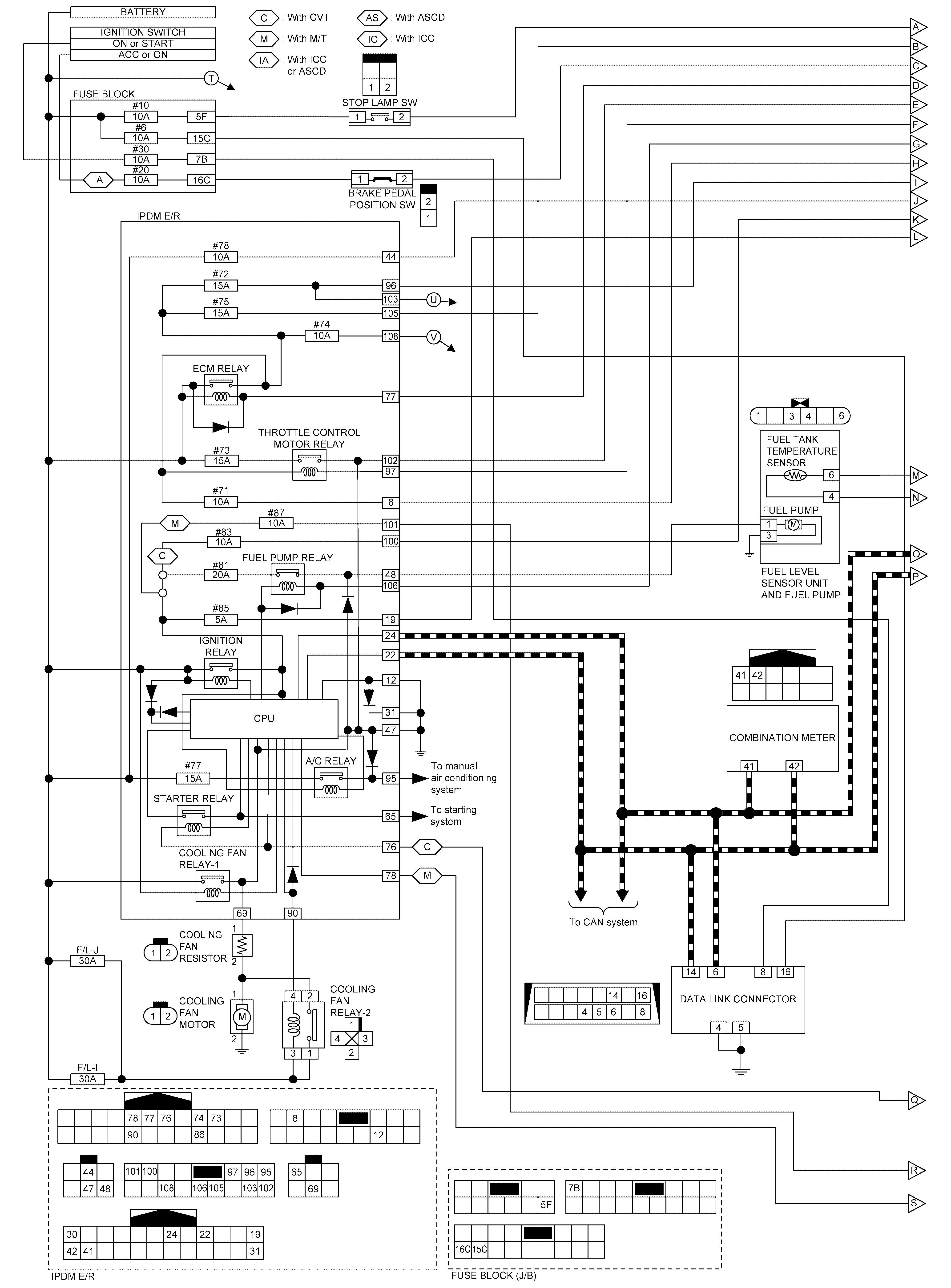

Courtesy of NISSAN NORTH AMERICA, INC.
