Exploded View

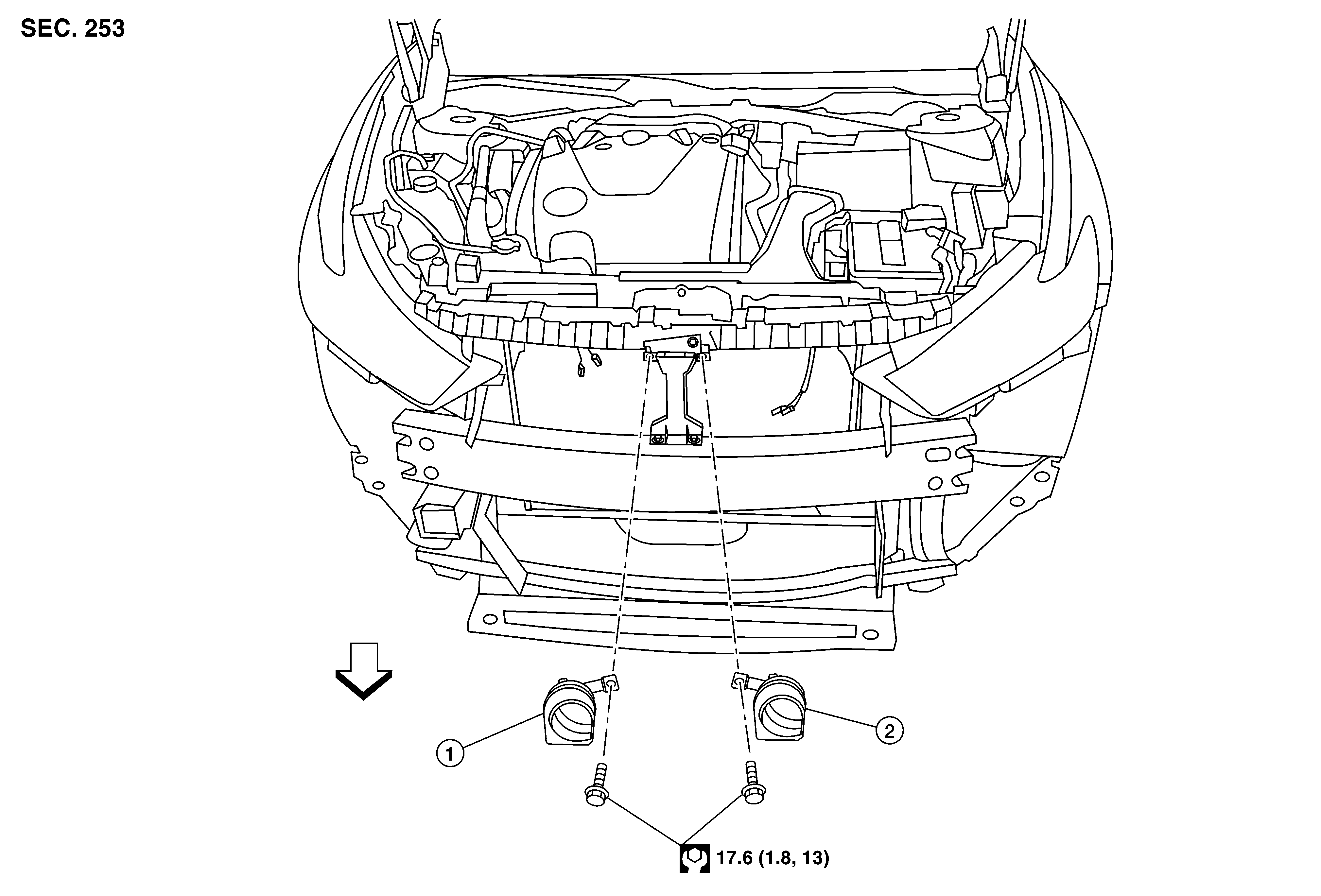

Fig 1: Horn Components With Torque Specification
GNSALLIA1831Z-831Courtesy of NISSAN NORTH AMERICA, INC.

1.

Horn (HIGH)

2.

Horn (LOW)

SYMBOL

Front
