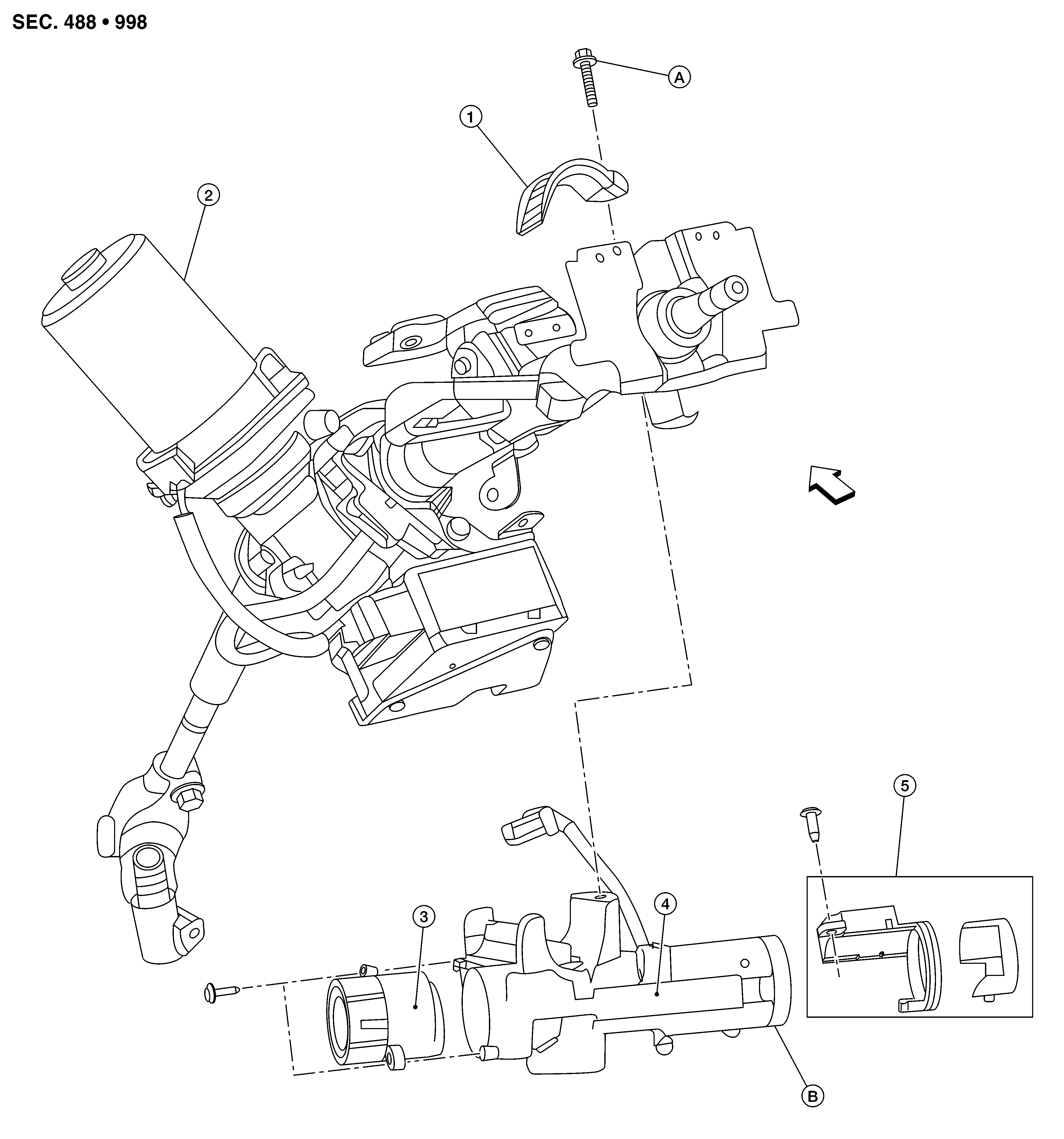

Exploded View
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Steering lock bracket
|
2.
|
Steering column
|
3.
|
Ignition switch
|
|
4.
|
Steering lock unit
|
5.
|
NATS antenna amp.
|
A.
|
Tamper resistant self-shear type screw
|
|
B.
|
Key cylinder
|
|
Front
|
NOTE:
Steering lock unit and key cylinder are serviced as an assembly. Ignition switch is available separately.
