Component Parts: ComponentPartsLocation

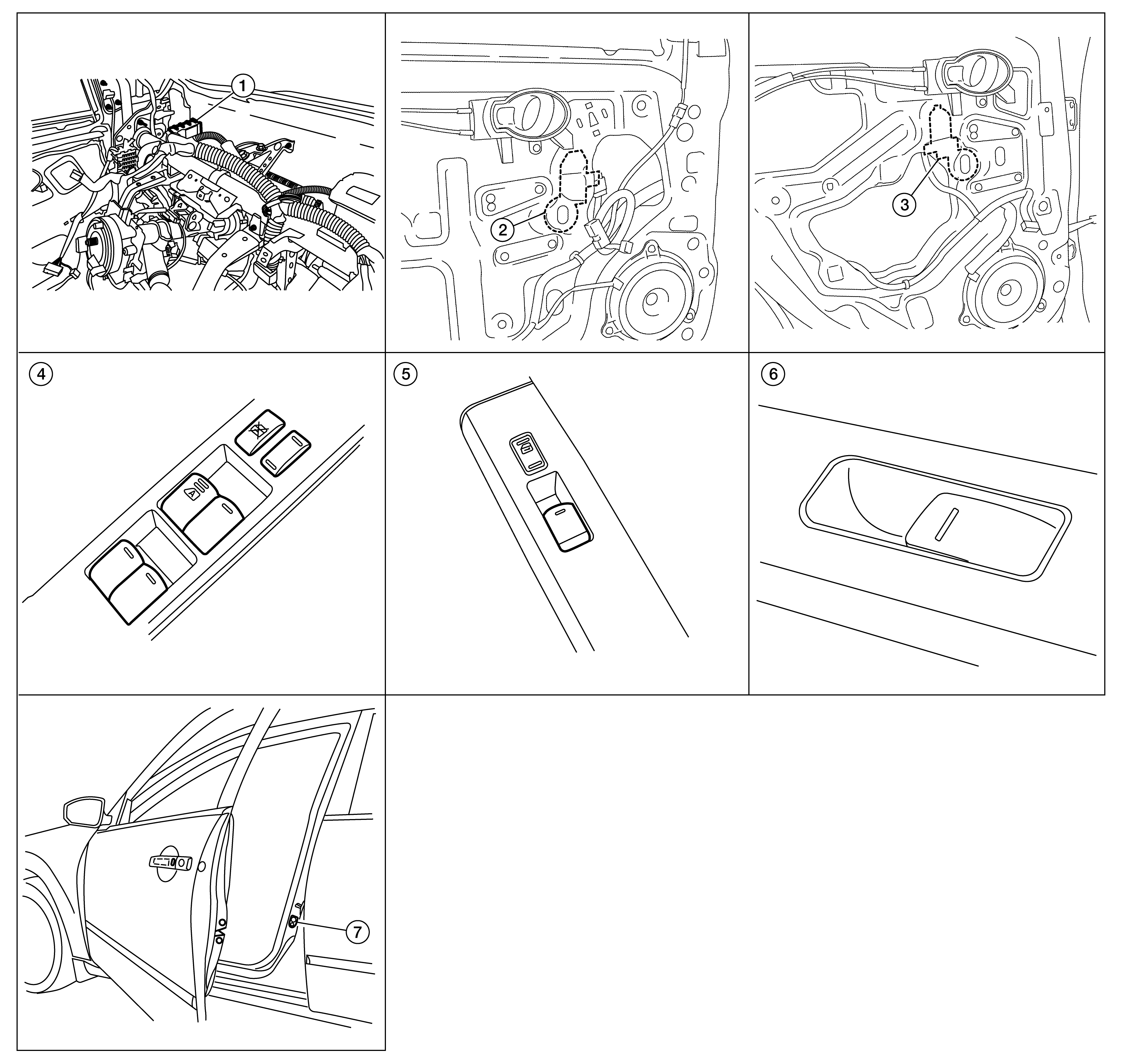

GNSDB113000Courtesy of NISSAN NORTH AMERICA, INC.

1.

BCM (view with instrument panel removed)

2.

Front power window motor (view with front door finisher removed)

3.

Rear power window motor (view with rear door finisher removed)

4.

Main power window and door lock/unlock switch

5.

Front power window and door lock/unlock switch RH

6.

Rear power window switch

7.

Front door switch LH (RH similar)
