Exploded View: MRA8DE

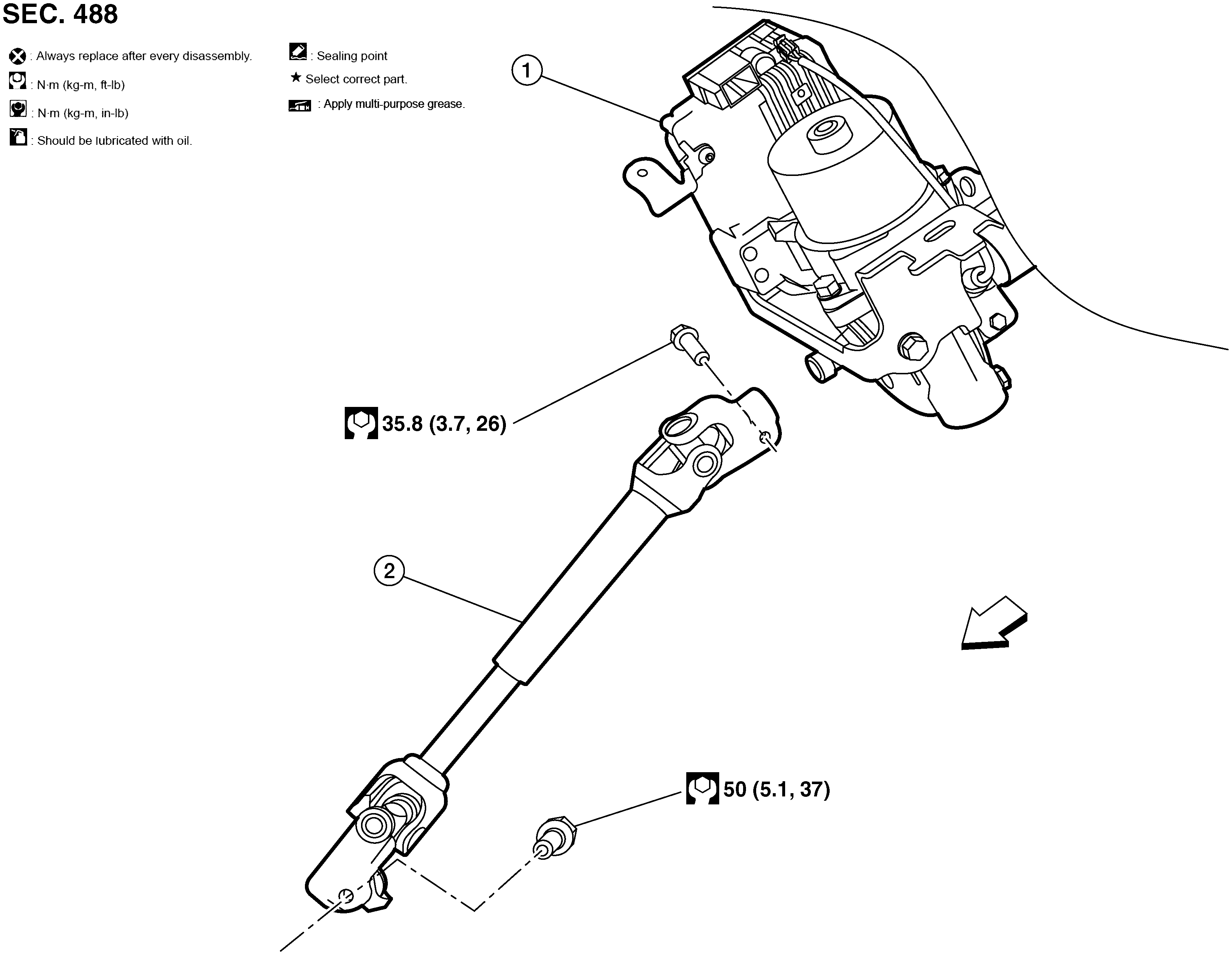

Fig 1: Steering Column Replacement Components With Torque Specifications (MRA8DE)
GNSALGIA0117Z-117Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower joint

SYMBOL

Front
