Exploded View

WARNING: This page is about a different variant/trim than selected.

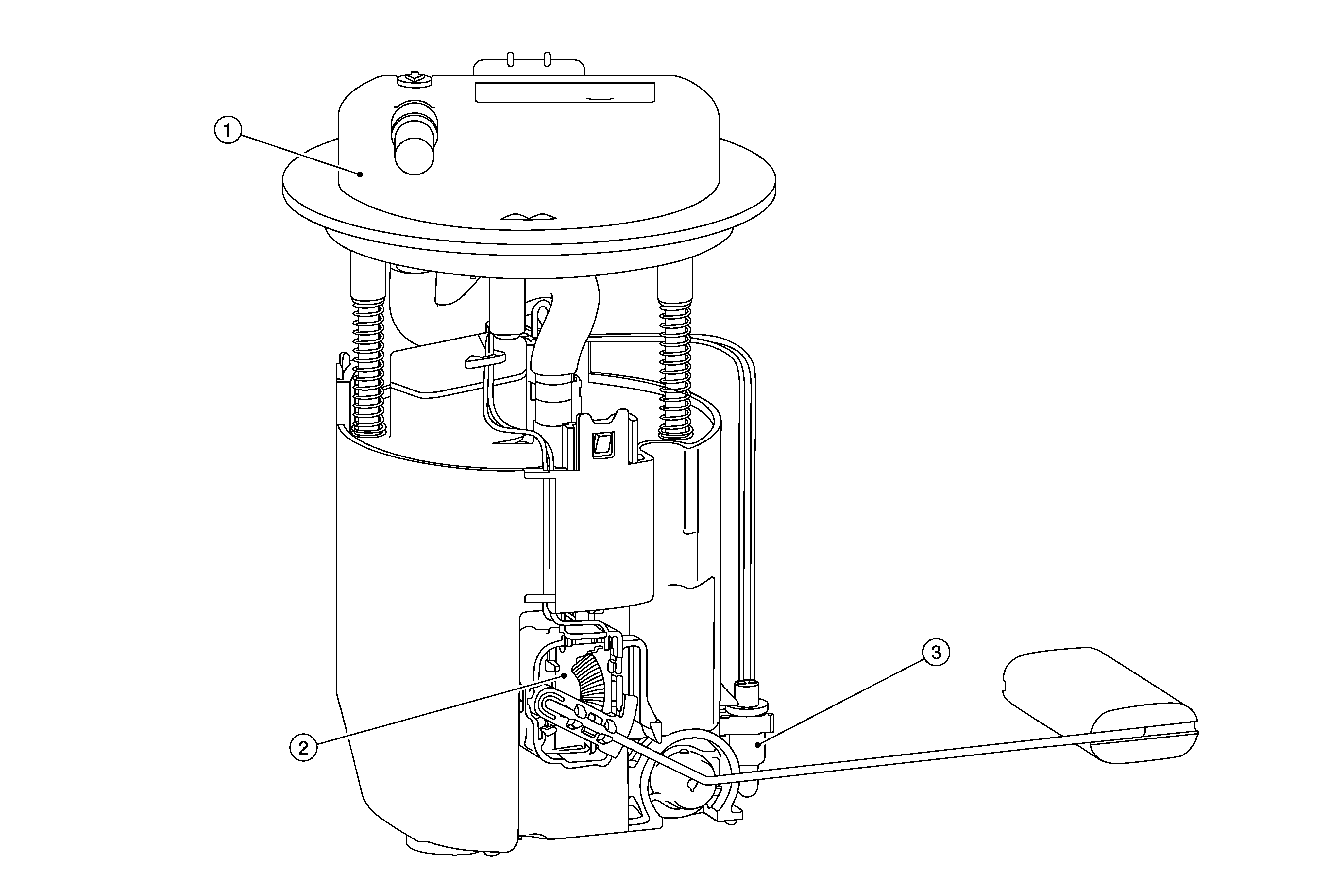

GNSALBIA0061Z-061

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel filter and fuel pump assembly

2.

Fuel level sensor unit

3.

Fuel temperature sensor
