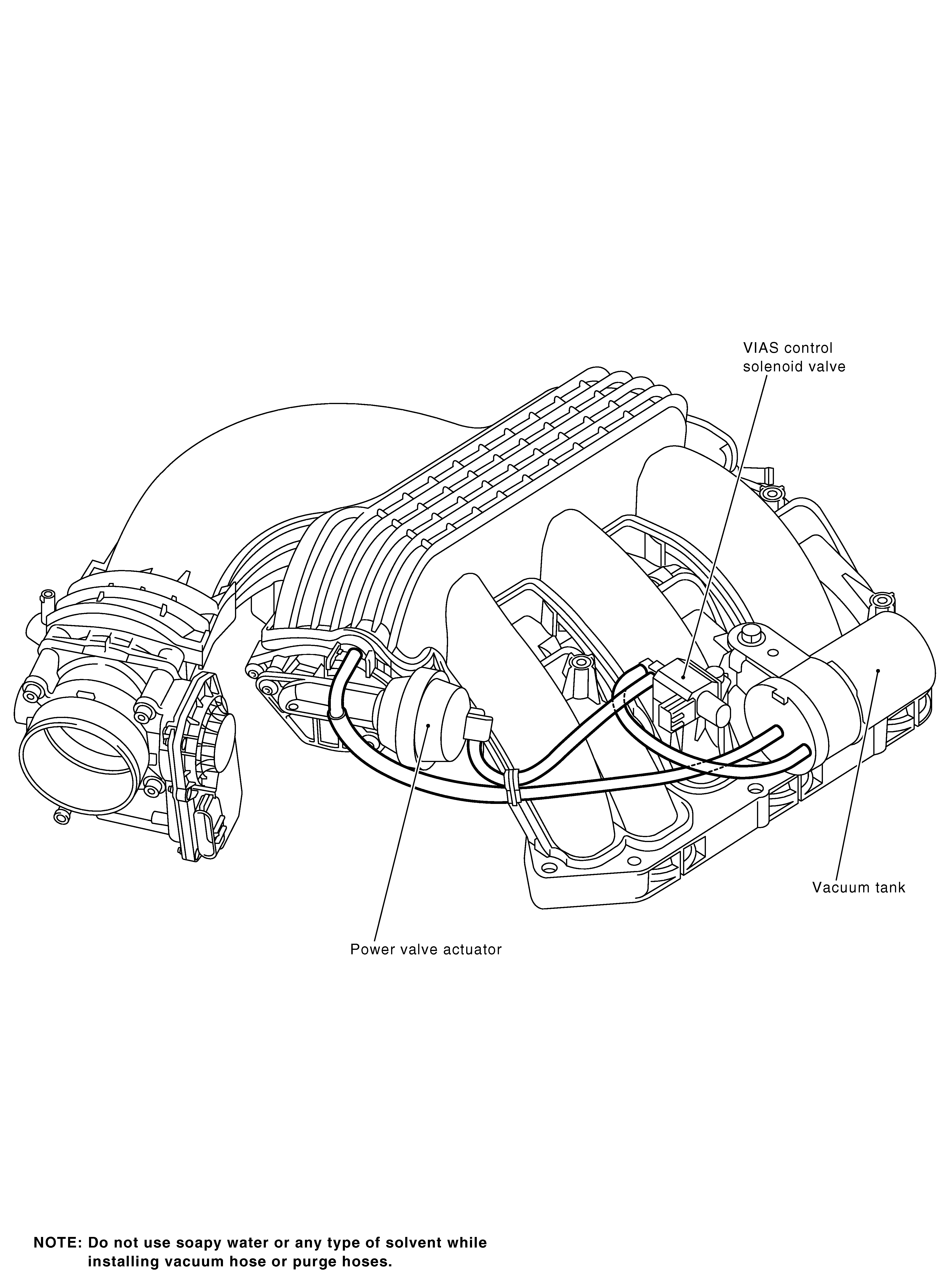

Vacuum Hose Drawing
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
System Diagram
for Vacuum Control System.
Courtesy of NISSAN NORTH AMERICA, INC.
