Exploded View

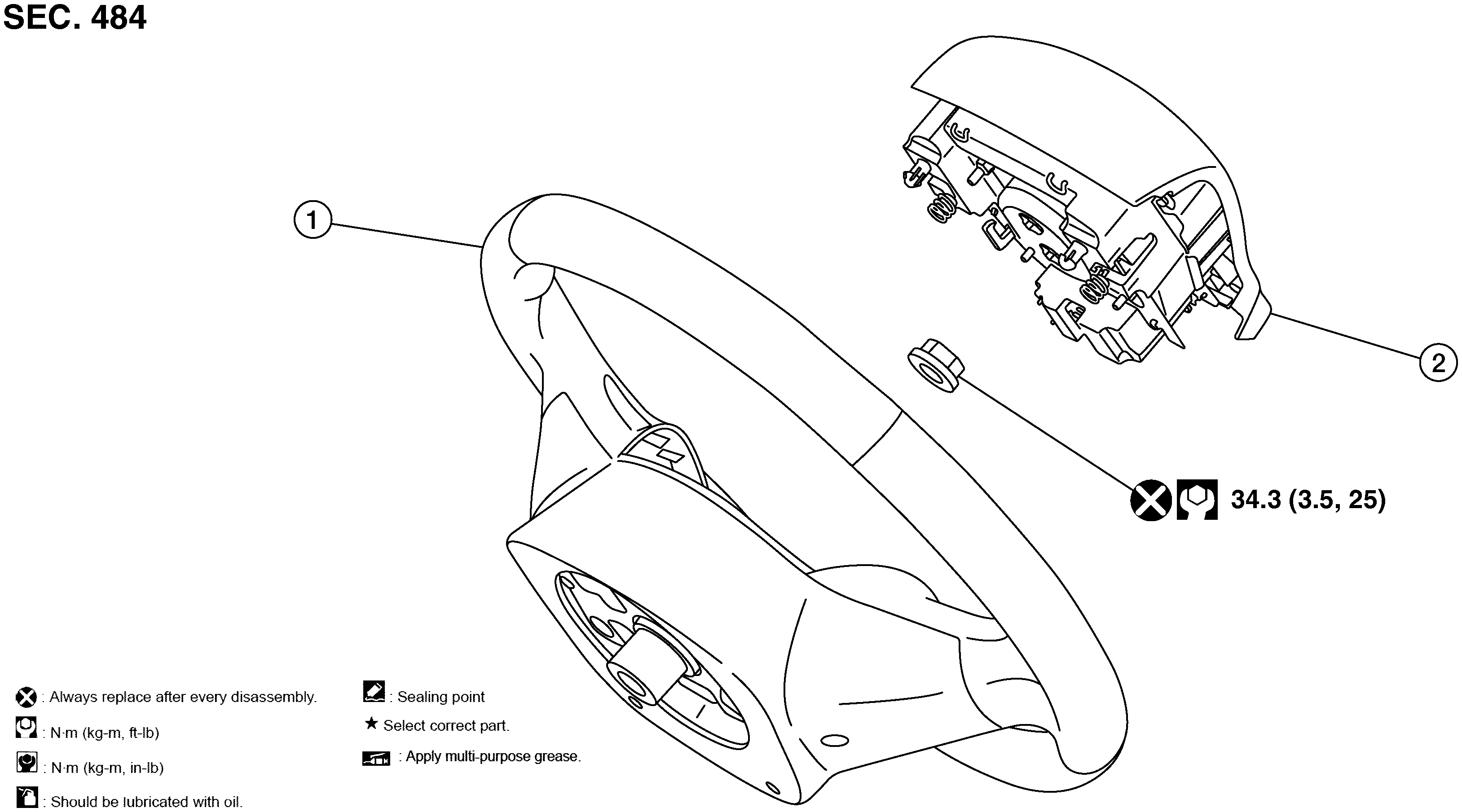

Fig 1: Steering Wheel With Torque Specification
GNSALGIA0080Z-080Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering wheel

2.

Driver air bag module
