Removal and Installation: Removal

  1. Remove center console finisher. Refer to Removal and Installation .

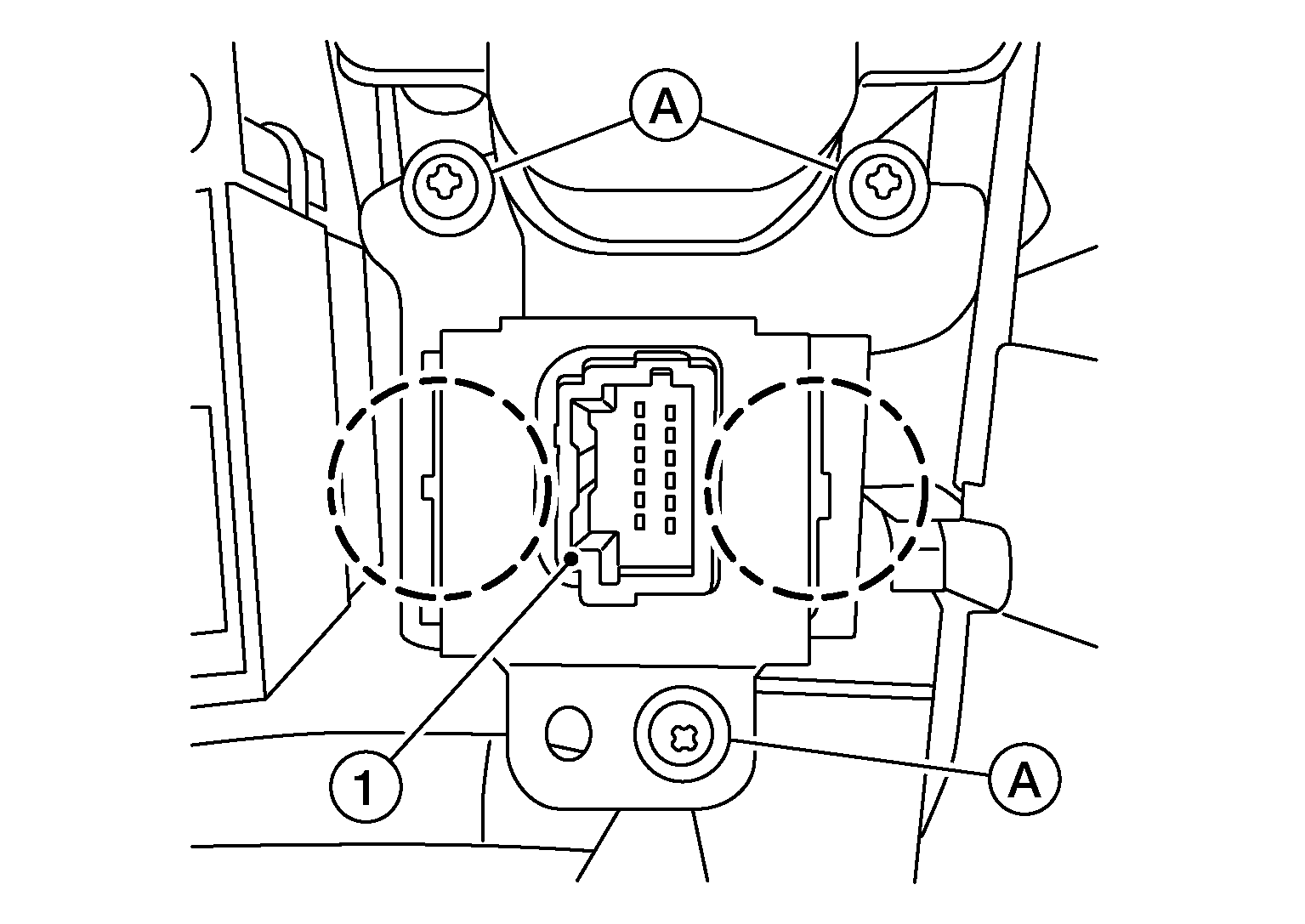

  2. Remove screws (A) and release pawls using suitable tool. Remove drive mode selector (1) from center console finisher.
    GNSDB121558Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
