Removal and Installation: Removal

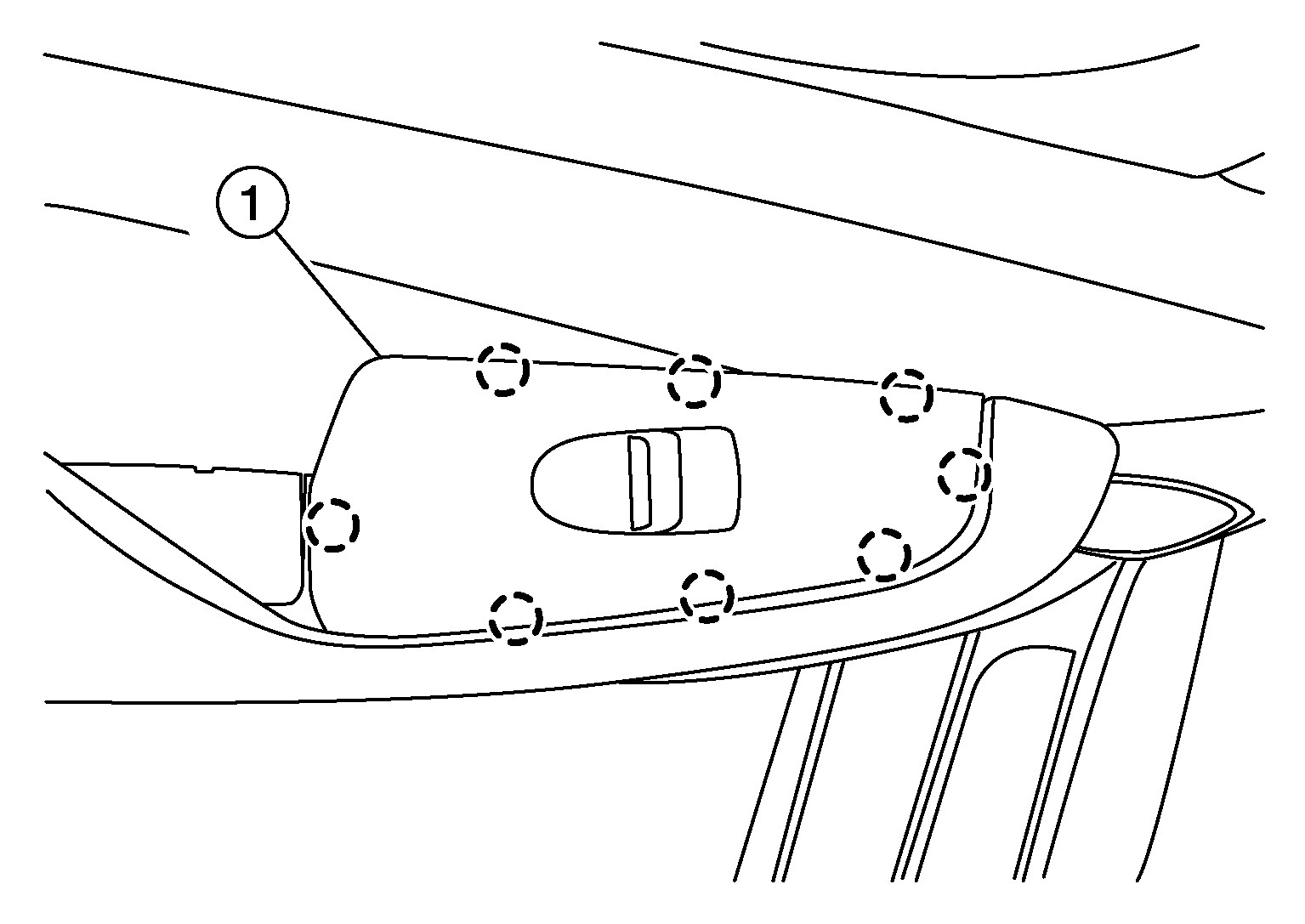

  1. Release pawls using a suitable tool and then remove the rear power window switch finisher (1).
    GNSALKIA3987Z-987Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
    NOTE: LH shown; RH similar

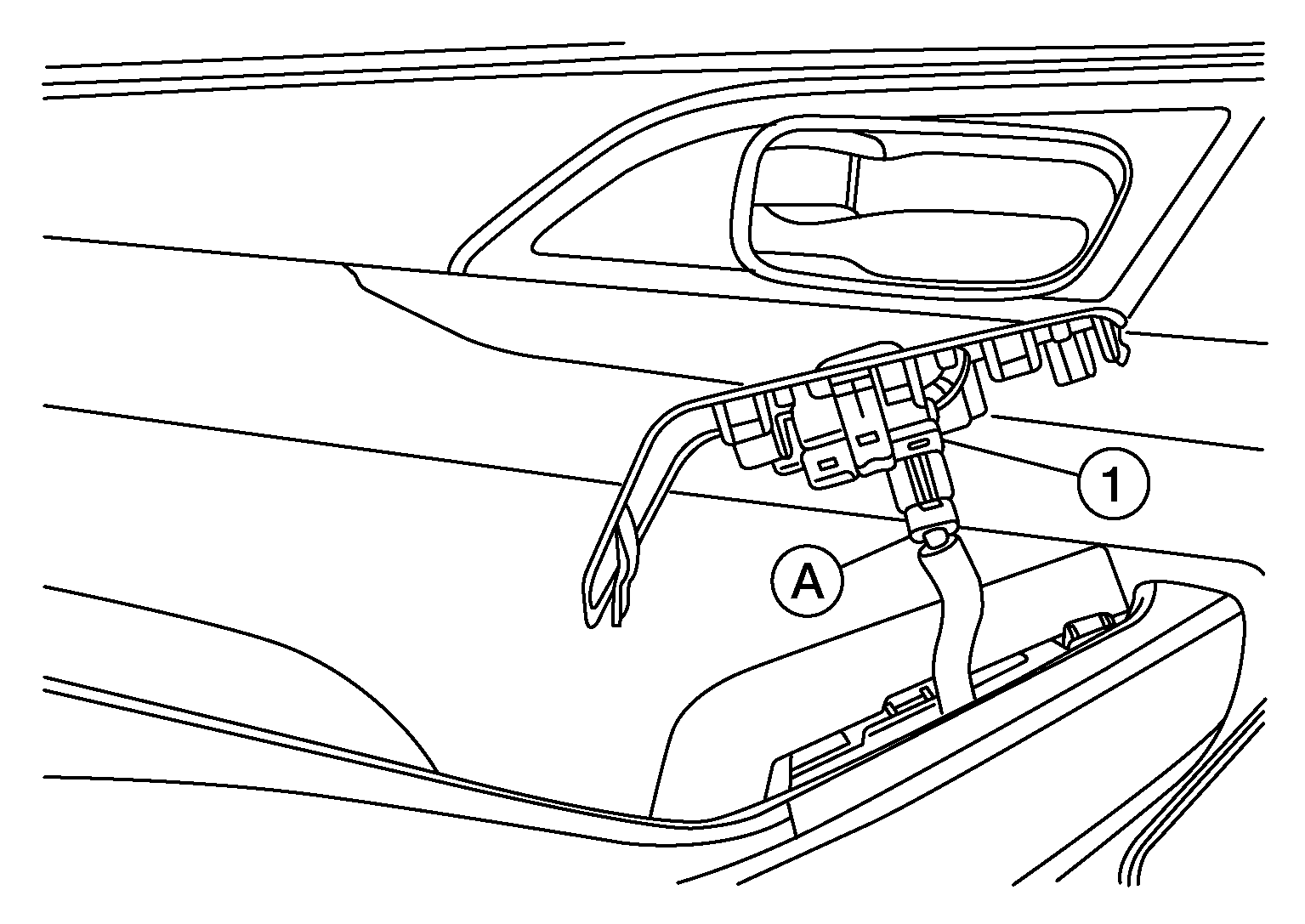

  2. Disconnect harness connector (A) from rear power window switch (1).
    GNSALKIA3988Z-988Courtesy of NISSAN NORTH AMERICA, INC.

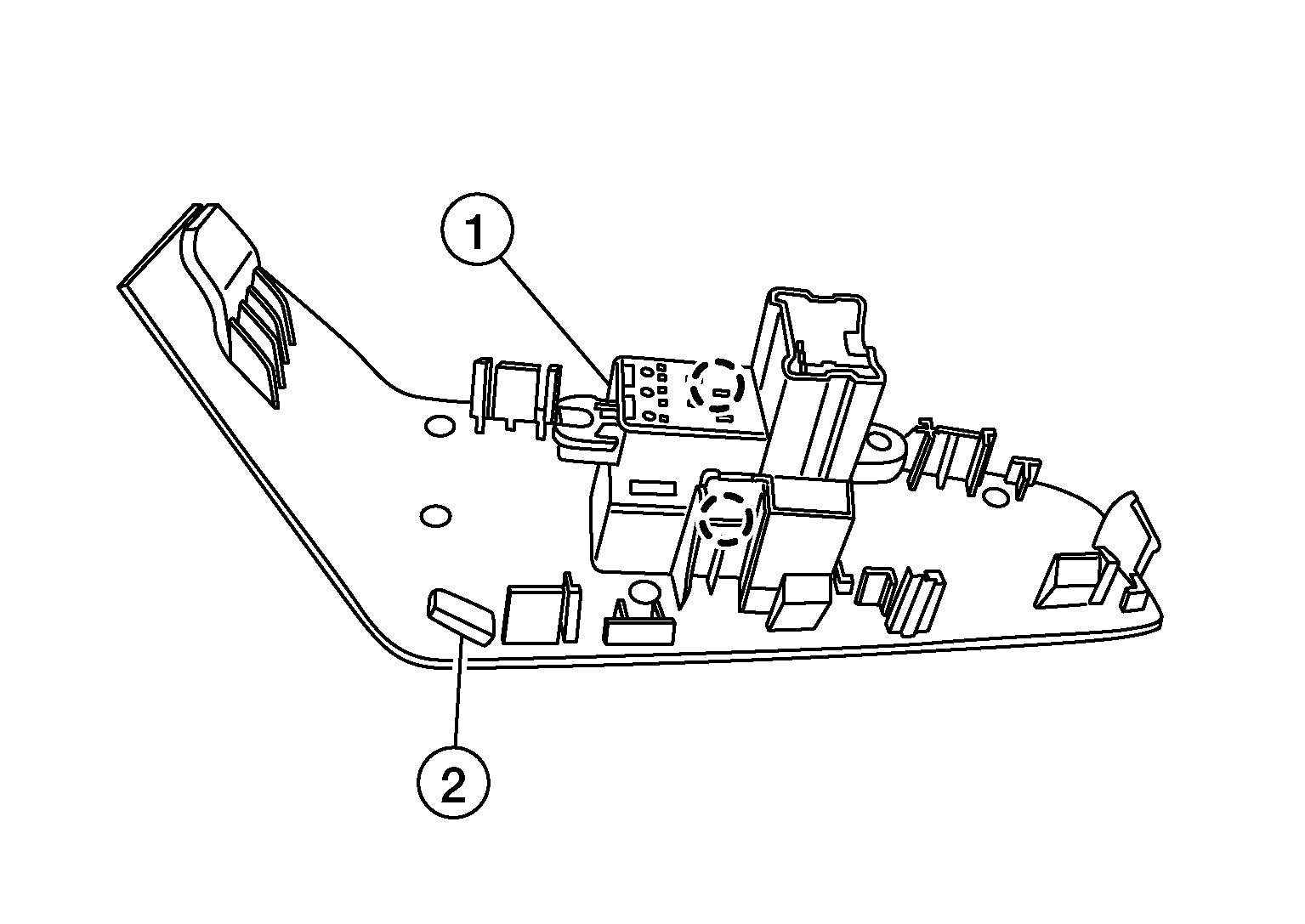

  3. Release pawls, then remove rear power window switch (1) from rear power window switch finisher (2).
    GNSALKIA3989Z-989Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
