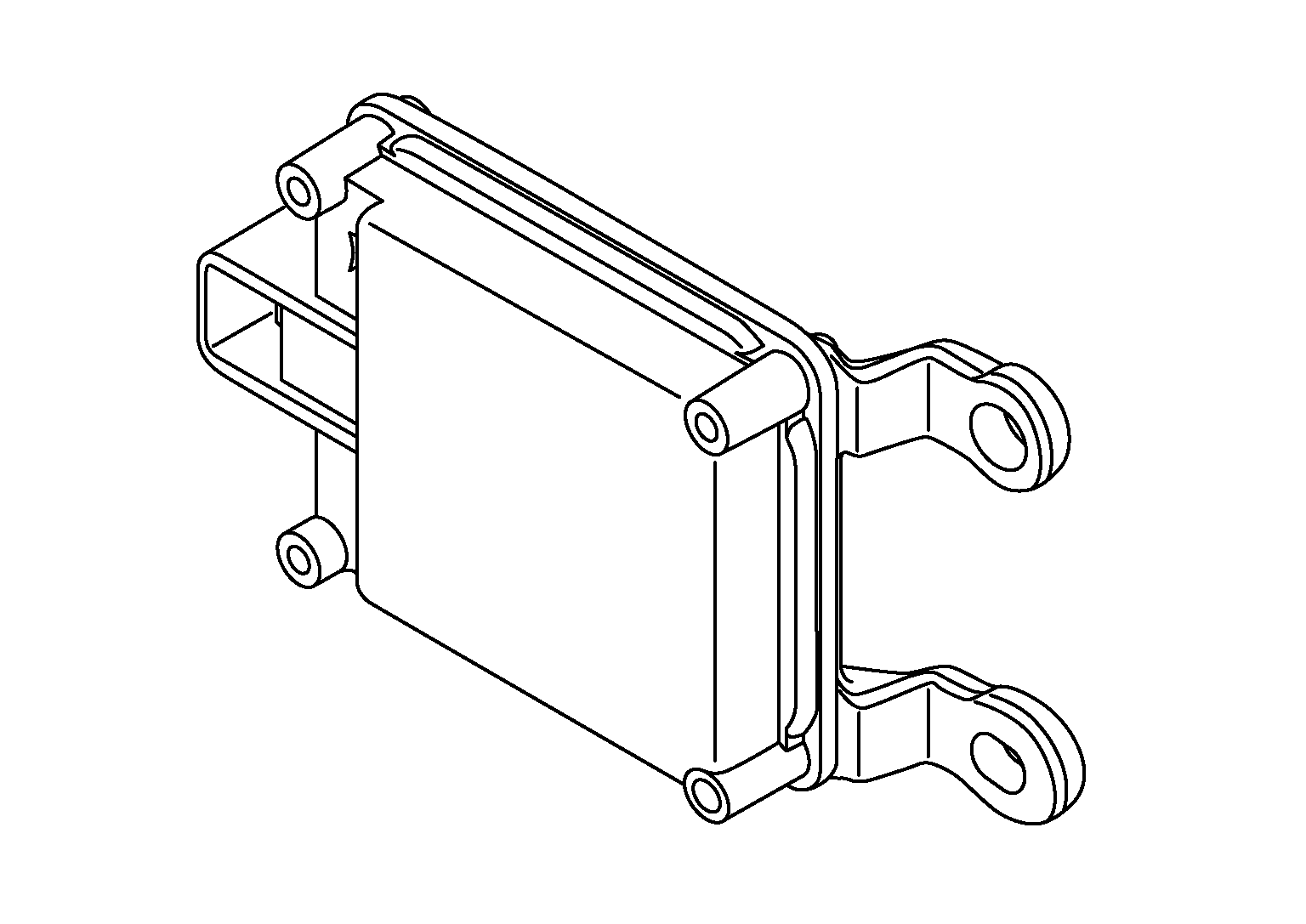

Distance Sensor (ICC Sensor)

Courtesy of NISSAN NORTH AMERICA, INC.

Distance sensor (ICC sensor) is installed on the back of the front grille and detects a vehicle ahead by using millimeter waves.
Distance sensor (ICC sensor) detects radar reflected from a vehicle ahead by irradiating radar forward and calculates a distance from the vehicle ahead and relative speed, based on the detected signal.
Distance sensor (ICC sensor)r transmits the presence/absence of vehicle ahead and the distance from the vehicle to ADAS control unit via CAN communication.
