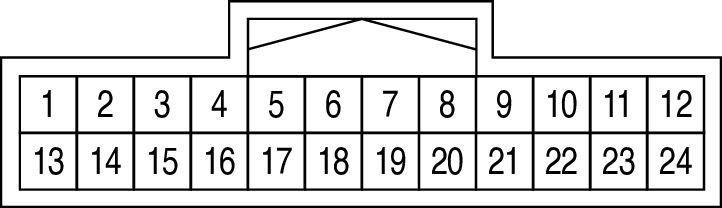

Chassis Control Module Connector End View (M181)
Connector Types:
TH24FW-NH
Connector Color:
WHITE
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
P |
CAN-L |
| 4 |
L |
CAN-H |
| 5 |
- |
- |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
Y |
ITS CAN-L |
| 9 |
- |
- |
| 10 |
BG |
IGN |
| 11 |
L |
ITS CAN-H |
| 12 |
B |
GND |
| 13 |
- |
- |
| 14 |
- |
- |
| 15 |
- |
- |
| 16 |
- |
- |
| 17 |
- |
- |
| 18 |
- |
- |
| 19 |
- |
- |
| 20 |
- |
- |
| 21 |
- |
- |
| 22 |
- |
- |
| 23 |
- |
- |
| 24 |
- |
- |
