FUEL PUMP CONTROL MODULE (FPCM) : Exploded View

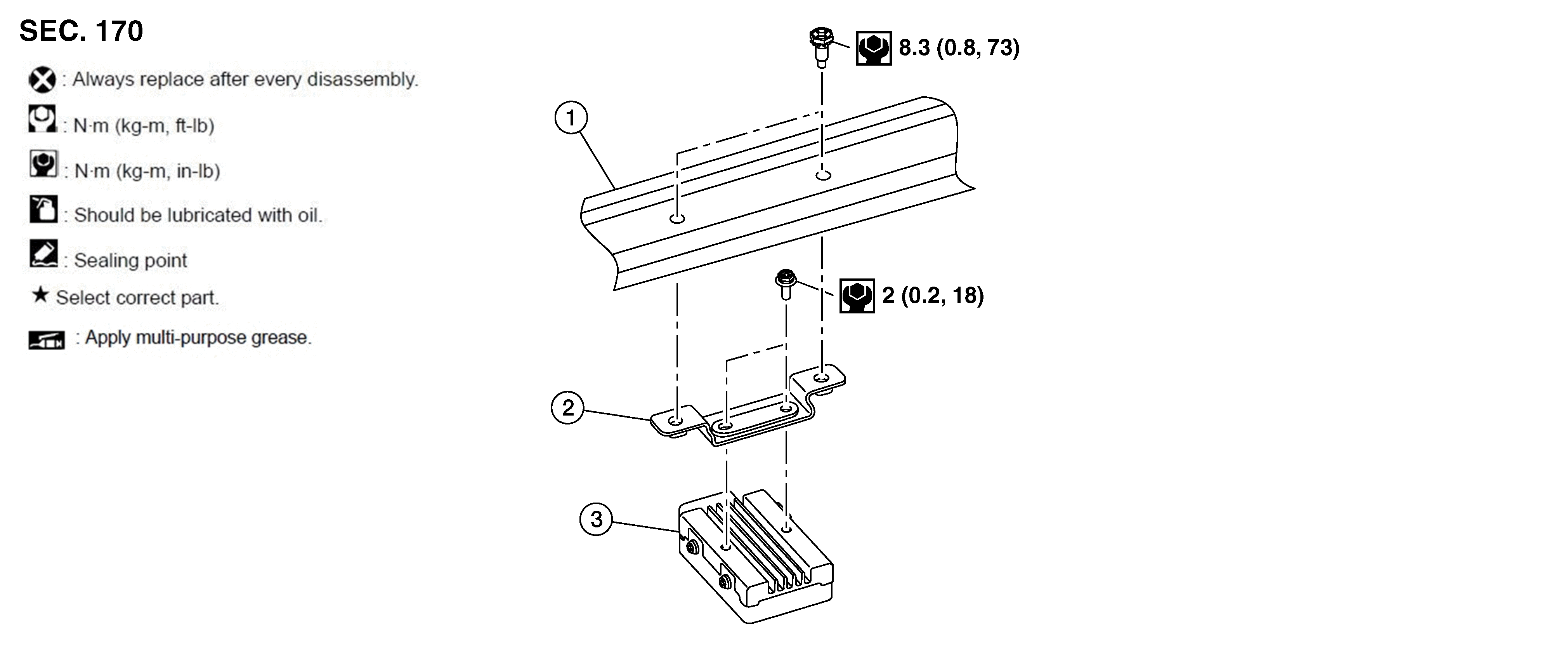

Fig 1: Fuel Pump Control Module (FPCM) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Reinforcement bracket
2.
Bracket
3.
Fuel pump control module (FPCM)
