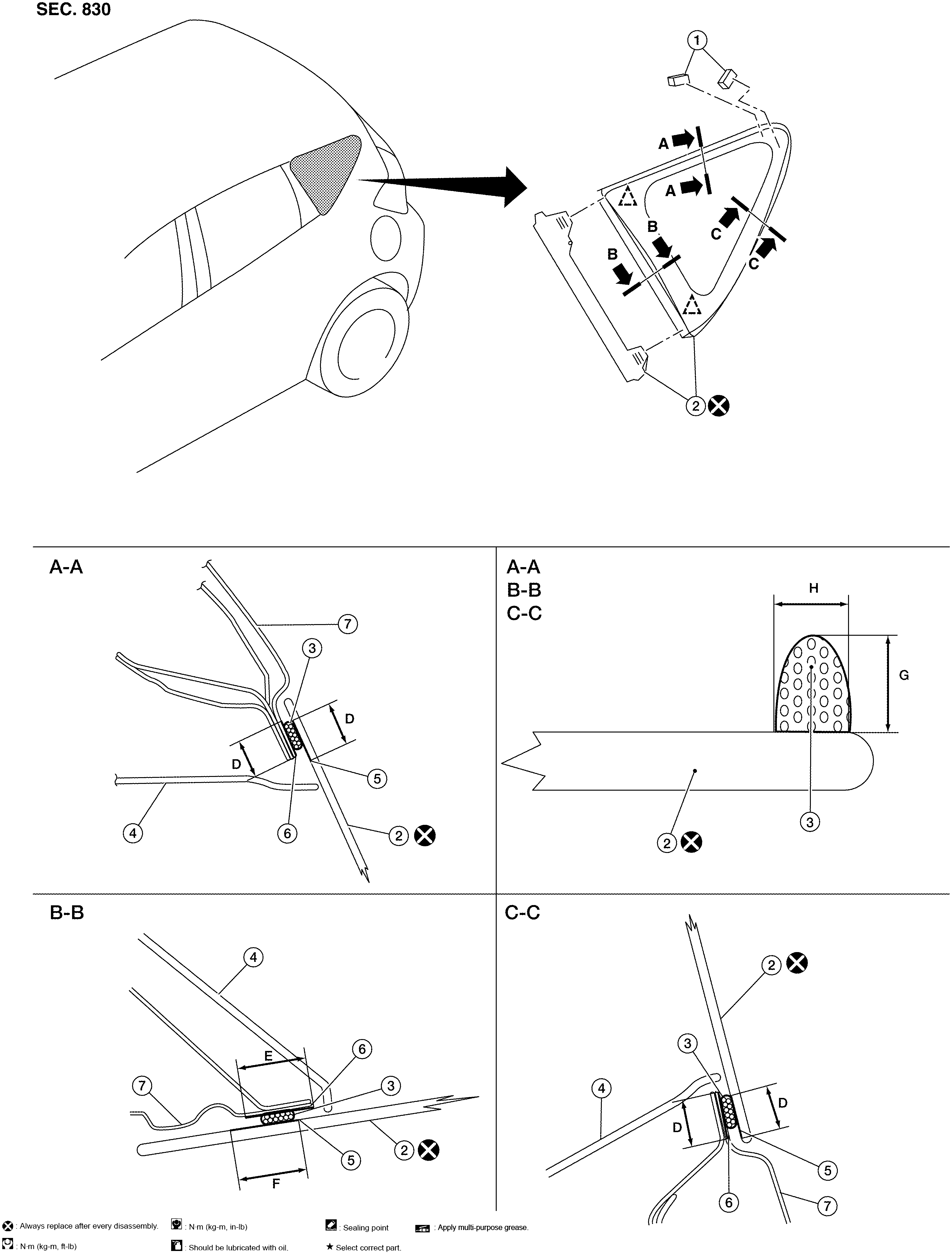

1.
Spacer
2.
Side window glass
3.
Adhesive
4.
Luggage side upper finisher
5.
Primer
6.
Body primer
7.
Body side outer
D.
15.0 mm (0.59 in)
E.
22.4 mm (0.88 in)
F.
24.0 mm (0.94 in)
G.
12.0 mm (0.47 in)
H.
7.0 mm (0.28 in)
Clip
