Home >> Nissan-Datsun >> 2018 >> Pathfinder SL, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System >> LH & RH Front Auto Up/Down >> System Description >> System >> SystemDiagram

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

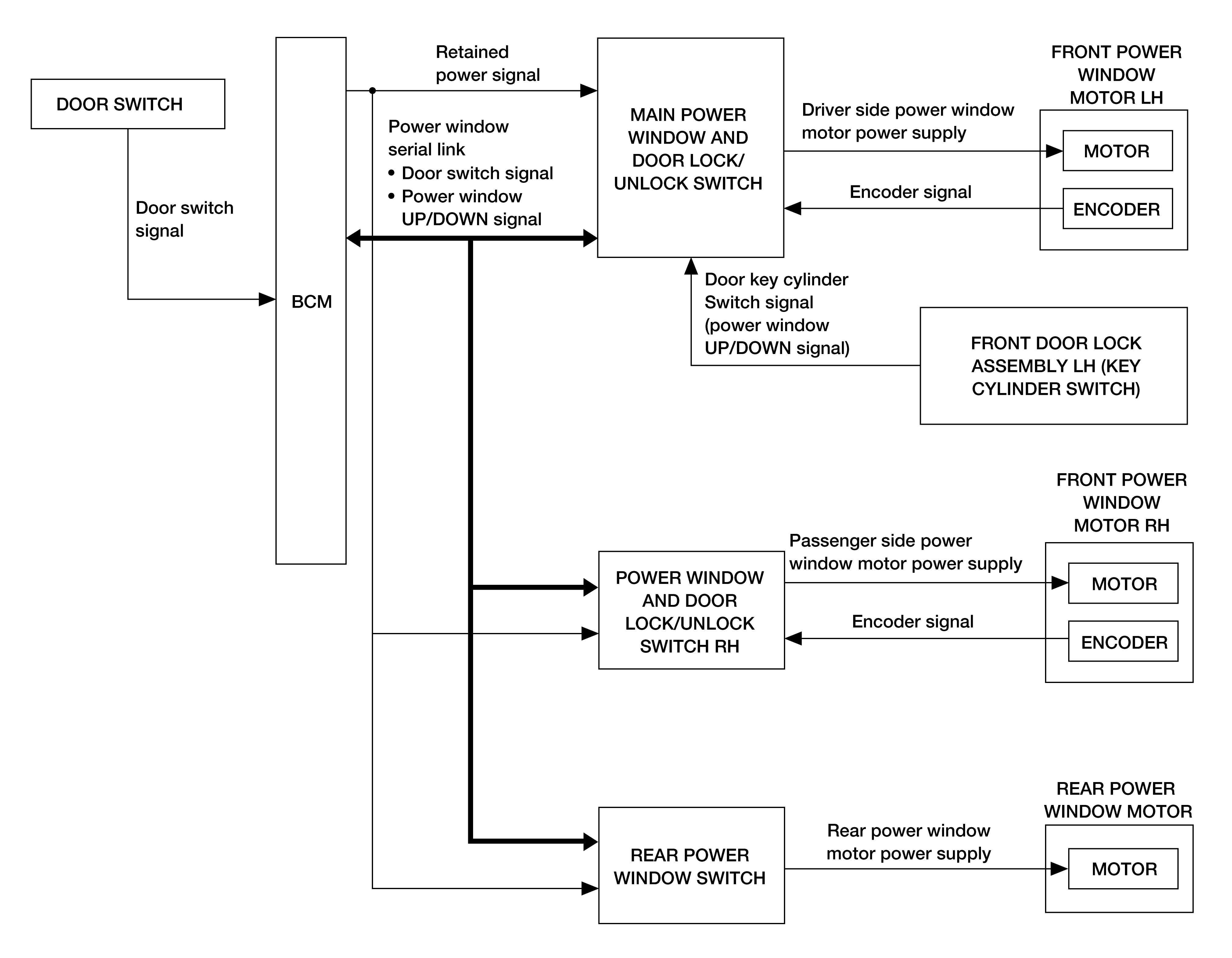

System Description: System: SystemDiagram

G08946466

Courtesy of NISSAN NORTH AMERICA, INC.
