Exploded View

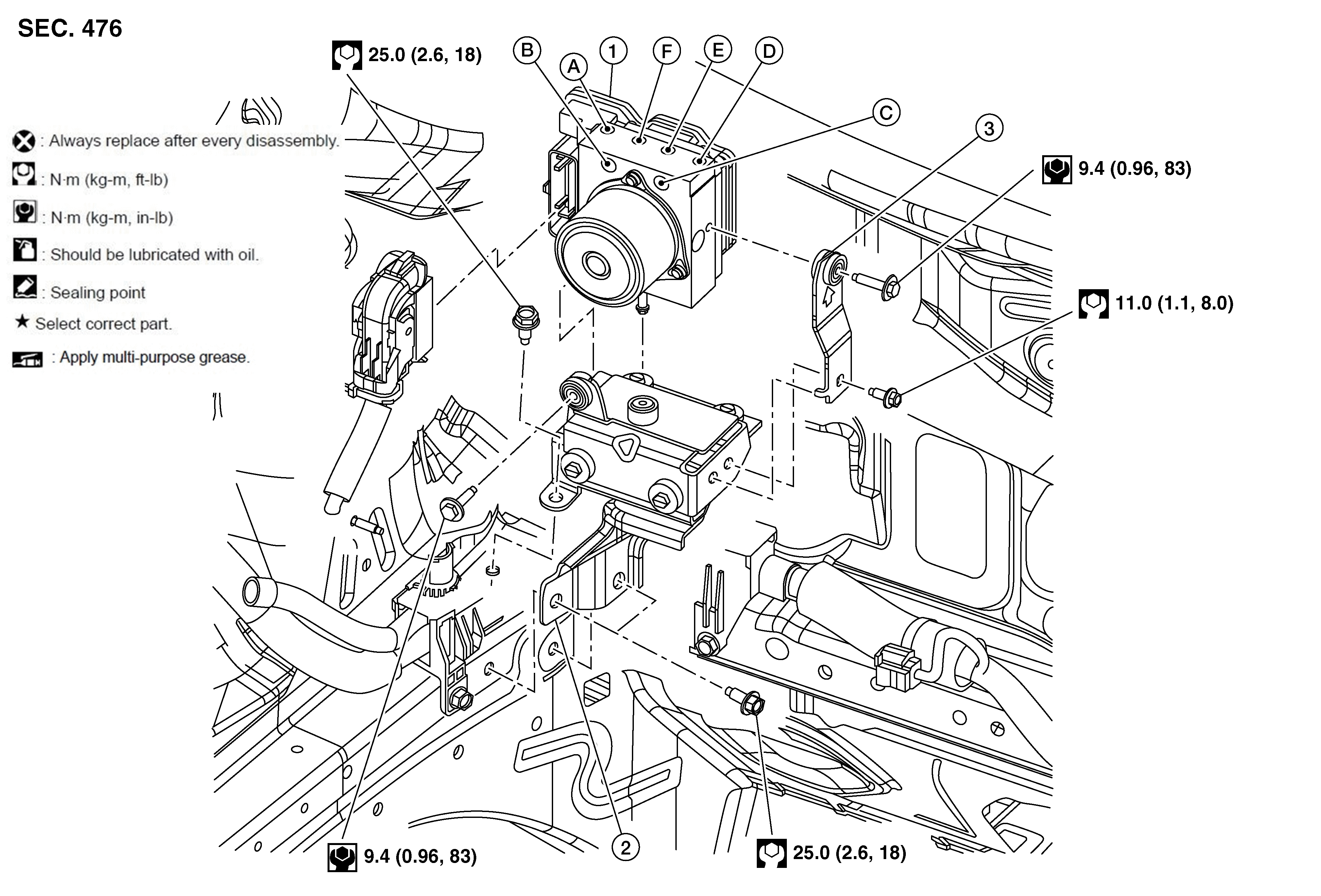

Fig 1: ABS Actuator And Electric Unit (Control Unit) Replacement Components With Torque Specifications
|
1. |
ABS Actuator And Electric Unit (Control Unit) |
2. |
Actuator bracket assembly (lower) |
3. |
Actuator bracket (side) |
|
A. |
To front caliper (RH). Refer to Exploded View . |
B. |
To electrically-driven intelligent brake unit secondary side. Refer to Exploded View . |
C. |
To electrically-driven intelligent brake unit primary side. Refer to Exploded View . |
|
D. |
To front caliper (LH). Refer to Exploded View . |
E. |
To rear caliper (RH). Refer to Exploded View . |
F. |
To rear caliper (LH). Refer to Exploded View . |
