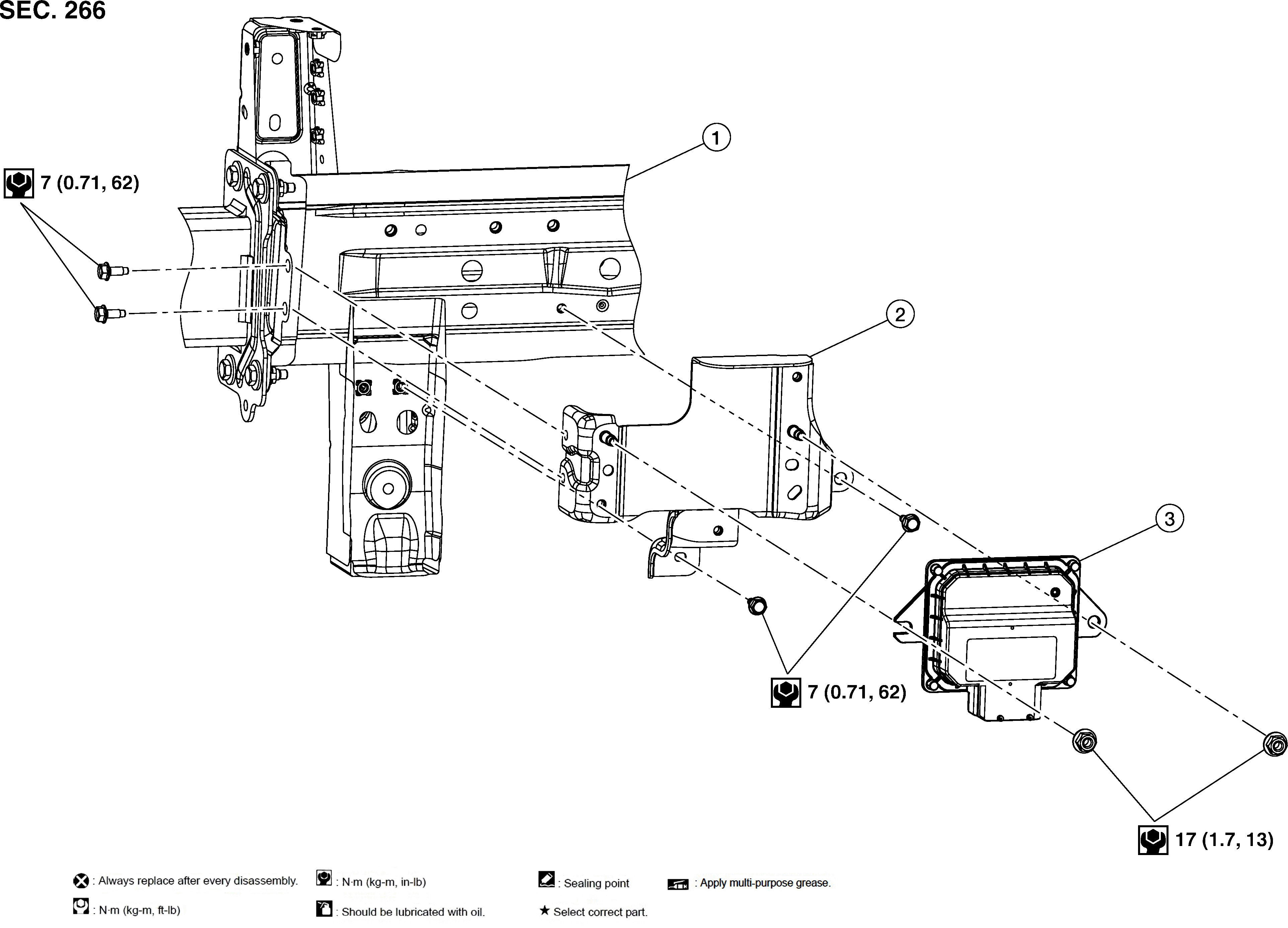

Exploded View

GNSALBIA0347Z-347Courtesy of NISSAN NORTH AMERICA, INC.

1.

Side member

2.

Electric intake valve timing control module bracket

3.

Electric intake valve timing control module
