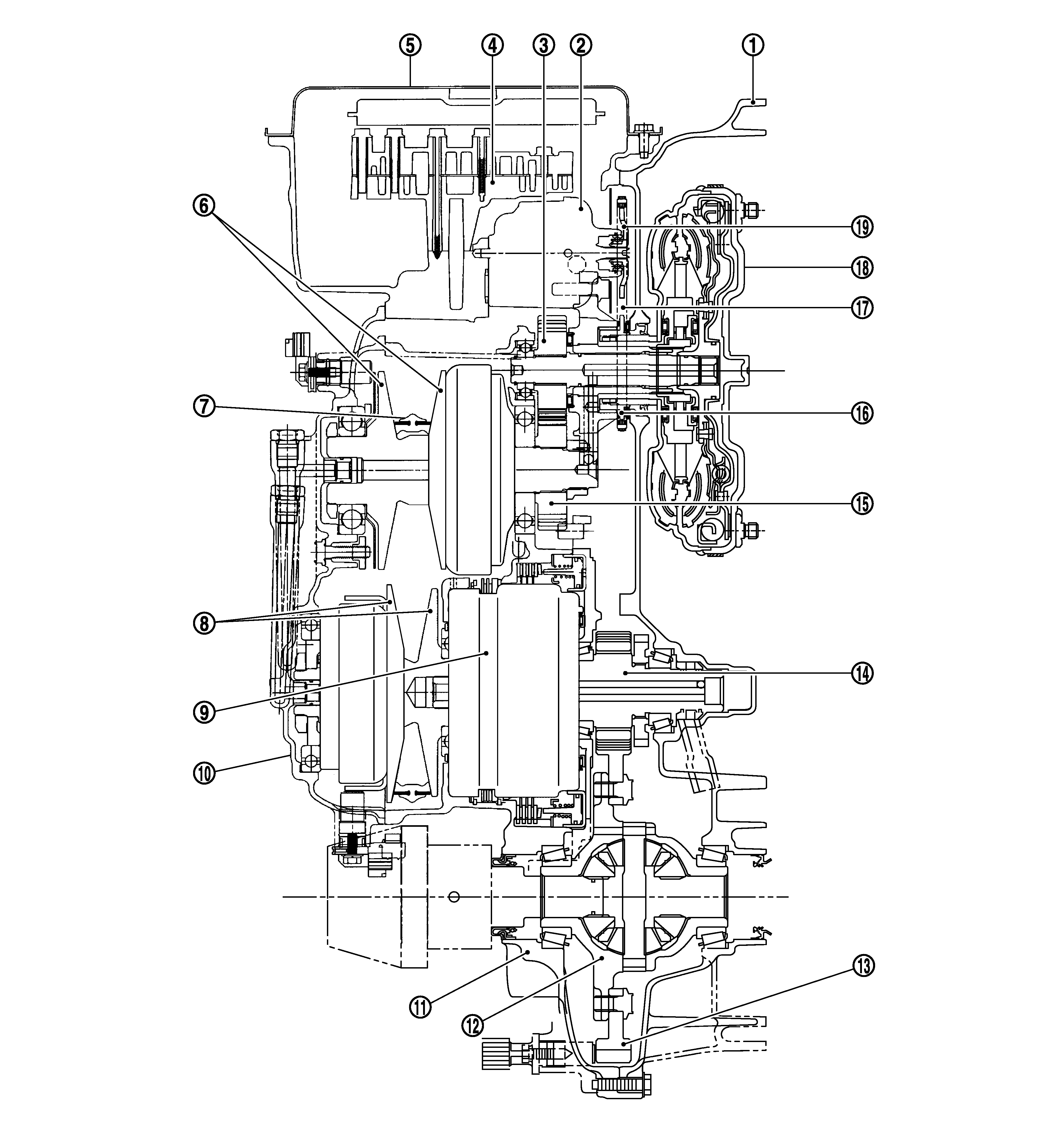

Cross-Sectional View
| 1. | Converter housing | 2. | Oil pump | 3. | Counter drive gear |
| 4. | Control valve | 5. | Oil pan | 6. | Primary pulley |
| 7. | Steel belt | 8. | Secondary pulley | 9. | Planetary gear (auxiliary gearbox) |
| 10. | Side cover | 11. | Transaxle case | 12. | Differential case |
| 13. | Final gear | 14. | Reduction gear | 15. | Counter driven gear |
| 16. | Drive sprocket | 17. | Oil pump chain | 18. | Torque converter |
| 19. | Driven sprocket |
