Exploded View

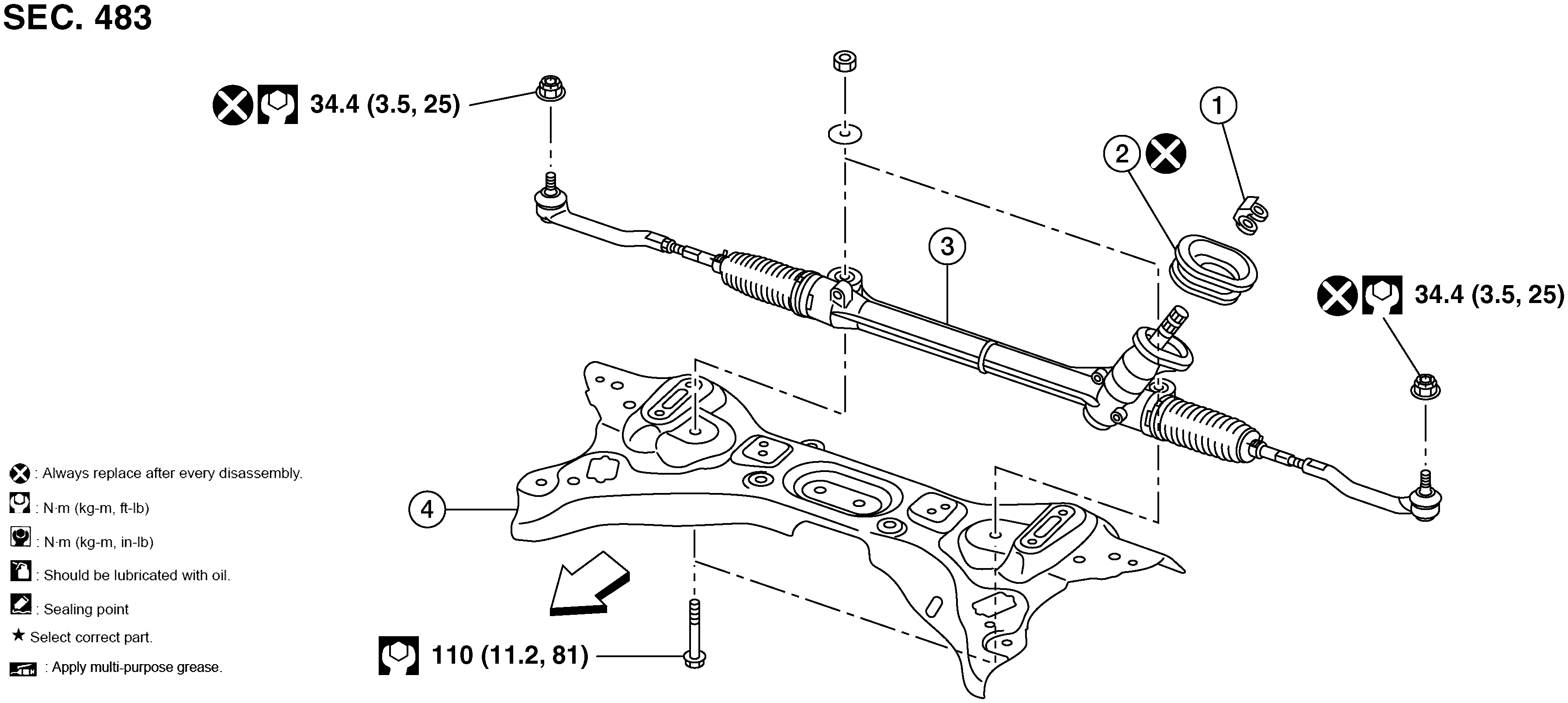

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSAWGIA0510ZZ-510Courtesy of NISSAN NORTH AMERICA, INC.
1. Guide 2. Cowl seal 3. Steering gear
4. Front suspension member ARROW Front
