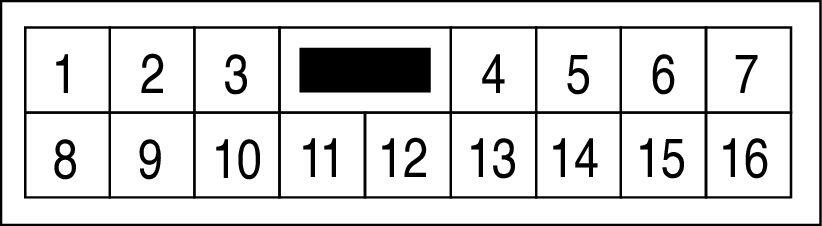

WIRE TO WIRE Connector End View (B29)
Connector Color:
WHITE
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
G |
- |
| 2 |
Y |
- |
| 3 |
SB |
- |
| 4 |
GR |
- |
| 5 |
BG |
- |
| 6 |
B |
- |
| 7 |
W |
- |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
GR |
- |
| 11 |
LG |
- |
| 12 |
G |
- |
| 13 |
SB |
- |
| 14 |
R |
- |
| 15 |
R/L |
- |
| 16 |
L |
- |

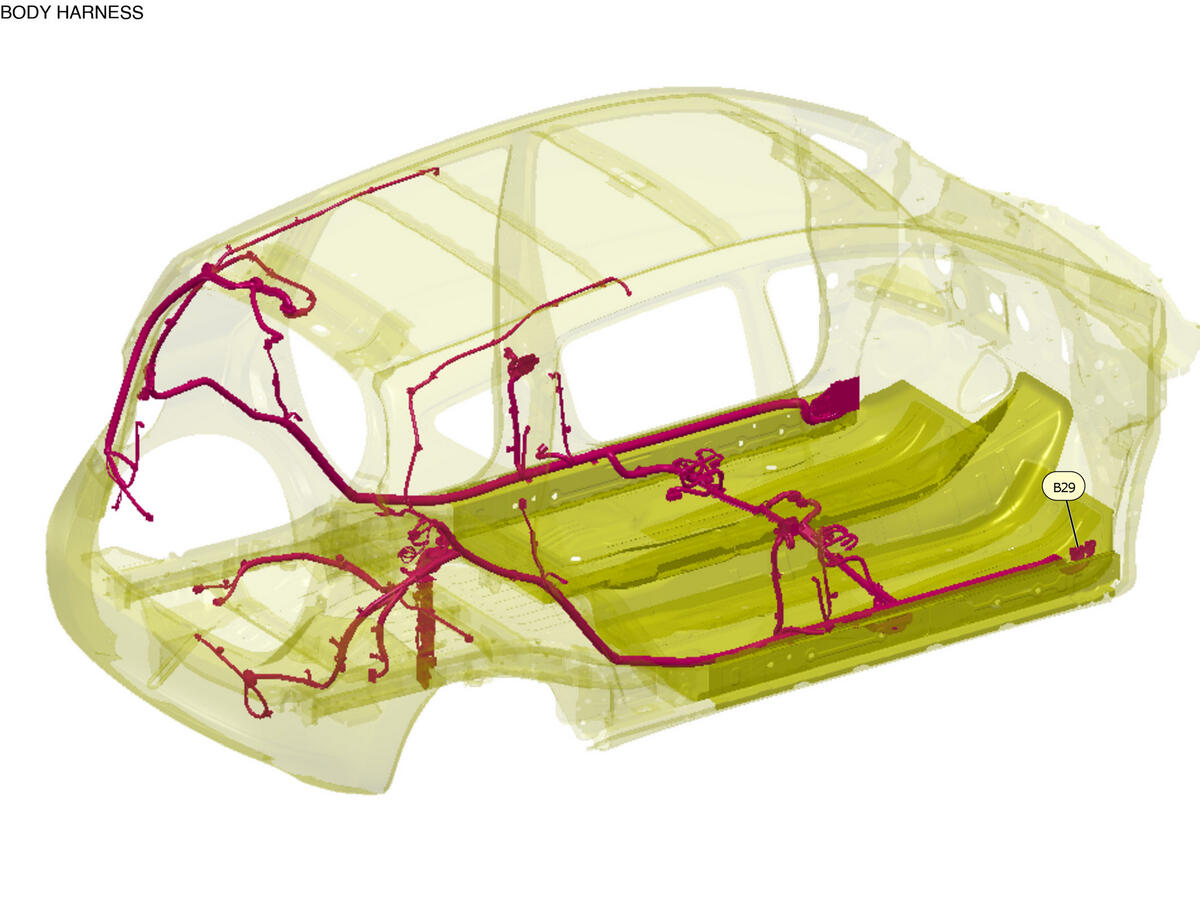

Harness Layout
Courtesy of NISSAN NORTH AMERICA, INC.
Connector Types:
NS16MW-CS
