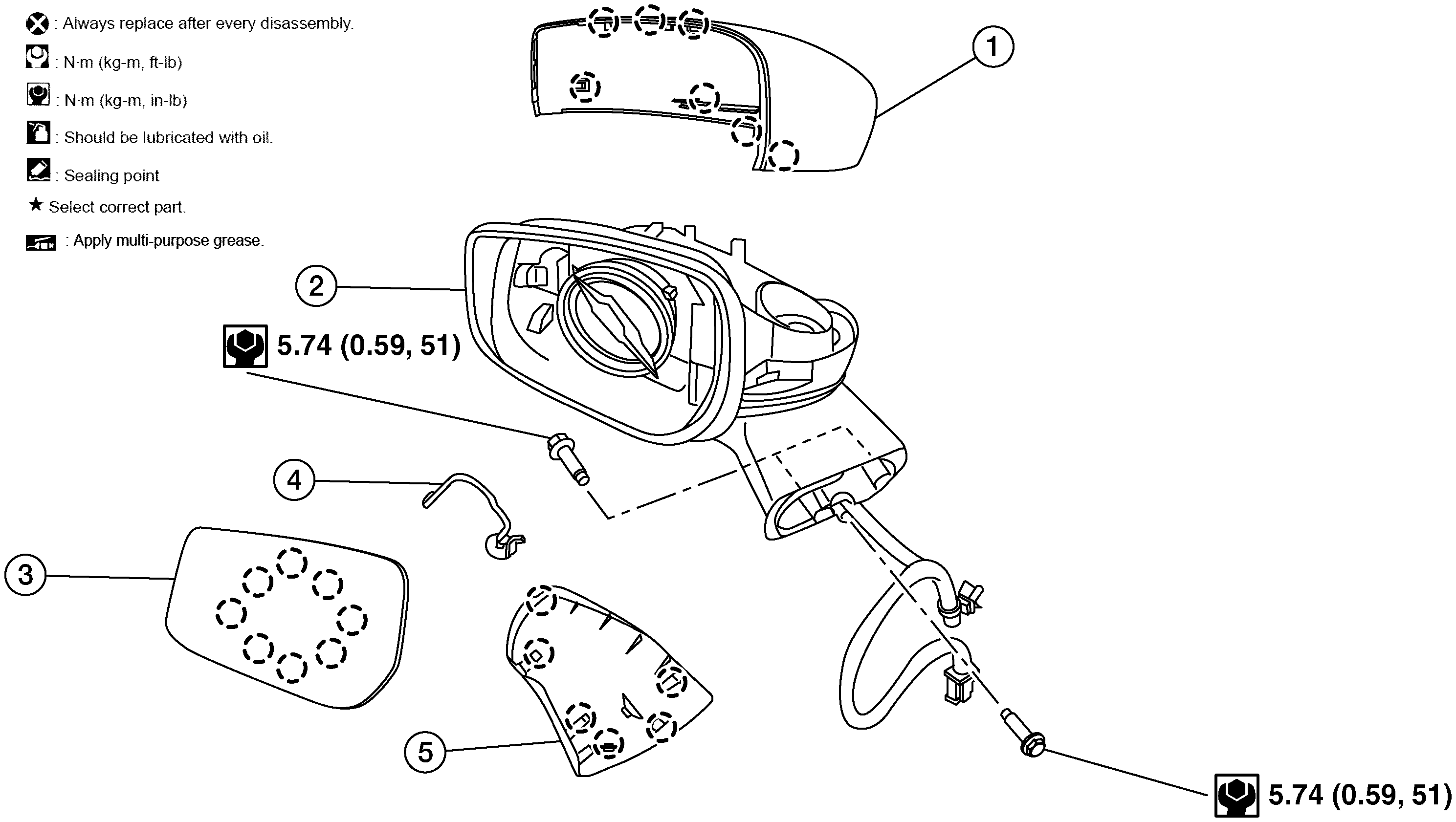

Exploded View With Torque Specifications

GNSAWLIA3073ZZ-073Courtesy of NISSAN NORTH AMERICA, INC.
1. Door mirror rear finisher 2. Door mirror 3. Door mirror glass
4. Side camera 5. Door mirror base finisher MARU-H Pawl
