WIRE TO WIRE Connector End View (E302)

Connector Color:  BLACK

Fig 1: Terminal-side
GNSW89957Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Harness-side
GNSW89956Courtesy of NISSAN NORTH AMERICA, INC.
Terminal No. Color of Wire Signal Name (Specification)
1 L -
2 B -
3 - -
4 BR -

Harness Layout

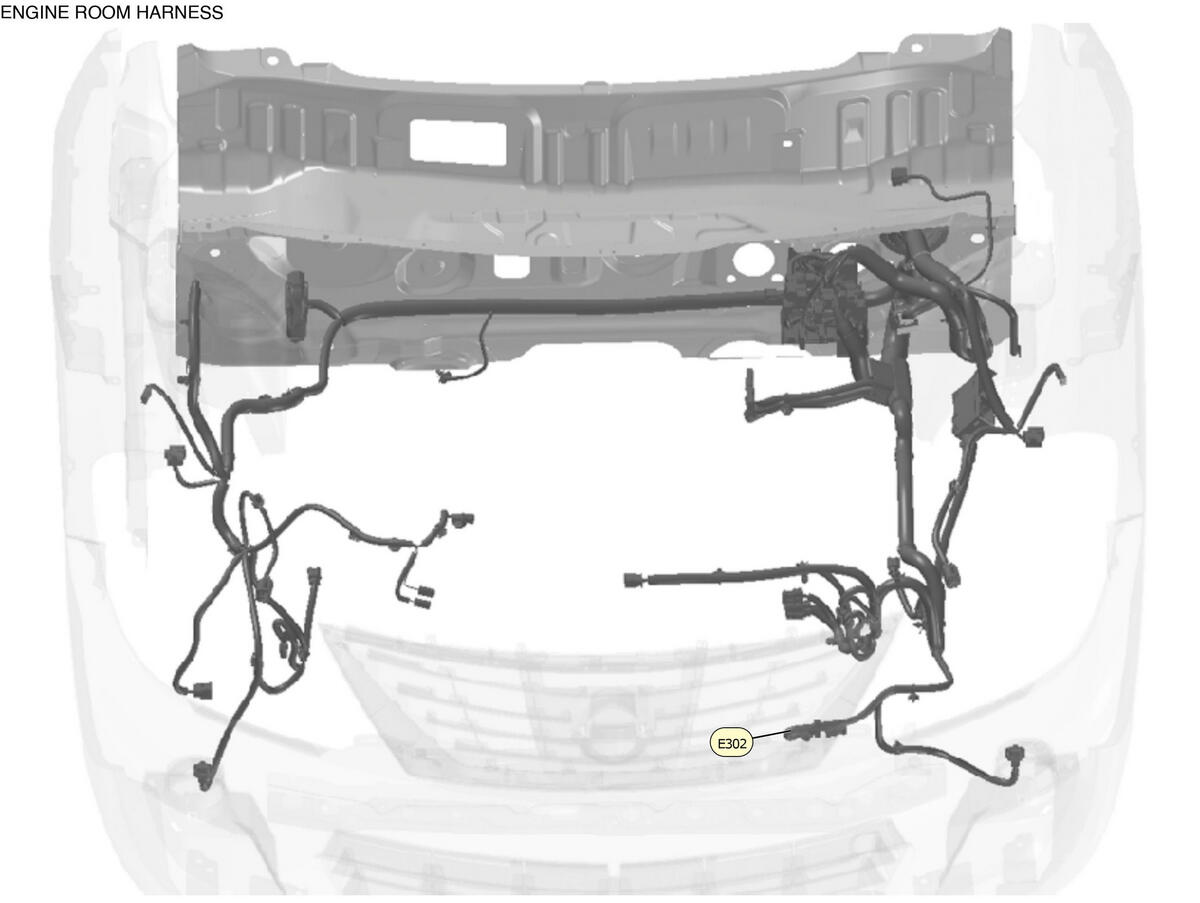

Fig 3: ENGINE ROOM HARNESS
GNSW90109_LK_E302Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types:  RS04MB
