A/C COMPRESSOR Connector End View (F3)

Connector Color: BLACK

Fig 1: Terminal-side

GNSW89949

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

GNSW89948

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
1	V	AC-COMP

Circuit Diagram

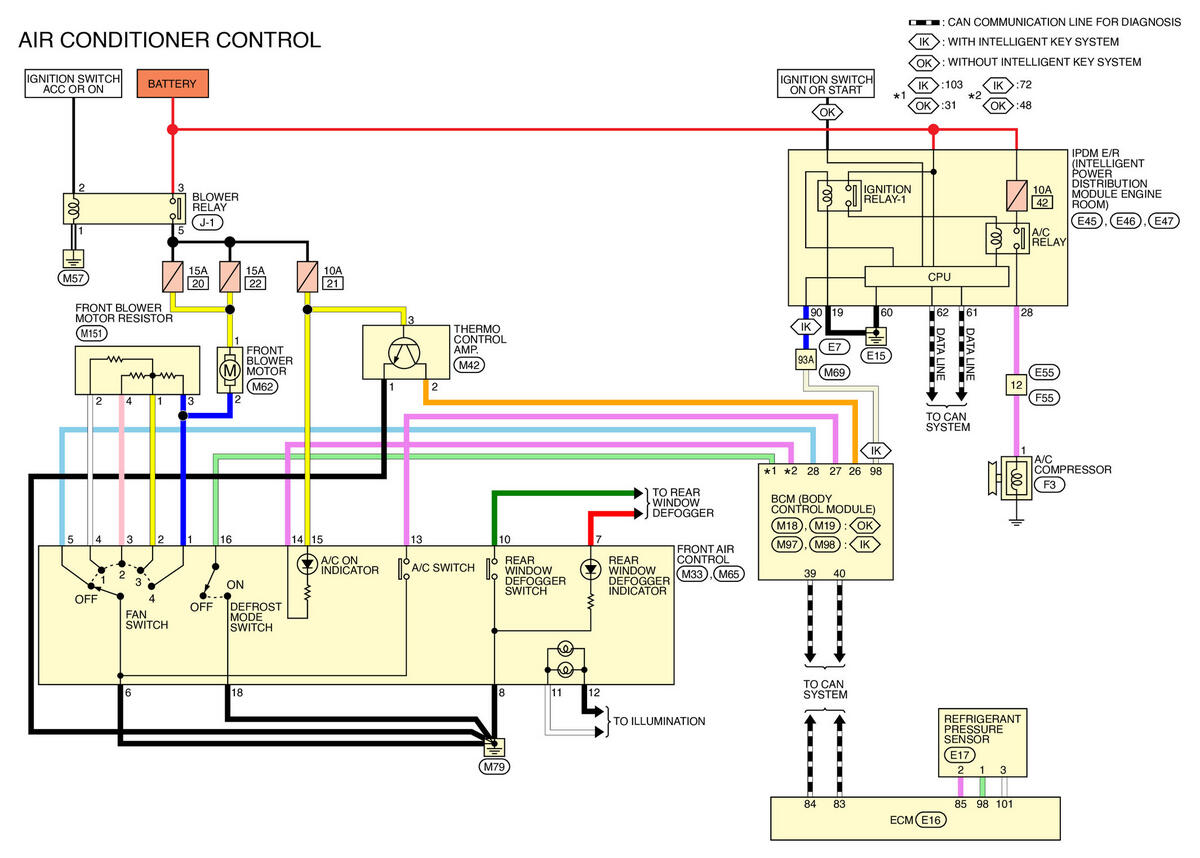

Fig 3: AIR CONDITIONER CONTROL

GNSW89694

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

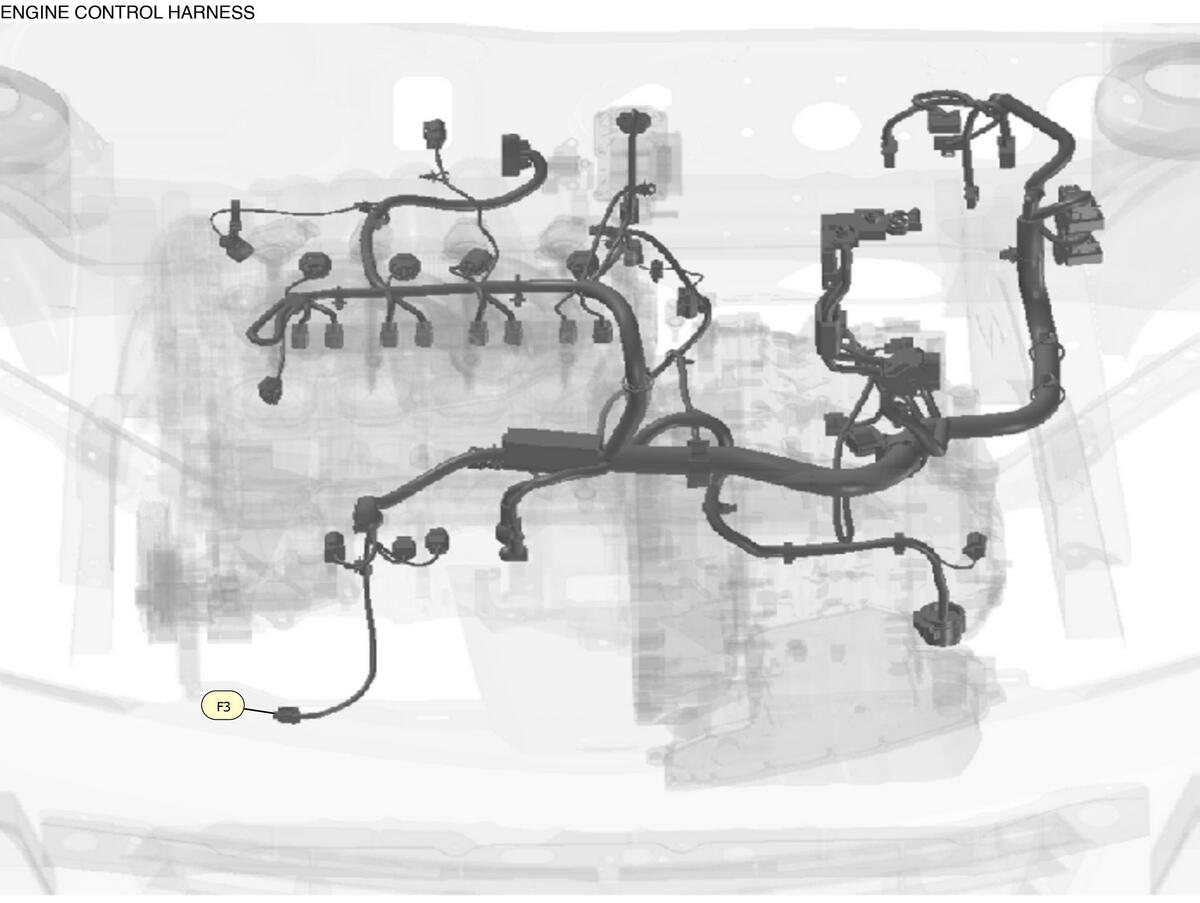

Fig 4: ENGINE CONTROL HARNESS

GNSW90111_LK_F003

Courtesy of NISSAN NORTH AMERICA, INC.

Power Source

Fig 5: IGNITION POWER SUPPLY

GNSW90131

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: RS01FB
