Engine Cooling System Schematic

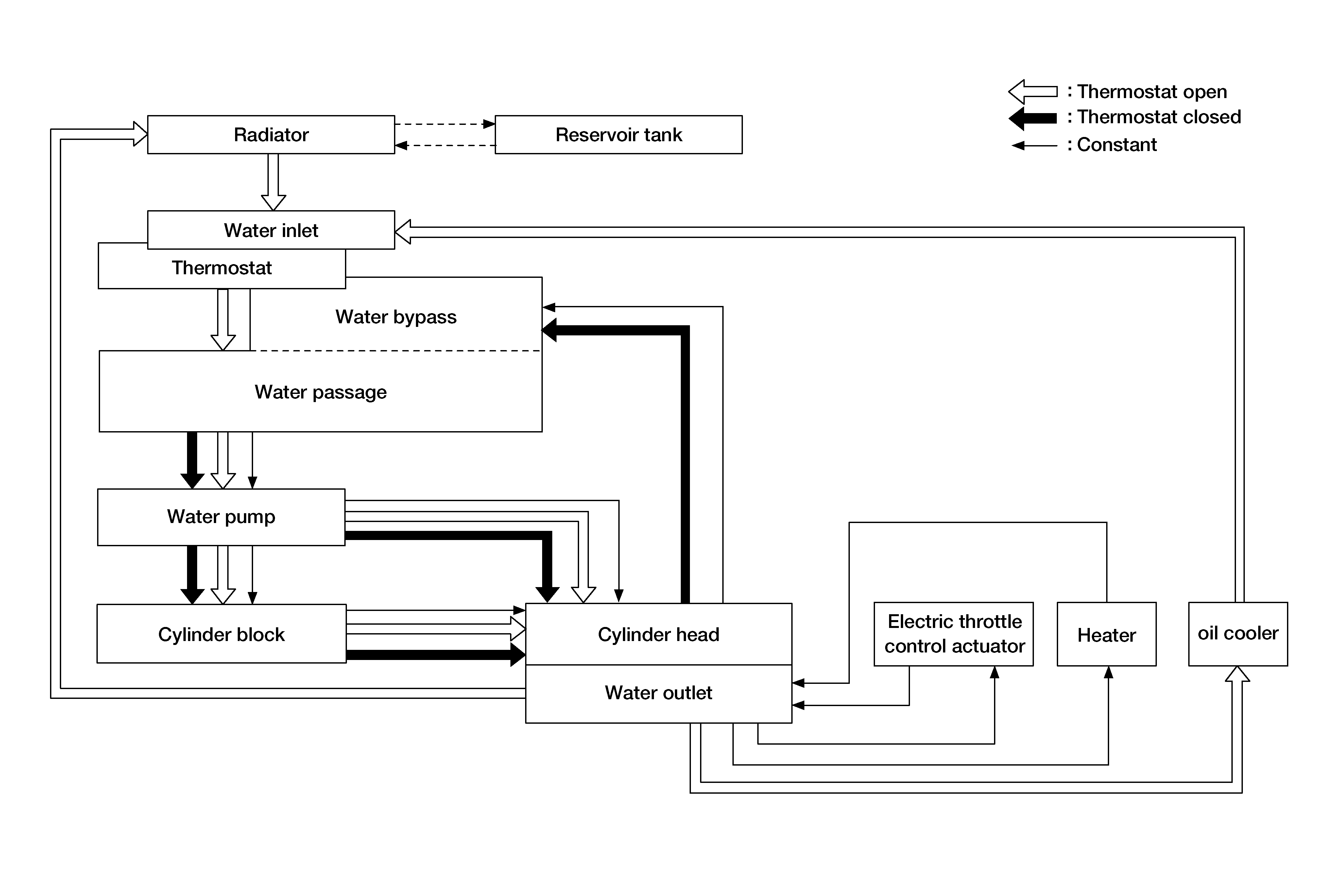

M/T models

GNSAWBIA3340ZZ-340Courtesy of NISSAN NORTH AMERICA, INC.

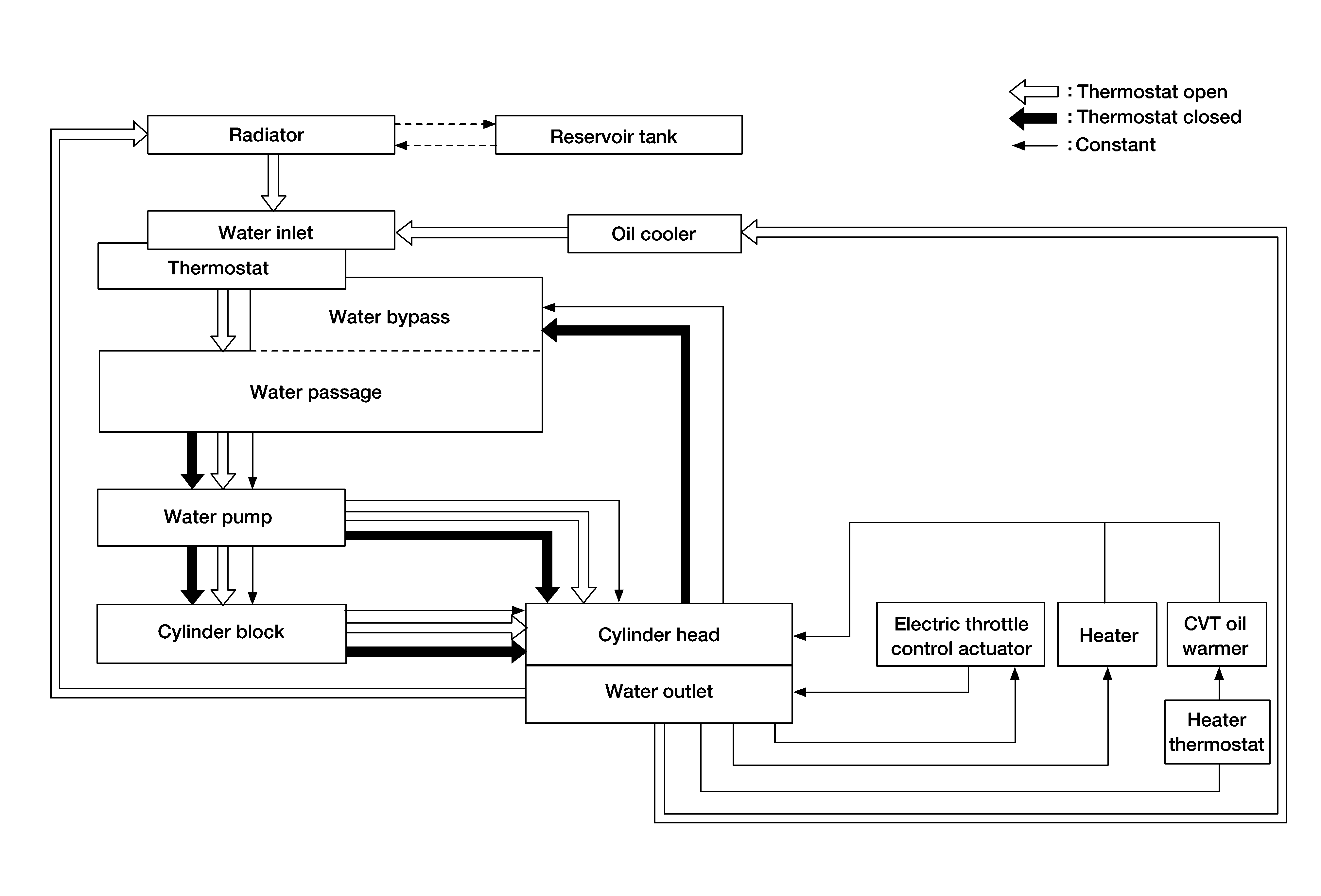

CVT models

GNSAWBIA2589ZZ-589Courtesy of NISSAN NORTH AMERICA, INC.
