COMBINATION SWITCH (SPIRAL CABLE) Connector End View (M30)

Connector Color: GRAY

Fig 1: Terminal-side

GNSW90055

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Harness-side

GNSW90054

Courtesy of NISSAN NORTH AMERICA, INC.

Terminal No.	Color of Wire	Signal Name (Specification)
21	-	-
22	B	SENSOR GROUND (ASCD STEERING SWITCH)
24	LG	AUDIO STRG SW REMOTE A (WITH BASE AUDIO SYSTEM)
24	SB	AUDIO STRG SW REMOTE A (WITH NAVIGATION AND DISPLAY AUDIO SYSTEM)
25	-	-
27	Y	ASCD STEERING SWITCH
31	R	AUDIO STRG SW REMOTE B (WITH BASE AUDIO SYSTEM)
31	V	AUDIO STRG SW REMOTE B (WITH NAVIGATION AND DISPLAY AUDIO SYSTEM)
32	LG	SATELLITE SW
33	L	AUDIO STRG SW GND (WITH BASE AUDIO SYSTEM)
33	G	AUDIO STRG SW GND (WITH NAVIGATION AND DISPLAY AUDIO SYSTEM)

Circuit Diagram

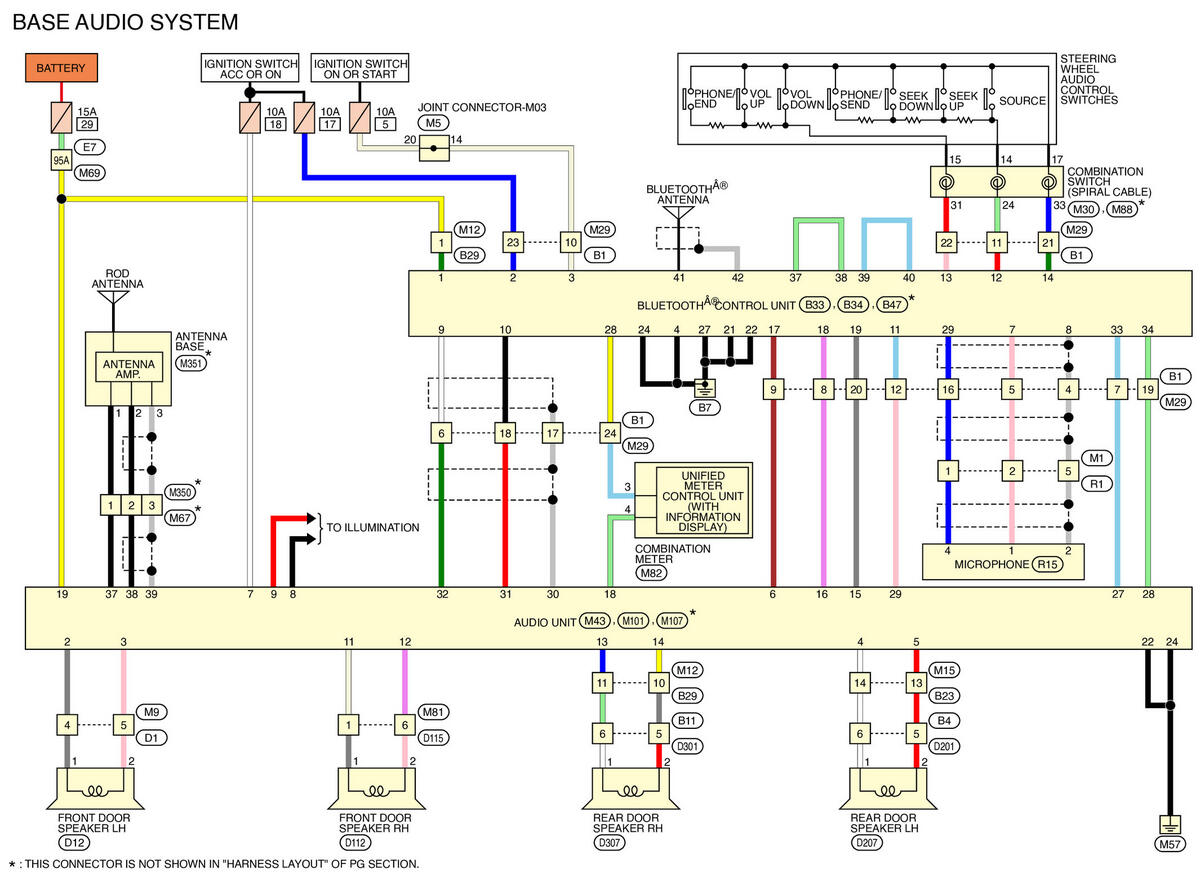

Fig 3: BASE AUDIO SYSTEM

GNSW89728

Courtesy of NISSAN NORTH AMERICA, INC.

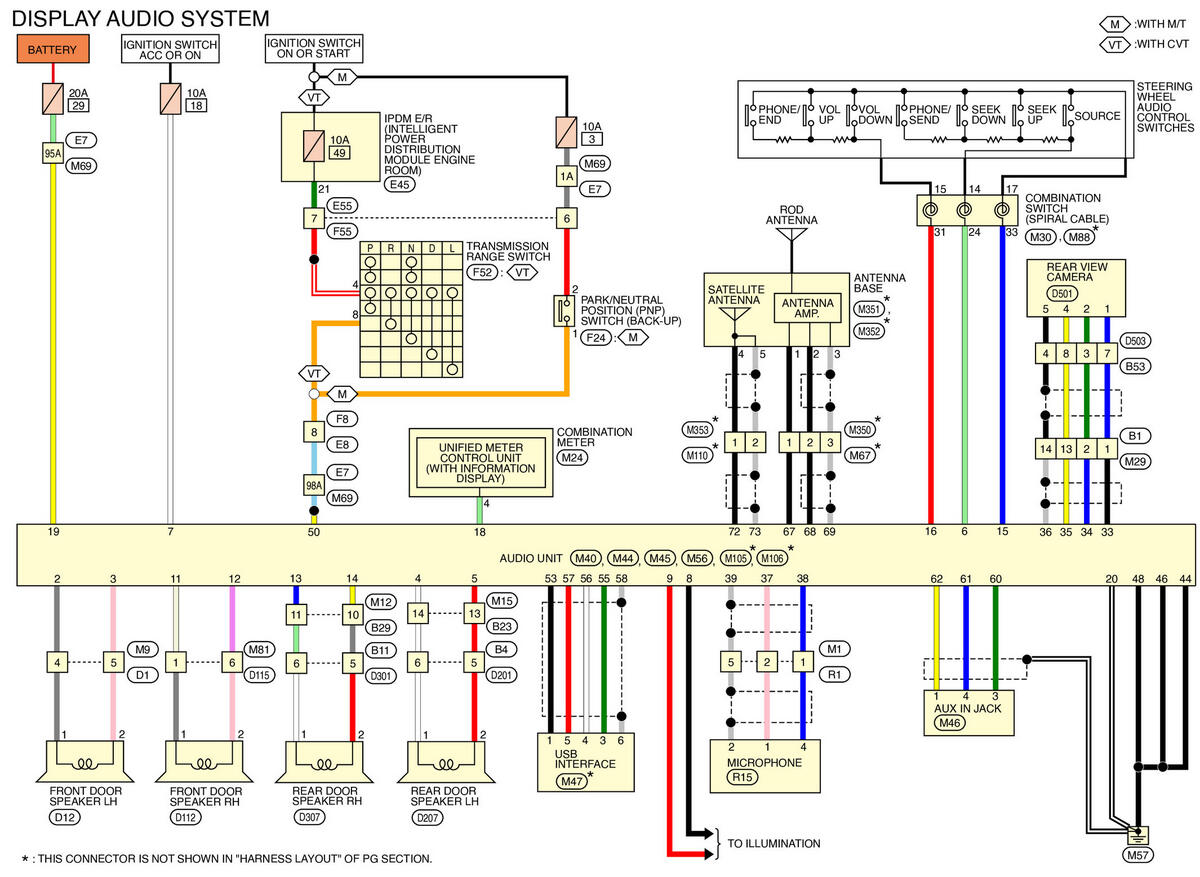

Fig 4: DISPLAY AUDIO SYSTEM

GNSW89729

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: NAVIGATION SYSTEM

GNSW89730

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: METER - TYPE B

GNSW89731

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: ENGINE CONTROL SYSTEM

GNSW89732

Courtesy of NISSAN NORTH AMERICA, INC.

Harness Layout

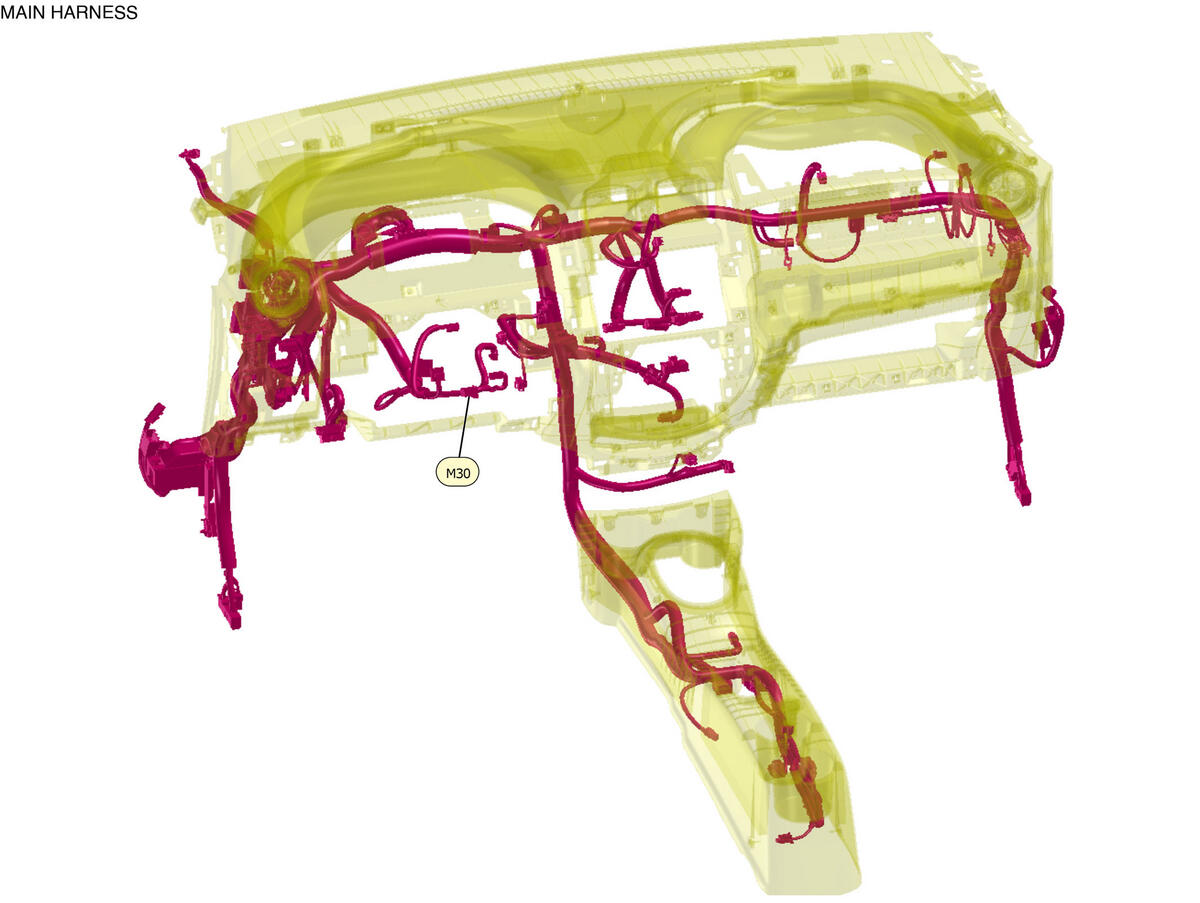

Fig 8: MAIN HARNESS

GNSW90108_LK_M030

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Types: TK08FGY-1V
