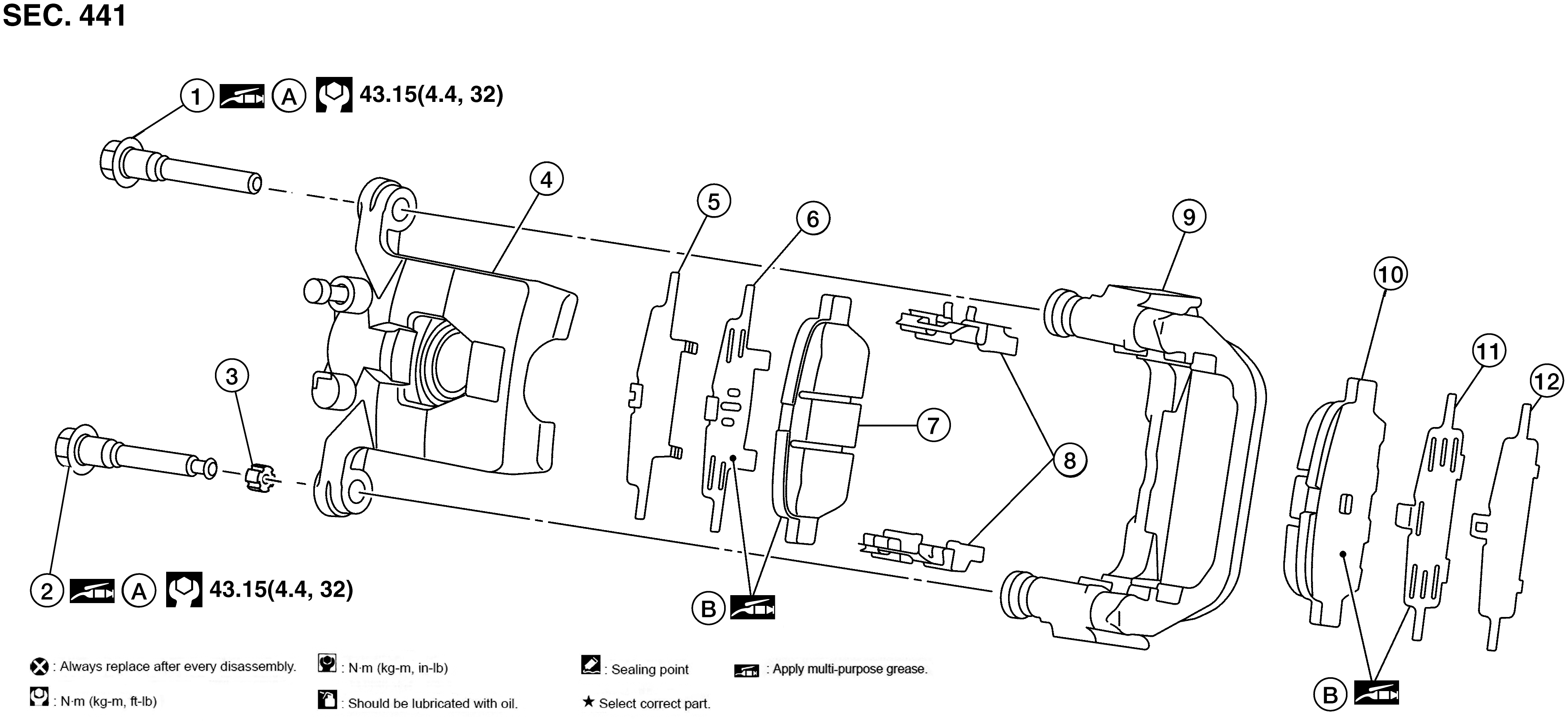

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Upper sliding pin bolt |
2. |
Lower sliding pin bolt |
3. |
Bushing |
| 4. |
Cylinder body |
5. |
Inner shim cover |
6. |
Inner shim |
| 7. |
Inner pad (with pad wear sensor) |
8. |
Pad retainer |
9. |
Torque member |
| 10. |
Outer pad |
11. |
Outer shim |
12. |
Outer shim cover |
| A. |
Apply rubber grease |
B. |
Molykote AS880N |
|
|
