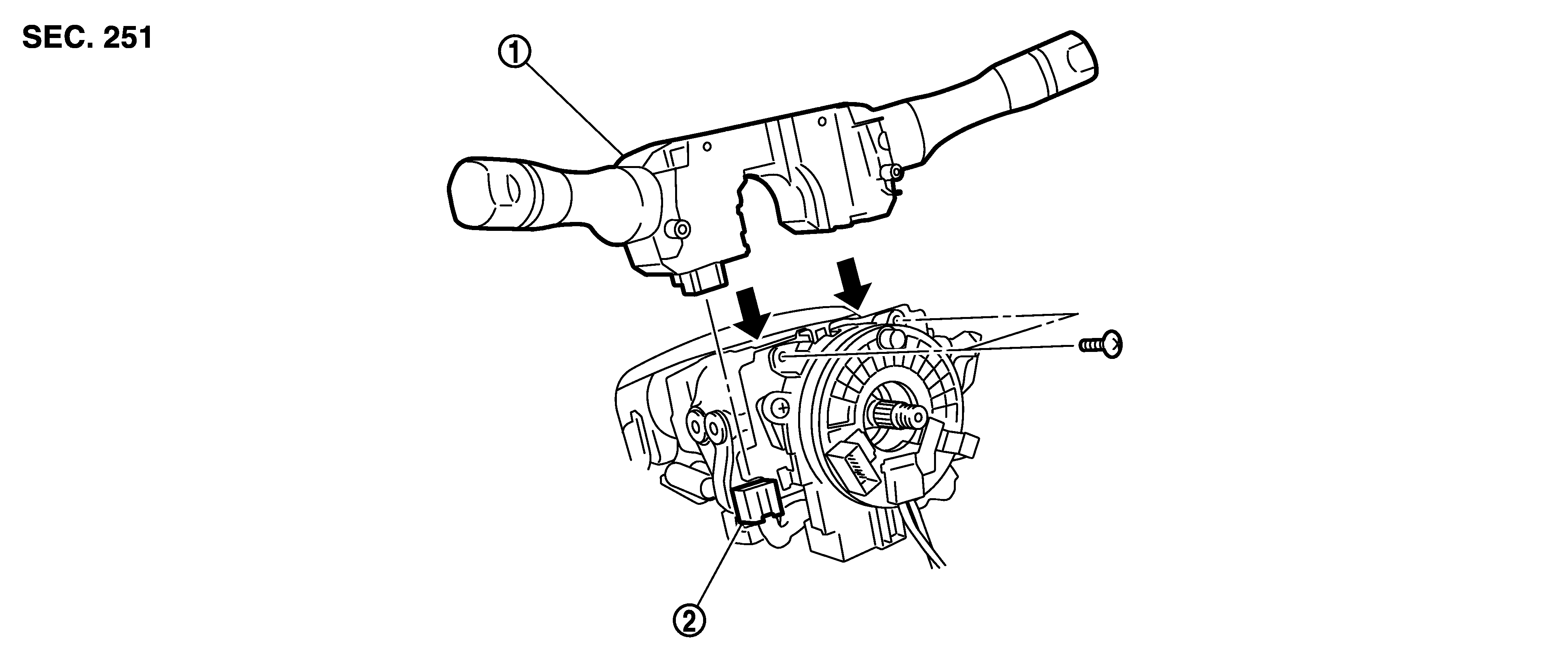

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Combination switch |
2. |
Combination switch harness connector |
|
|
NOTE:
Shown with the steering wheel removed for clarity only.
