ICC Sensor Alignment: Preparation

1. Adjust all tire pressures to the specified value.
2. Empty the vehicle. (Remove any luggage from the passenger compartment, luggage room, etc.)
3. Shift the selector lever to "P" position, and release the parking brake.
4. Fully fill the fuel tank, and then check that the coolant and oils are filled to correct level.
5. Clean off the front of the ICC sensor.
   NOTE:

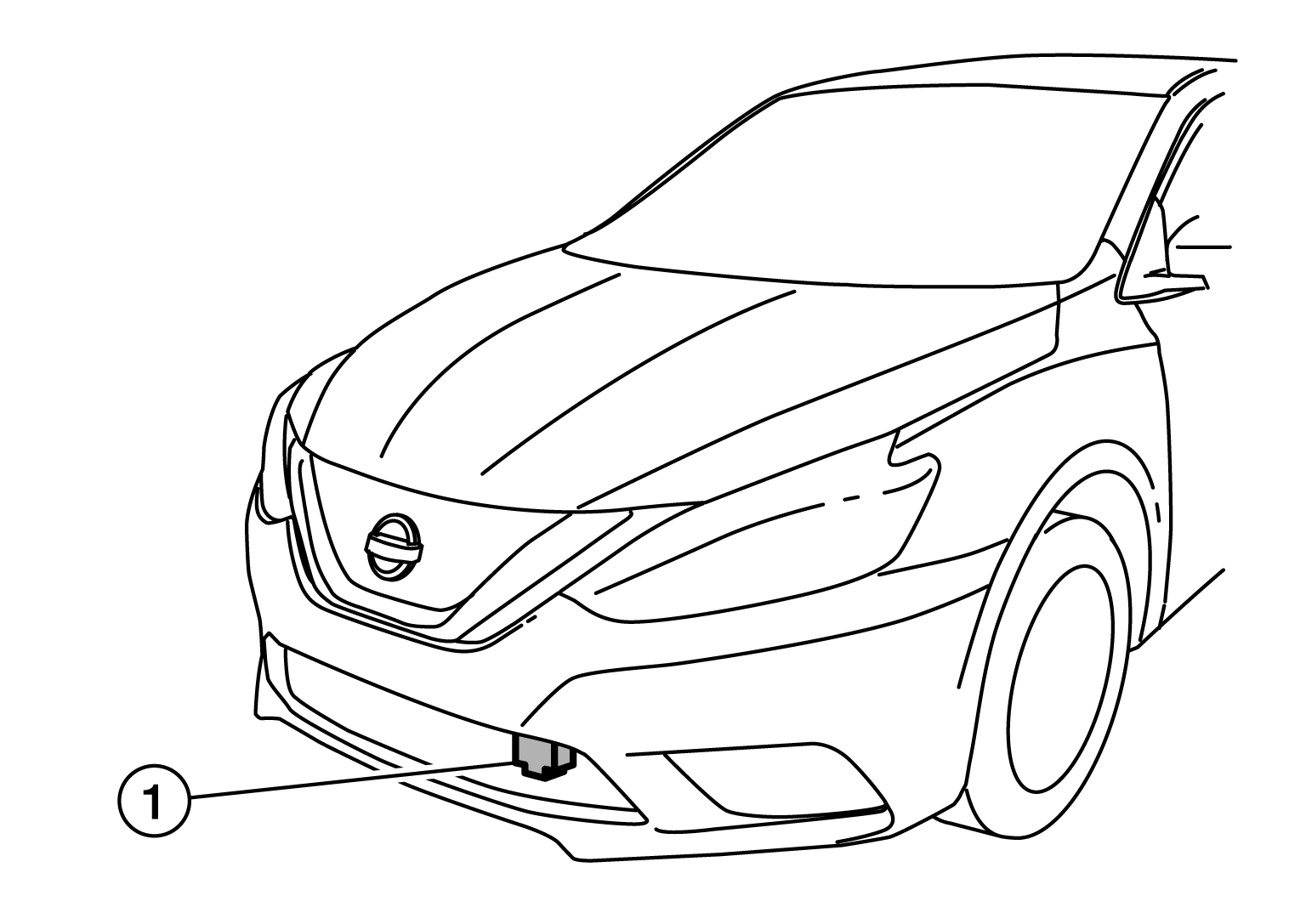

   The ICC sensor (1) is located below the left head lamp. Therefore, it should not require any cleaning.

   Courtesy of NISSAN NORTH AMERICA, INC.

   1	: ICC sensor

Refer to VEHICLE SET UP .
