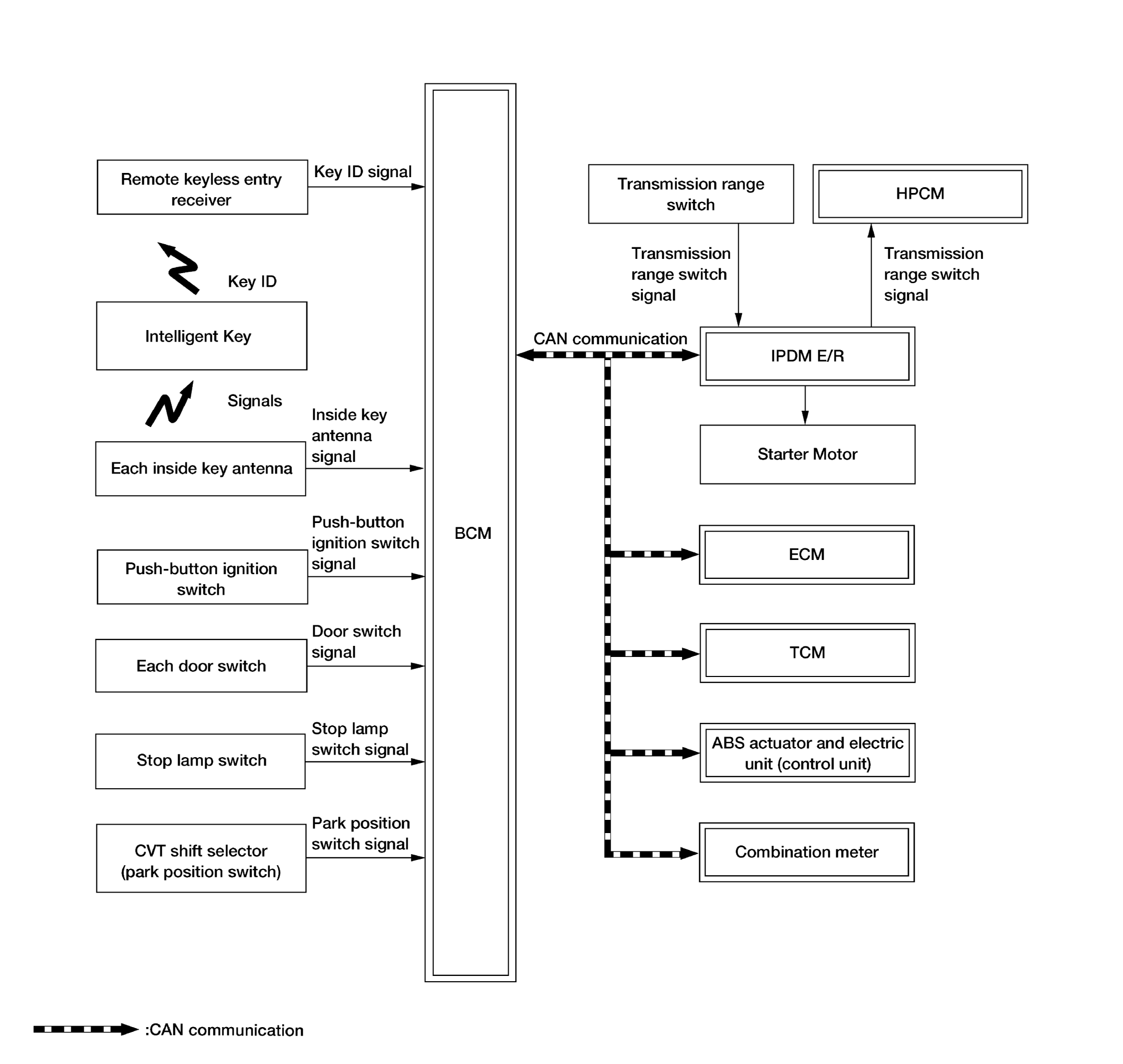

System Diagram

WARNING: This page is about a different variant/trim than selected.
GNSALKIA4692GB-692Courtesy of NISSAN NORTH AMERICA, INC.
