Exploded View

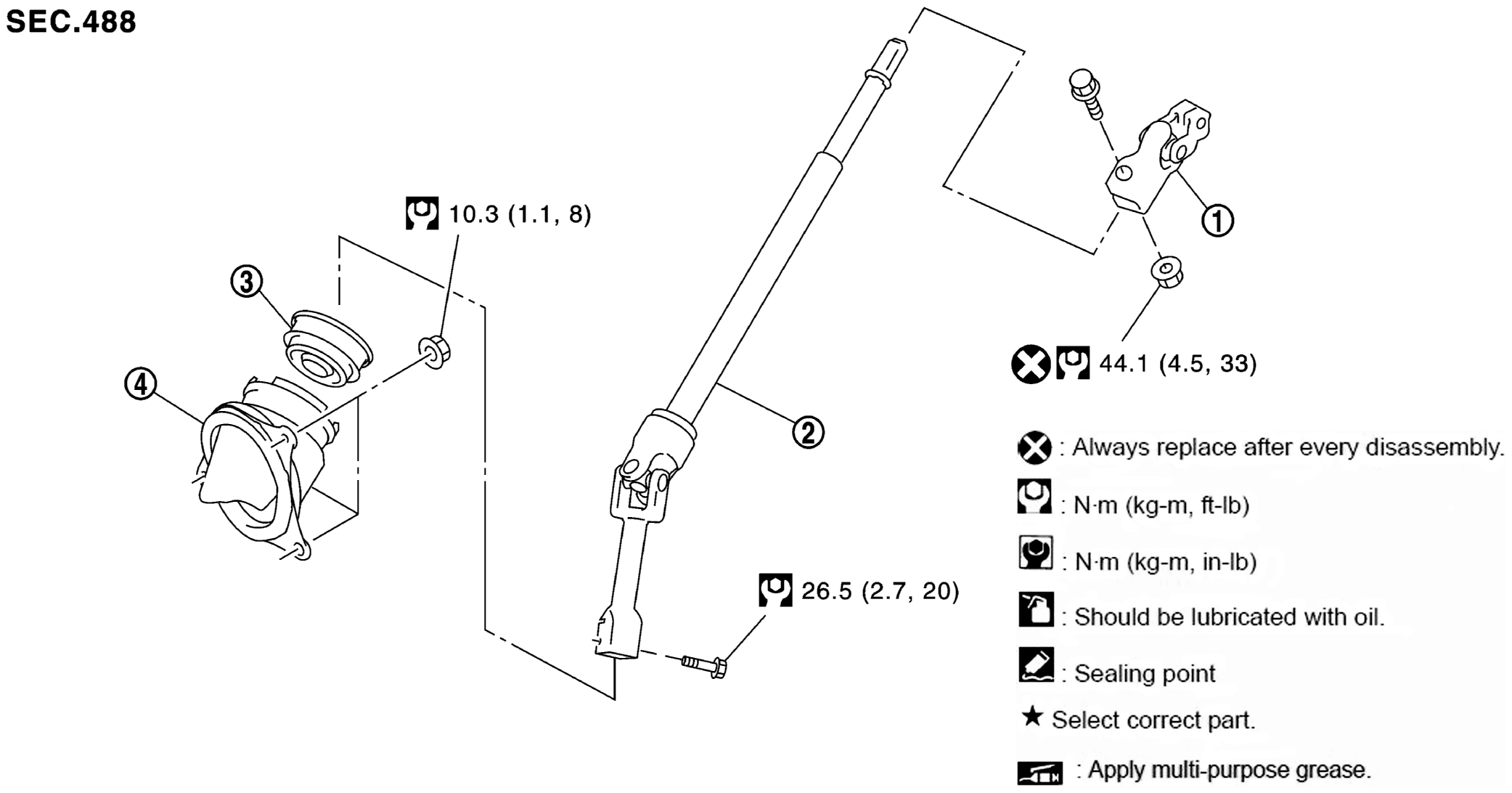

Fig 1: Steering Shaft With Torque Specifications
GNSJPGIA0150GB-150Courtesy of NISSAN NORTH AMERICA, INC.
1. Upper joint 2. Intermediate shaft 3. Hole cover seal
4. Hole cover
BOLT : N•m (kg - m, ft - lb)
DISAS : Always replace after every disassembly.
