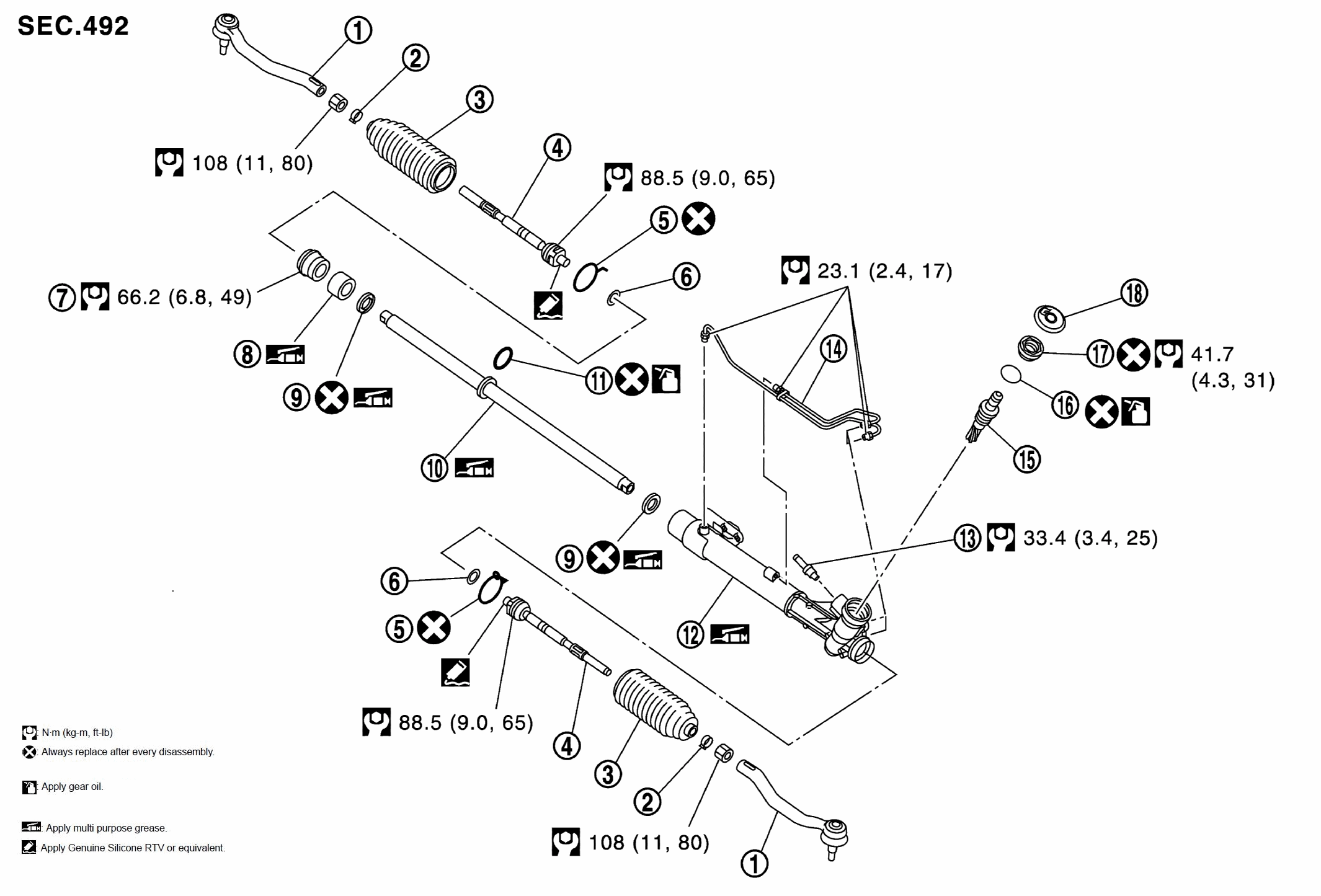

Exploded View: Disassembly

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Outer socket	2.	Boot clamp	3.	Boot
4.	Inner socket	5.	Boot clamp (stainless wire)	6.	Spacer
7.	End cover assembly	8.	Rack spacer	9.	Rack oil seal
10.	Rack assembly	11.	O-ring	12.	Gear housing assembly
13.	Low pressure piping	14.	Cylinder tubes	15.	Gear-sub assembly
16.	O-ring	17.	Rear cover	18.	Rear cover cap
: N•m (kg - m, ft - lb)
: Always replace after every disassembly.
: Apply power steering fluid. Refer to FLUIDS AND LUBRICANTS .
: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
: Apply multi-purpose grease.
