BCM (Body Control Module) Connector End View (M124)

Connector Types: TH40FW-NH

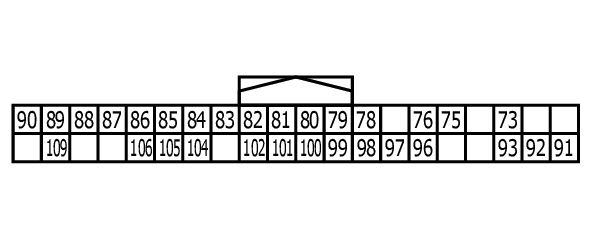

Fig 1: Terminal-side

GNSW16087

Courtesy of NISSAN NORTH AMERICA

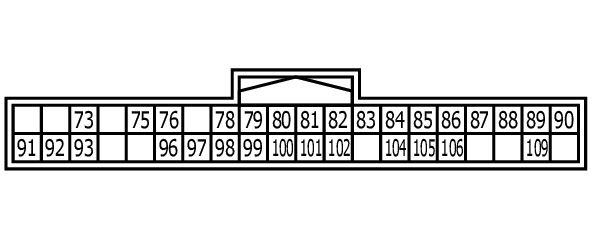

Fig 2: Harness-side

GNSW16458

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
73	G	ON IND
75	G	DR DOOR REQ SW
76	V	PUSH SW
78	B	DR DOOR ANT+
79	W	DR DOOR ANT-
80	GR	PASS DOOR ANT+
81	BE	PASS DOOR ANT-
82	G	REAR BMPR ANT+
83	R	REAR BMPR ANT-
84	GR	ROOM ANT1+
85	B	ROOM ANT1-
86	W	ROOM ANT2+
87	BE	ROOM ANT2-
88	GR	LAGGAGE ROOM ANT+
89	B	LAGGAGE ROOM ANT-
90	P	PUSH-BTN IGN SW ILL PWR SPLY
91	W	LOCK IND
92	B	PUSH-BTN IGN SW ILL GND
93	R	I-KEY WARN BUZZER
96	BE	ACC RELAY CONT OUTPUT
97	W	STARTER RELAY CONT
98	P	IGN RELAY (IPDM E/R) CONT
99	G	IGN RELAY (F/B) CONT OUTPUT
100	R	PASS DOOR REQ SW
101	R	IGN PWR SPLY 2
102	P	P/N POSITION
104	L	CVT SHIFT SELECT PWR SPLY
105	R	STOP LAMP SW 2
106	O	BLWR RELAY CONT OUTPUT
109	R	ACC IND
