Disassembly And Assembly: Notes

VQ40DE ENGINE

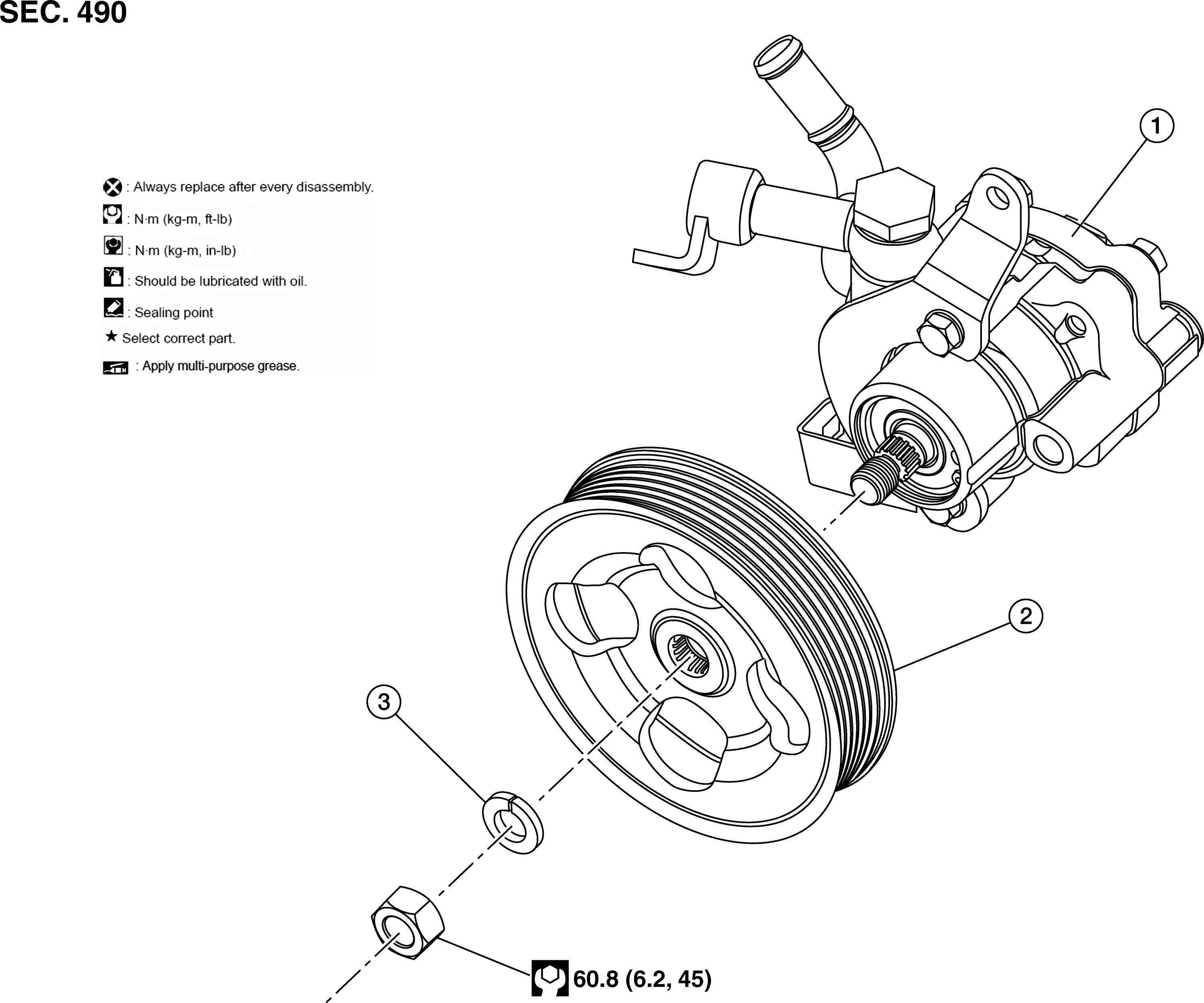

GNSALGIA0093GB-093Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering pump 2. Pulley 3. Lock washer
